Stainless steel / Aluminum / Titanium MIG Arc Welding Robot for Motorcycle frame

Stainless steel / Aluminum / Titanium MIG Arc Welding Robot for Motorcycle frame

DESCRIPTION

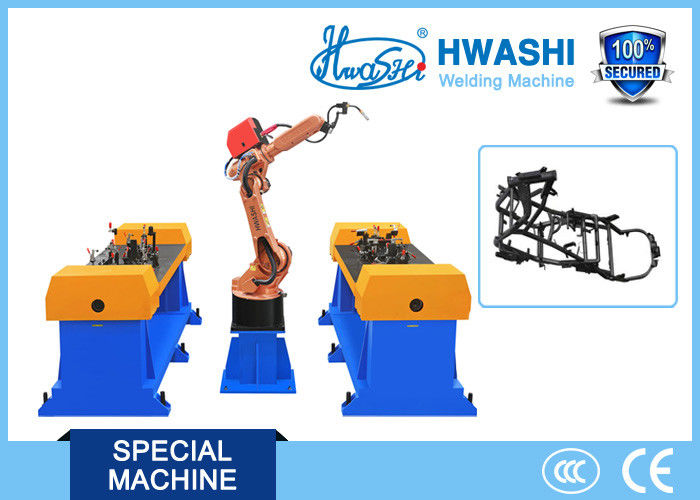

This welding robot system consists of welding robot , MIG welder , welding gun cleaner and positioners with jigs for motorcycle frame.

Six-axis articulated robots offer longer reaches  and can handle higher payloads. They are also available in configurations that allow operation in specific environments. Outstanding features include:
Fast cycle times from 0.59 to 0.49 sec.
Excellent repeatability from ±0.03mm to ±0.02mm
Payloads up to 8 kg
Reaches 1400 mm

1. Welding system: Panasonic MIG or TIG welding machine with automatic wire feeding system. Stable performance.

2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.

3. Welding gun system: famous brand TBI welding gun.

4. Welding gun cleaning and wire cutting system: TBI brand.

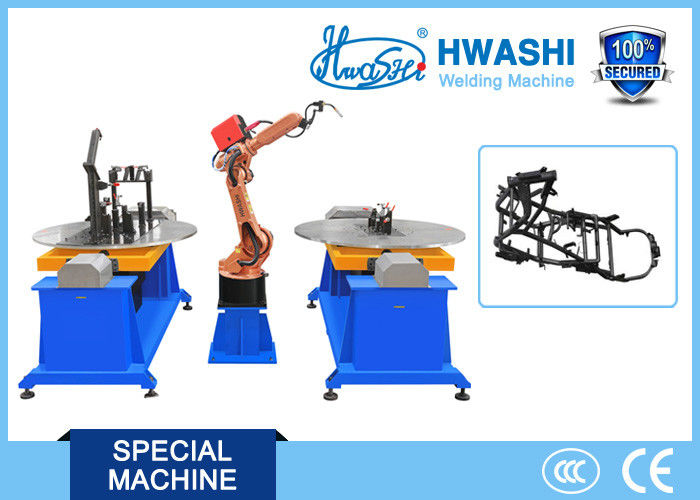

5. Working station positioner: It is designed with two sets of working table. Single table could achieve 360⁰ rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.

6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.

7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.

8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.
