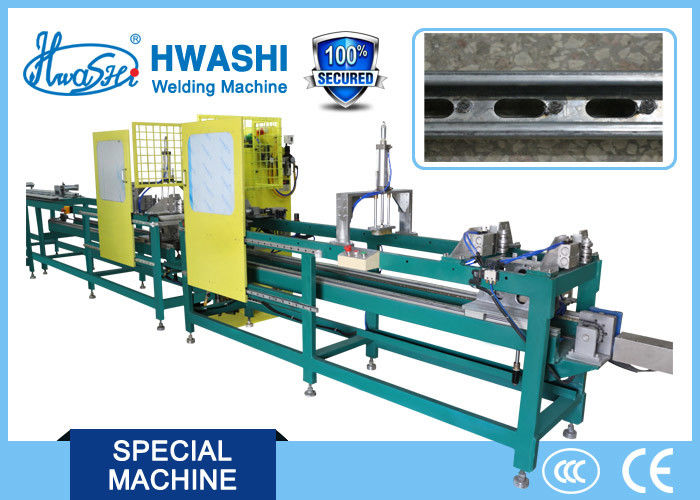

Automatic Spot Welding Machine For Welding BIS Fixing Rail With 16m Automatic Feeder

Automatic Spot Welding Machine For Welding BIS Fixing Rail With 16m Automatic Feeder

Automatic Spot Welding Machine For Welding BIS Fixing Rail With 16m Automatic Feeder

Product Details:

Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-MF-90K

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Automatic Spot Welding Machine For Welding BIS Fixing Rail With 16m Automatic Feeder Application: Welding For Fixing Rail
Size: 680x1300x16000mm Condition: New
Warranty: 12 Months Standard: CE/CCC/ISO
Service Life: 8-10 Years Duty Cycle Rate: 20%
Rated Power: 90KVA

Automatic Spot Welding Machine For Welding BIS Fixing Rail With 16m Automatic Feeder





DESCRIPTION

Adopt automatic feeder to fix and drive Fixing Rail for welding. According to the preset moving distance, the machine will do welding while the feeder moves automatically. The total length of the feeder is 16400mm while the width is 300 mm. Adopt servo motor mobile methods. The moving distance could be adjusted according to your requirement.





WORKING PROCESS

1.Load the parts of fix rail into the feeder manually or by lifting machine.

2.The parts of fix rail will be stacked up according to requirement.

3.Afterwards, start welding program to finish the first spot welding.

4.Then the servo motor will move forward according to the preset data;

5.The machine will keep cycle working and it will stop when finishing the last spot welding;

6. After welding process, the locating check block cylinder, hole fixing cylinder and side pressing cylinder will reset.

7. You may take out the work piece manually or by lifting machine.



SPECIFICATION



No. Item WL-MF100K
1 Input Voltage 380V three-phase
2 Input Current 130A
3 Air Switch 150A
4 Power Line(Copper Line) 25mm ²
5 Output Voltage DC9.2V
6 Max Welding Current 28kA
7 Welding Model 101 types
8 Different Welding Current 101 types
9 Mobile Feeder Length 16400mm
10 Feeder Moving Speed 800mm/sec
11 Feeder Moving Force Servo Motor
12 Cooling Water Pressure ≤0.2MP
13 Cooling Water Flow 20L/min
14 Cooling Water Temperature ≤20℃
15 Dimension of Machine 1200mmx16400mm







APPLICATION

Fixing rail welding for rail supporting system.







COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







          Automatic Spot Welding Machine For Welding BIS Fixing Rail With 16m Automatic Feeder







         Automatic Spot Welding Machine For Welding BIS Fixing Rail With 16m Automatic Feeder





Automatic Spot Welding Machine For Welding BIS Fixing Rail With 16m Automatic Feeder
