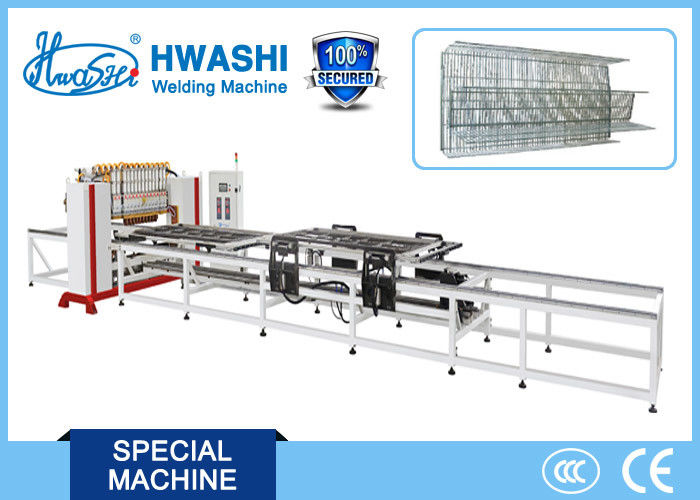

Automatic Storage Shelving Wire Welding Machine , Display Stand Wire Spot Welder

Automatic Storage Shelving Wire Welding Machine , Display Stand Wire Spot Welder

Automatic Storage Shelving Wire Welding Machine , Display Stand Wire Spot Welder

Product Details:

Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-SQ-150Kx2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Automatic Wire Storage Shelving Welding Machine , Display Stand Wire Spot Welder Application: Welding Of Wire Mesh For Furniture, Wire Shelving,Storage Shelving
Size: 8 00x2400x1850mm Weight: 2500kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years

Automatic Wire Storage Shelving Welding Machine , Display Stand Wire Spot Welder



DESCRIPTION



Spot Welding System
Adjusting the up compressed cylinder, electrodes, and fixture based on the wire pitch. Possible individually set welding time and current.



Power Source System: Adopt 2 sets of 150KVA special resistance welding transformer as the welding power source. Continuous duty cycle rate is 25%; The executive standard is GB/15578-2008; the magnetic permeability of forced temperature control cooling water silicon steel sheet is larger than 12000GS; special cooling water subloop; It can ensure the output welding current of the whole machine is constant and powerful in order to obtain high quality, high efficiency, stable welding spots.


Output Installation
Equipped with servo motor and gripping pliers to adjust the required pitch, carry the welded mesh to next work station.

Controlling System
Equipped with man-machine interface windows based for the use of P.L.C, all the parameters and figures set on the screen. Easy for operators running and maintenance.



Application:
Wire mesh for furniture, wire shelving, industrious mesh, grill, shopfitting, Mesh Decks, Shop Fittings Products, Pallet Cages, Display Equipment, Stillage Mesh, Box Trailer Sides, Box pallet, Display stand, Storage shelving, Material containers, Tool racks, Storage and wareshousing.



TECHNICAL PARAMETERS



No. Item Data
1 Input Voltage 380V two-phase
2 Input Current 400A
3 Output Voltage AC12V
4 Max Short Circuit Current 45000A
5 Welding Models 30 types
6 Welding Positions 5000 point
7 Different Welding Current 8 types
8 Welding Effective Width 2000mm
9 Welding Effective Length 1800mm
10 Feeder Moving Speed 100mm/sec-800mm/sec
11 Feeder Moving Force Servo Motor
12 Upper Welding Cylinder 10(¢100x80mm)
13 Lower Welding Cylinder 2(¢125X50mm)
14 Fixture Feeder 2




COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO 9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
