IBC Tank Cage Spot Welding Machine , Pipe Bage Auto Welding Machine

IBC Tank Cage Spot Welding Machine , Pipe Bage Auto Welding Machine

IBC Tank Cage Spot Welding Machine , Pipe Bage Auto Welding Machine

Product Details:

Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-MF-90Kx3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 45 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: IBC Tank Cage Spot Welding Machine , Pipe Bage Automatic Welding Machine Application: Welding IBC Tank Pipe Cage
Size: 2000x2000x1600mm Weight: 1500kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years

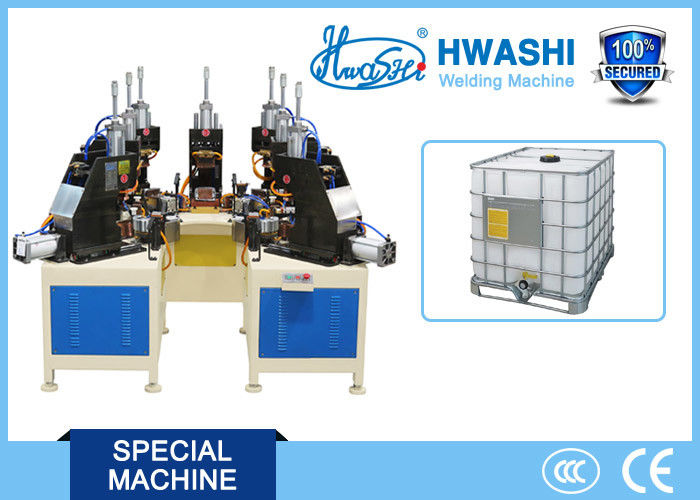

IBC Tank Cage Spot Welding Machine , Pipe Bage Automatic Welding Machine



DESCRIPTION

This special automatic welding machine for welding IBC tank tubular frame. IBC intermediate bulk container is an essential tool in modern storage, liquid transportation. The IBC tank is composed of inner container and metal frame. The metal frame is made of bended tubular mesh.

  • Main Body:Adopt the reinforced special design steel structure body with gantry type structure. According to the sample, it is designed gantry type stucture with 6 groups of welding heads. Maximum welding width is 1000mm while the feeder length is 4000mm. It adopts reasonable stress center of gravity to ensure the stable intensity of the main body when conducting fast speed welding. At the meantime, it could provide stress supporting point and working platform for other actions.
  • Power Source System: Adopt 3 sets of 90KVA medium frequency inverter welding source. Maximum short circuit current is 21000A. Duty cycle rate reaches 25%. The three-phase power supply is under rectifying through a special inverter and converted to1000Hz AC voltage and then be transmitted to a medium frequency transformer to be rectified so as to provide DC welding current. Compare with general AC pulse power supply, this kind of power source could be fast and precisely adjusted. Small impact to the power grid and lower requirement for the power grid compare with the single-phase welder of the same capacity.
  • Welding Control System: Adopt the self-developed intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface. Automatic testing and compensation which could guarantee the situation that the machine will be at work only when the current value is in the preset data so as to ensure the stability of welding effect and effective prevention of undesirable phenomena like loose welding and cold joint. The features of quick response and high precision of control may help you obtain high quality of welding spots.



TECHNICAL PARAMETERS



No. Model WL-SQ-MF90Kx3
1 Input Power Three-phase
2 Rated Capacity 90KVAx3
3 Rated Input Current 300A
4 Rated Duty Cycle Rate 25%
5 Secondary Voltage Adjusting Grade 2
6 Max Secondary Floating Voltage 12.5V
7 Secondary Max Short Circuit Current 26KA
8 Continuous Working Current 20KA
9 Welding Transformer Insulation Grade F
10 Welding Machine Pressuring Curves 2 types
11 Welding Programs Number 101 types
12 Welding Head 6 sets







             IBC Tank Cage Spot Welding Machine , Pipe Bage Auto Welding Machine











IBC Tank Cage Spot Welding Machine , Pipe Bage Auto Welding Machine





IBC Tank Cage Spot Welding Machine , Pipe Bage Auto Welding Machine





IBC Tank Cage Spot Welding Machine , Pipe Bage Auto Welding Machine
