Product Details:

Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-SP-150K

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Four-head Pneumatic Wire Welding Machine, Wire Shelf Manual Spot Welding Machine Application: Welding Of Wire Mesh
Size: 1200x1180x1850mm Weight: 500kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years



Four Head Pneumatic Wire Welding Machine , Wire Shelf Manual Spot Welding Machine





DESCRIPTION

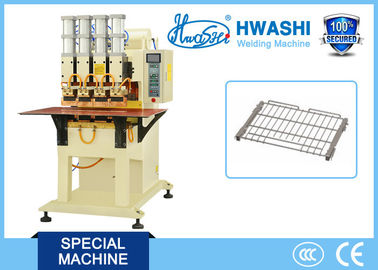

This spot welding machine adopts 4 welding electrodes. The operator only needs to put the material onto the fixture/jig and press foot pedal, then the machine will conduct welding .



This machine is suitable for wire mesh within 650x650mm.



Power Source System: Adopt 1 set of 150KVA special resistance welding transformer as the welding power source. Continuous duty cycle rate is 50%; the output current is larger than 38000A. The executive standard is GB/15578-2008; the magnetic permeability of forced temperature control cooling water silicon steel sheet is larger than 12000GS; special cooling water subloop; It can ensure the output welding current of the whole machine is constant and powerful in order to obtain high quality, high efficiency, stable welding spots.





Welding Method: It is designed with multipoint welding method. Equipped with four welding electrodes. The upper electrode could move. The lower electrode is designed as a large flat table to ensure large current on welding work piece. Then the stability of welding spots could be guaranteed.







SPECIFICATION

No. Item Data
1 Input Voltage 380V two-phase
2 Input Current 400A
3 Output Voltage AC11.6V
4 Max Short Circuit Current 38000A
5 Welding Models 16 types
6 Welding Positions 5000 point
7 Different Welding Current 8 types
8 Welding Effective Width 650mm
9 Welding Effective Length 650mm
10 Upper Welding Cylinder 4(¢100x80mm)
11 Lower Welding Cylinder 1(¢125X50mm)



APPLICATION

Continuing welding of row shape and metal wire mesh.



COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
