AC Servo Driving 6 AXIS Industrial Robots , CNC Robotic Welding Machine For Jerrycan

AC Servo Driving 6 AXIS Industrial Robots , CNC Robotic Welding Machine For Jerrycan

AC Servo Driving 6 AXIS Industrial Robots , CNC Robotic Welding Machine For Jerrycan

Product Details:

Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: HS-RAW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: HWASHI 6 Axis Industry CNC Robotic Welding Machine For Jerrycan Application: Automatic Mig Seam Welding For Jerrycan
Size: 600x1300x1700mm Condition: New
Warranty: 12 Months Standard: CE/CCC/ISO
Service Life: 8-10 Years Driving Mode: AC Servo Driving
Repeat Positioning Accuracy (mm): ±0.05


AC Servo Driving 6 AXIS Industrial Robots , CNC Robotic Welding Machine For Jerrycan

SPECIFICATION

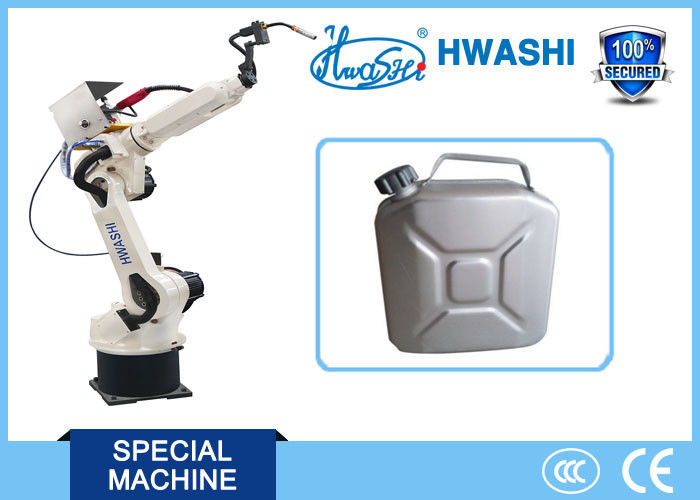

This welding robot is designed for welding steel jerrycan. Adopt 6 axis robot with Panasonic MIG  welder for automatic welding. Use fixture to fix the jerrycan and ensure the location requirement for robotic automatic welding.



We can customized the welding rotate positioner for you.The positioner can rotate 360 degree automatically.


   AC Servo Driving 6 AXIS Industrial Robots , CNC Robotic Welding Machine For Jerrycan



AC Servo Driving 6 AXIS Industrial Robots , CNC Robotic Welding Machine For Jerrycan

AC Servo Driving 6 AXIS Industrial Robots , CNC Robotic Welding Machine For Jerrycan

Technical Parameter:

ItemsParameters
ModelHS-06RH
Degrees of Freedom6
Driving MethodAC servo driving
Max. Payload8kg
Repeated Positioning Accuracy±0.05mm
Motion RangeJ1Axis±170°
J2Axis+120°~ -85°
J3Axis+85°~ -165°
J4Axis±180°
J5Axis±135°
J6Axis±360°
Max. SpeedJ1Axis2.27rad/s, 130°/s
J2Axis2.27rad/s, 130°/s
J3Axis2.27rad/s, 130°/s
J4Axis3.93rad/s, 225°/s
J5Axis2.53rad/s, 145°/s
J6Axis6.98rad/s, 400°/s
Allowed TorqueJ4Axis12N.m
J5Axis10N.m
J6Axis8N.m
EnvironmentTemperature0℃~55℃
Humidity20%~80%(No frost)


World Class Speed Robot

  • Robot arm model: HS-RAW08, be able to lift 8kg of item. The motion radius is 1437mm which means the maximum reaching distance is 1437mm. Front and back distance could reach 1033mm. Six-axis movement.

HS-RAW Series robot improves the accuracy and efficiency

  • Improved drives and motors for accurate positioning and better repeatability.
  • Slim and compact design allows closer installation in less floor space.
  • Maintainability is improved with easier inspections and parts replacement.


APPLICATION

Used to automatic Mig seam welding for jerrycan .


COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
