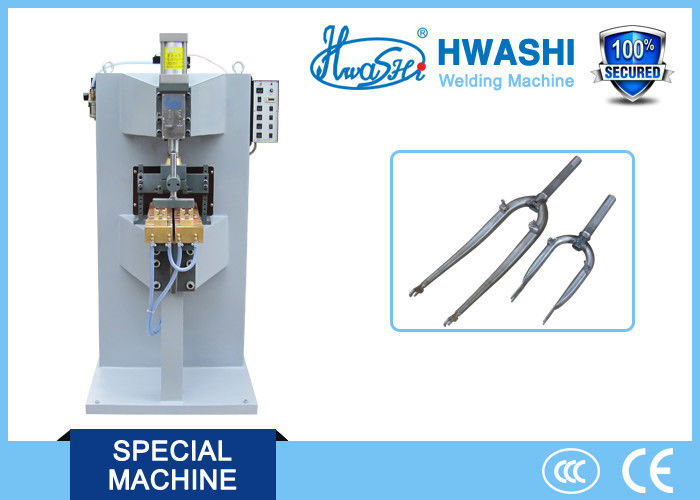

Bicycle Frame Pneumatic Spot Welding Machine , AC Water-Cooling Spot Welder

Bicycle Frame Pneumatic Spot Welding Machine , AC Water-Cooling Spot Welder

    • Bicycle Frame Pneumatic Spot Welding Machine , AC Water-Cooling Spot Welder
    • Bicycle Frame Pneumatic Spot Welding Machine , AC Water-Cooling Spot Welder
  • Bicycle Frame Pneumatic Spot Welding Machine , AC Water-Cooling Spot Welder

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-SP-100K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Bicycle Frame Pneumatic Spot Welding Machine , AC Water-Cooling Spot Welder Application: Welding Of Bicycle Frame
    Size: 1200x900x1800*mm Weight: 200-700kg
    Condition: New Warranty: 12 Months
    Standard: CE/CCC/ISO Service Life: 8-10 Years

    Bicycle Frame Pneumatic Spot Welding Machine , AC Water-Cooling Spot Welder





    DESCRIPTION



    This machine is specially designed for welding bicycle frame and front fork.



    Pneumatic AC pulse spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved. It can be used to weld 10mm of iron and metals like stainless steel. Applicable to all kinds of hardware. Powerful and strong welding current and precise current control. In order to welding different thickness of products, conduction angle of silicon controlled rectifier is divided into 1000 parts for asjusting. Using digital integrated circuit control, strong anti-interference ability, stable and reliable work. Control circuit calls the built-in voltage fluctuation compensation circuit, which can guarantee the power supply fluctuation within + 15% range in a timely manner to make current compensation, ensure stable welding current.








    FEATURE

    1. Special design integration of pressurized cylinder which can ensure stability and mobility of pressurized and welding speed.
    2. Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation.
    3. Upper and lower electrode adopt supplementary stroke pressurized mode which can improve the operability of welding process.
    4. Pressurized electrode speed can be adjusted, slow down the impact to welding work piece when pressuring , also reduces the noise when welding.
    5. Inrease welding stability. It can be used to preheat, to weld, to reform or to temper for special materials; Solve the problems of void welding or loose welding due to current shunt during the process of multiple projection welding. WD-10AC Controller : Digital circuit; Codes dialing regulating; Single discharge; When the voltage of power supply is fluctuated, it can automatically compensate the current to weld; Possesses the function of current climbing and the gradually increased current can effectively curb or reduce the welding splash.

    SPECIFICATION





    Model

    Input Voltage

    V

    Rated Power

    KVA

    Max. Short Circuit Current

    KA

    Duty Cycle

    Electrode Pressure

    KG

    Electrode Stroke

    mm

    Cooling Water

    L/min

    WL-S-5K 220 5 5 25 30 25 6
    WL-S-10K 380 1PH 10 8 25 100 50 6
    WL-S-16K 380 1PH 16 10 25 100 50 6
    WL-SP-25K 380 1PH 25 15 25 350 80 8
    WL-SP-35K 380 1PH 35 18 25 350 80 8
    WL-SP-50K 380 1PH 50 21 25 800 100 8
    WL-SP-75K 380 1PH 75 28 25 1000 100 8
    WL-SP-100K 380 1PH 100 31 25 1000 100 10
    WL-SP-150K 380 1PH 150 34 25 1000 100 10
    WL-SP-200K 380 1PH 200 38 25 1500 100 12
    WL-SP-250K 380 1PH 250 42 25 1500 100 12
    WL-SP-300K 380 1PH 300 46 25 2000 100 16
    WL-SP-400K 380 1PH 400 60 25 2000 100 20




    APPLICATION

    Iron wire products, hardware decorative lighting, kitchen utensils, automobile industry, small household appliances, small hardware, etc.



    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
