Place of Origin:
Guangzhou Hwashi Technology INC
Brand Name:
Hwashi
Model Number:
WL-SQ-100Kx2
Contact Us
Description

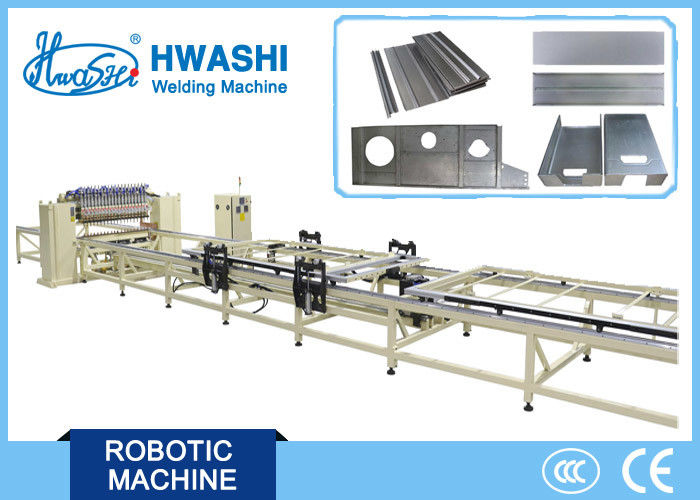

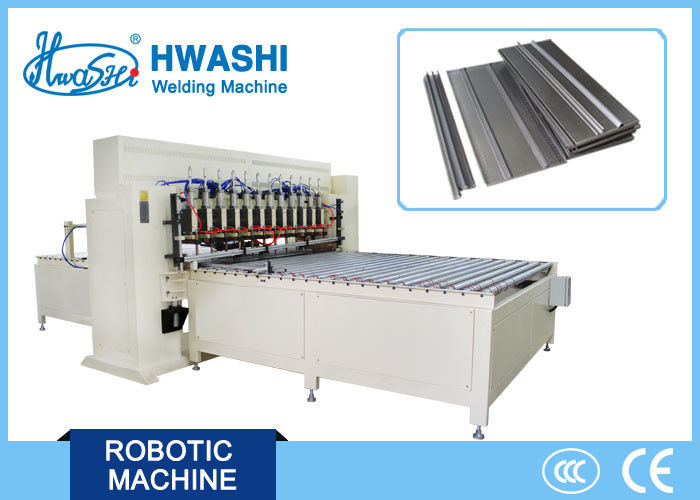

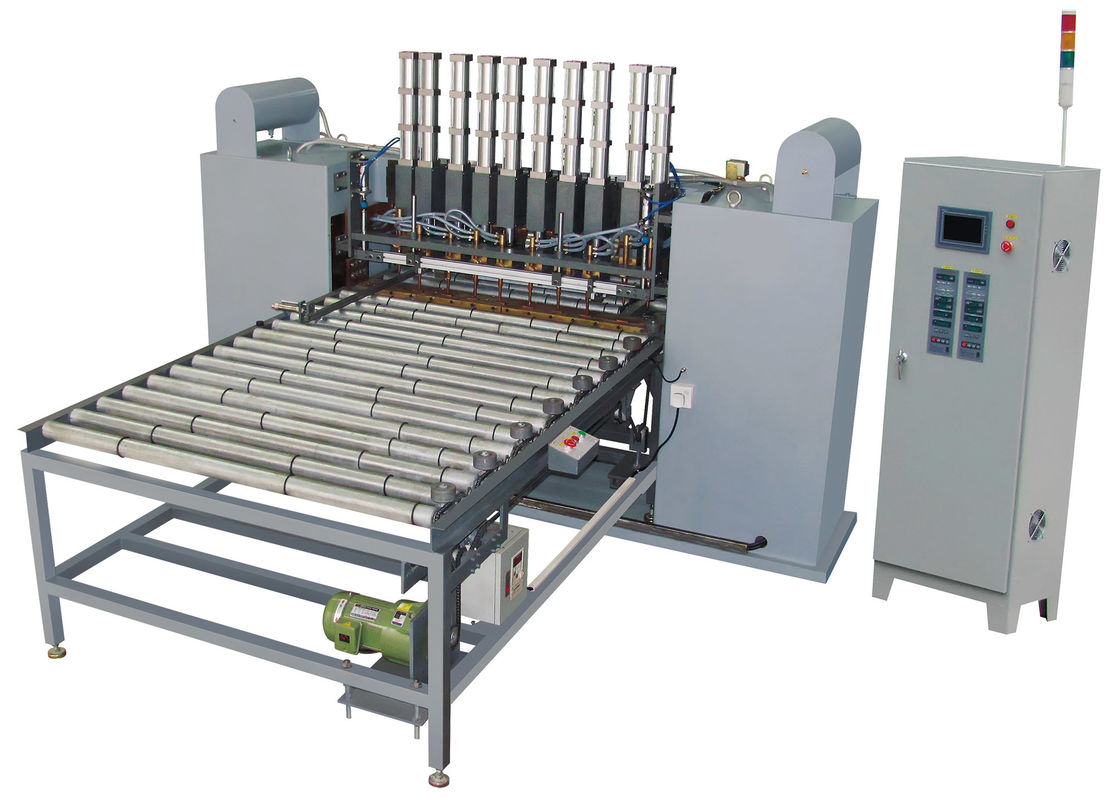

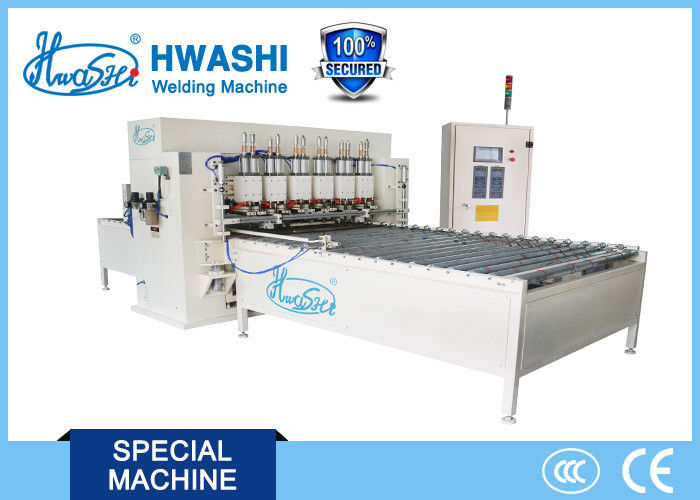

Sheet metal Gantry type multipoint spot welding machine is composed of gantry type machine rack, welding transformer , pneumatic transmission device, electrial control system, cooling system and PLC touch screen operation contrel system.
HWASHI Gantry Type Wire Mesh Spot Welding Machine
Features
Adopt the self-developed intelligent microcomputer quick response touch controller, all-digital contral, simple and clear oprational interface. Except for manual loading, coded servo motoer feeding system could be available with quick resonse and high efficency.
Application
This machine is mainly applied to welding the low carbon steel, low steel alloy , stainless steel, galvanized steel, sheet metal and round steel which are not easy welding with general welding machine. Widely applied to industries in automobile ,sheet metal, security door, cabinet , household appliances,etc.
Parameters
| Input Voltage | 380V |
| Power | 100KVA |
| Welding Power | Three-phase Medium Frequency DC Power |
| Output Voltage | DC5.5V |
| Max Short Circuit Current | 30KA |
| Effective Welding width | 2400mm |
| Welding Thickness | 1.2mm+1.2mm |
| Welding Point Distance | 100Max |
