Industrial Tig Mig Spot Welding Robots 0.05mm Repeated Positioning Accuracy For Auto Parts

Industrial Tig Mig Spot Welding Robots 0.05mm Repeated Positioning Accuracy For Auto Parts

    • Industrial Tig Mig Spot Welding Robots 0.05mm Repeated Positioning Accuracy For Auto Parts
    • Industrial Tig Mig Spot Welding Robots 0.05mm Repeated Positioning Accuracy For Auto Parts
  • Industrial Tig Mig Spot Welding Robots 0.05mm Repeated Positioning Accuracy For Auto Parts

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: HWASHI
    Certification: CCC
    Model Number: HS-R6-08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 10000-20000 set / sets
    Packaging Details: wooden packing
    Delivery Time: 15 days
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Name: Industrial Tig Mig Welding Robot For Auto Parts Payload: 8kg
    Max Reaching Distance: 1437mm Min Reaching Distance: 404mm
    Front And Back Motion Range: 1033mm Repeated Positioning Accuracy: Within ±0.05mm
    Servo Motor: 3400W Weight: 180kg
    MIG Welder: Panasonic YD-350GR3 Color: Blue

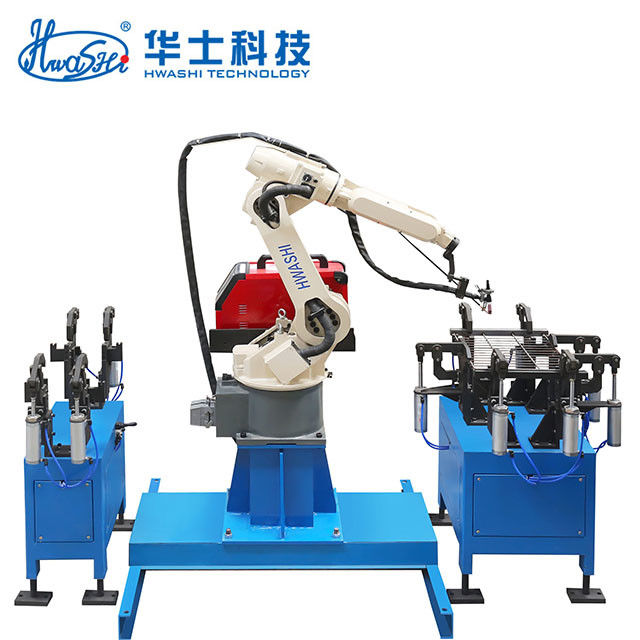

    Automatic Industrial Tig Mig Welding Robot for Auto Parts



    1. Welding system: Panasonic MIG or TIG welding machine with automatic wire feeding system. Stable performance.

    2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.

    3. Welding gun system: famous brand TBI welding gun.

    4. Welding gun cleaning and wire cutting system: TBI brand.

    5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600 rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.

    6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.

    7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.

    8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.





    Automatic Industrial Tig Mig Welding Robot for Auto Parts

    Automatic Industrial Tig Mig Welding Robot for Auto Parts







    Automatic Industrial Tig Mig Welding Robot for Auto Parts
