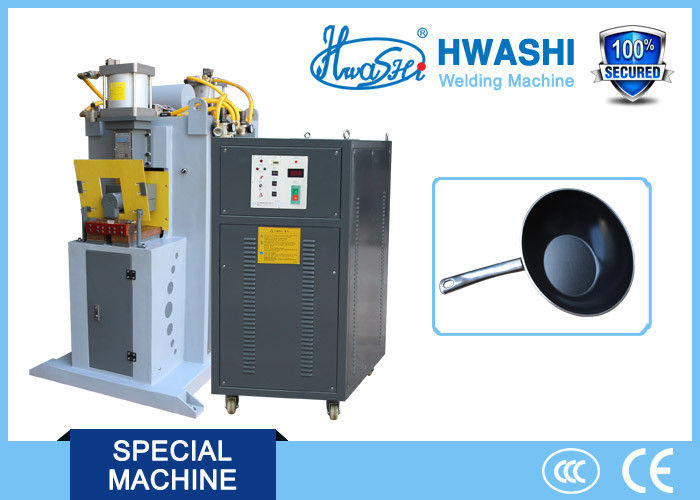

Pneumatic AC Pulse Spot Capacitor Discharge Welding Machine WL-SP-100K For Kitchen Utensils

Pneumatic AC Pulse Spot Capacitor Discharge Welding Machine WL-SP-100K For Kitchen Utensils

    • Pneumatic AC Pulse Spot Capacitor Discharge Welding Machine WL-SP-100K For Kitchen Utensils
    • Pneumatic AC Pulse Spot Capacitor Discharge Welding Machine WL-SP-100K For Kitchen Utensils
    • Pneumatic AC Pulse Spot Capacitor Discharge Welding Machine WL-SP-100K For Kitchen Utensils
    • Pneumatic AC Pulse Spot Capacitor Discharge Welding Machine WL-SP-100K For Kitchen Utensils
  • Pneumatic AC Pulse Spot Capacitor Discharge Welding Machine WL-SP-100K For Kitchen Utensils

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: HWASHI
    Certification: CCC CE ISO
    Model Number: WL-SP-100K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: US $1,000-2,000 / Set
    Packaging Details: wooden packing
    Delivery Time: within 20 working days
    Supply Ability: 30 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Product Name: WL-SP-100K Pneumatic AC Pulse Spot Welding Machine For Manufacturing Kitchen Utensils Input Power: 100KVA
    Electrode Stroke: 100mm Pressurization: 1000kg
    Cooling Water: 8 Lit/min Output Current: 34000A
    Function: Spot Welding Max.Welding Capacity: 5*2mm
    After-sales Service Provided: Engineers Available To Service Weight: 500kg









    g5



    Under the operation of transformer, pneumatic AC pulse spot welder utilizes the general mains supply to lower the voltage and



    increase the electric current. Such kind of loe voltage but large current will be transmitted from the electrode to the linked point of



    two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore



    generates high heat to make work pieces in molten condition. Thus, the purpose of welding the two work piece is achieved. It can



    be used to weld 10mm of iron and metals like stainless steel. Applicable to all kinds of hardware. Powerful and strong welding



    current and precise current control. In order to welding different thickness of products, conduction angle of silicon controlled



    rectifier is divided into 1000 parts for asjusting. Using digital integrated circuit, which can guarantee the power supply fluction



    within +15% range in a timely manner to make current compensation, ensure stable welding current.



    1. Multiple times of continuous discharging

    2. Be able to finish welding at one time

    3. Firm joint

    4. No black coating after welding, no oxidation

    5. Low cost

    6. No need of subsidiary materials

    7. Precise mould designed

    8. Convenient and simple all-directions adjustment

    9. Suitable for welding of multiple types of products.






    HWASHI WL-SP-75KSpot Welding Machine

    Brand HWASHI
    Model WL-SP-75K
    Input Power 75kVA
    Rated Primary Current 24000A
    Voltage 380V
    Max Welding Capacity 4.0*2mm
    Place Of Origin Guangdong China
    Dimension(L*W*H) 780×12503×1800mm
    Certification China Compulsory Certification(CCC)
    Electrode Stroke 100mm
    Weight 400kg
    Warranty 12 months



    g6





    1.Special design integration of pressurized cylinder which can ensure stability of pressurized and welding speed.



    2.Multiple same ways forced water cooling system to ensure stability and relability of long- term operation.



    3.Upper and lower electrode adopt supplementary stroke pressurized mode whic improve the operability of welding process.



    4. Pressurizd electrode speed can be adjusted, slow down the impact to welding work piecde when pressuring, also reduces the noise when welding.



    5.Increase welding stability. It caan be used preheat, to weld, to reform or to temper for speacial materials, Solve the problems of void welding or loose welding due to current shunt during the process of multiple projection welding.



    WD-10AC Controller:

    Digital circuit, dial code regulating, one time discharging. When the voltage of power supply is fluctuated, it can automatically compensate the current to weld; Possesss the fuction of current climbing and the gradually increased current can effectively curb or reduce the welding splash.



    WD-KD5 Controller:

    Intelligent microcomputer control, multiple-section of discharging. It can be used to preheat, to weld , to reform or to temper for speacial materials. Solve the problems of cold joint or loose welding due to current shunt during the process of multiple projection welding. Especially suitable for welding high-carbon steel or speacial interlayer of metal plate. Be able to memorize 15 types of welding model. When the voltage of power supply is flucated, it can automatiically compensate the current to weld.



    g7



    Suitable for spot welding or projection welding of steel plate and stainless steel sheet. Iron wire products, hardware decorative lighting, kitchen utensils, automobile industry, small household appliances, small hardware,etc.SEAM WELDING SAMPLE



    g15



    11g12
