|Place of Origin:||Guangdong, China|
|Certification:||CCC / CE|
|Minimum Order Quantity:||1 set|
|Price:||US $1,000 - 50,000 / Set|
|Packaging Details:||wooden packing|
|Delivery Time:||30 days after payment|
|Supply Ability:||30 Set/Sets per Month|
|Max.angle Of Crank Moving:||180°||Max.range Of Crank Moving:||1000mm|
|Effective Size Of Welding Platform:||800mmx800mm||Adjusting Rang Of Platform Height:||0-200mm|
1. Crank arm mobile type table welding machine is designed with multi-joint according to the priciple of mechanical arm, which can automatically or manually move in order to ensure the precise presenting position of welding spot.
2. Ac power,three-phase secondary recitifying power or medium frequency inverter power source are optional to be the welding power source.
1. The movement patterns of Crank arm mobile type table welding machine can be chosen as manual or CNC automatic mobile type.
2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated product.
3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined goood quality of slide rail, ball screw and automatic detecting system in order to complete the electrode automatic movement.Quick response, high precision of control. Automatic device adopts the X,Y axis of mobile working table, utilizing the PLC to store setting moving program. Simple and convenient setting.
4. Adopt double side single-point welding method. The lower electrode is designed as complete flate table, which is suitable for welding of flate plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spot.
Welding of metal plates, especially good for welding of computer cases, electric control cabinet, office cabinet and automobile metal plates.

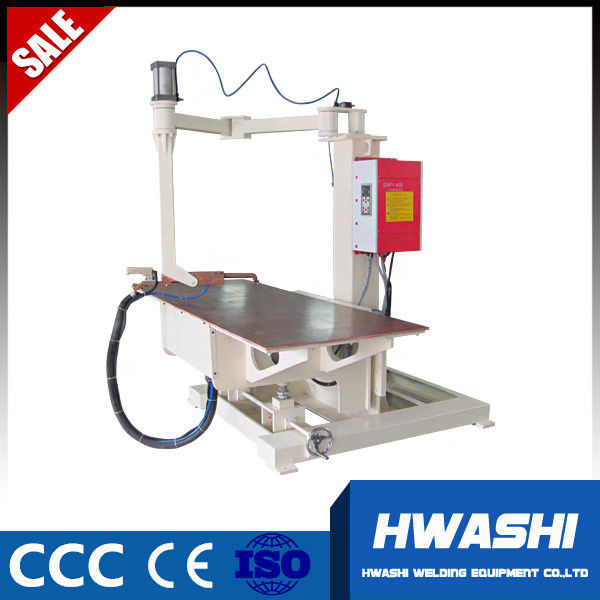

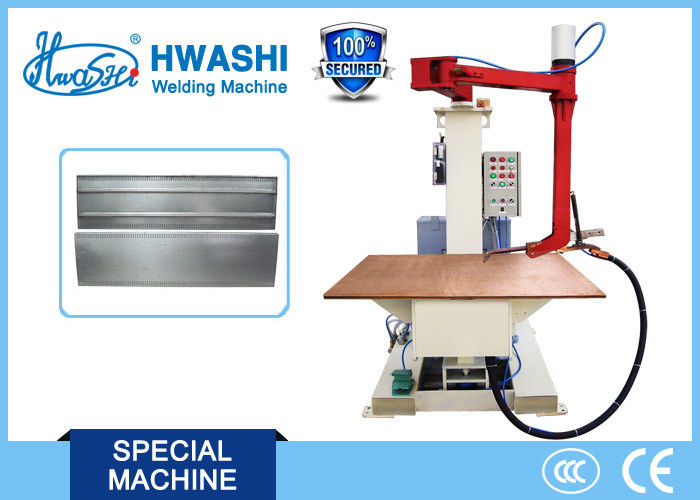

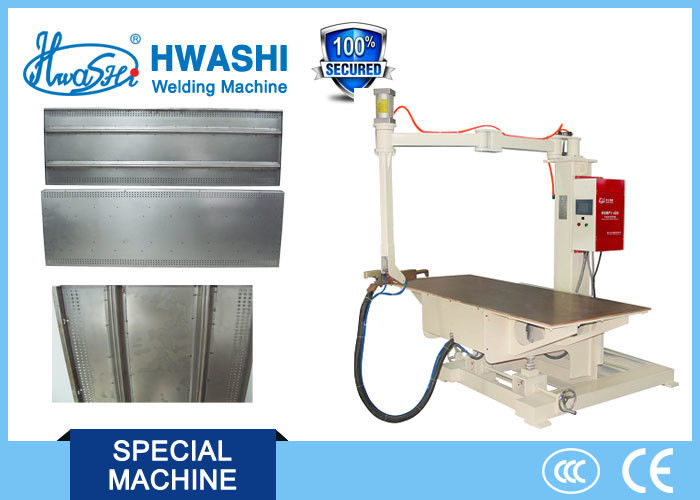

Sheet Metal Crank-Arm Mobile Type Table Welding Machine
|1||Input voltage||380V,3 phases||380V,3 phases||380V,3 phases|
|5||Welding Specification||18 kinds||18 kinds||18 kinds|
|6||Different Welding Current||6 kinds||6 kinds||6 kinds|
|7||Effective size of welding platform||800mmx800mm||800mmx800mm||2000mmx800mm|
|8||Max.range of Crank moving||1000mm||1000mm||1200mm|
|9||Max.angle of Crank moving||180°||180°||180°|
|10||Adjusting rang of platform height||0-200mm||0-200mm||0-200mm|
1. Adopt silicon controlled from SEMIKRON of West Germany or IXYS of United Stated with high precision and long service life.
2. Switzerland ABB commutating diode,stable and reliable performance.
3. It adopts American Motorola integrated circuit and Japan Panasonic PLC,quick reaction and stable performance.
4. Adopt Japan Panasonic intelligent touch screen PLC control system which is installed with automatic fault alarm system.
5. Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within±15%.
6. The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity.
7. High precision all digital control system effectively resolve the problems of cold joint or loose welding due to the current shunt in projection welding.
8. Strictly comply with CE security standard to design the machine. Lower the accident rate.
Guangdong Hwashi Technology Inc. was established in 2001. The headquater is located in Hwashi technology industrial area, huiyang, huizhou city. It is a high-tech enterprise specializing in developing, manuafacturing, and selling of resistance welding machine, automatic welding machine and industrial robot.
Hwashi has more than 20 technicians who are the experts in R&D work of electrical engineering, mechanical engineering, welding technology,quality inspection,ect. So that Hwashi has the comparehensive R&D capability of developing new product, engineering design and mold design, product inspection and test, on-site technical suppor,ect.
