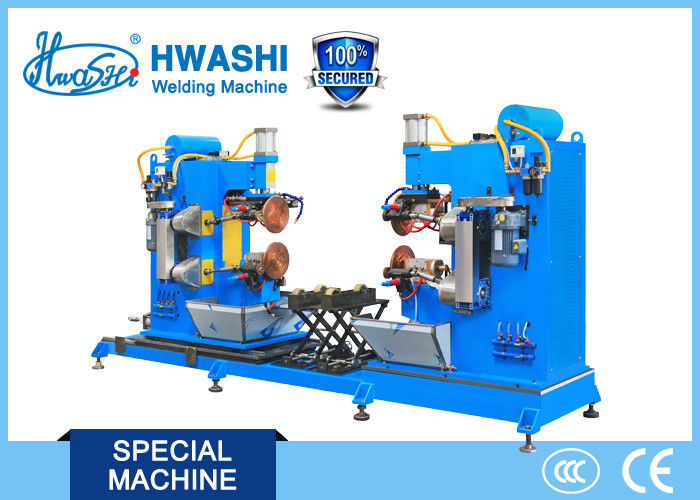

Round Steel Storage Tank Cover Circular Dual Seam Welder Machine New Condition

Round Steel Storage Tank Cover Circular Dual Seam Welder Machine New Condition

Round Steel Storage Tank Cover Circular Dual Seam Welder Machine New Condition

Product Details:

Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC\ISO
Model Number: WL-FS-MF250K

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Round Steel Storage Tank Cover Circular Dual Seam Welding Machine Application: Welding Storage Tank Cover
Size: 1910mm X1460mmx1990mm Weight: 1800kg
Condition: New Service Life: 8-10 Years

Round Steel Storage Tank Cover Circular Dual Seam Welding Machine




DESCRIPTION
This machine is specially customized for welding cover to storage tank at two-side together. Continuous welding.


1) Power is 250KVA



2) Input power is three phase 380V±10% 50Hz



3) Duty cycle is 100%, and its maximum continuous working current is 20KA



4) Welding speed :800- 5000mm/min adjustable



5) Welding thickness:0.2-2mm



6) 4 welding wheels of 320mm diameter are installed on the machine. Material is Be-Co-Cu.



7) The welding wheel grinding devices are installed separately on the upper and lower welding wheel



8) 1 set of 5 ph Water Chiller



9)The main circuit breaker will be installed on the machine



10)Two set of MF Controller be installed on the front side of the machine . We will find a method to protect the controller or panel from being moisturized due to cooling water



11)The bearings will be designed on the both sides of the welding wheel



12)The air valve and press gauge will be installed on the front side



13)The distance between the rim strip and the floor is 865mm. The height of rim strip is also the center of upper welding wheel and lower welding wheel



14)The rim strip has enough power from heavy motor to move the upper welding wheel and lower welding wheel. So we design the upper welding wheel and lower welding wheel without motor.



15)We will self-design the distance between right welding wheel and left welding wheel



16) Upper and lower welding wheels have forward-backward and up-down adjustment

And we will design flexible contactor /strips on upper and lower welding wheel





CONFIGURATION



1. Adopt intelligent microcomputer single piece controller which achieve pure digital setting. Online computer programming, LED digital display, stable performance, convenient modification of the program online.



2. Adopt digital circuit control; select the components from famous factories in the world to ensure the equipment could operate steadily in the long run.



3. Adopt intelligent microcomputer control welding system. When the voltage fluctuates, it will compensate the welding current automatically to ensure the stability of welding.



4. Adopt SEMIKRON from West Germany, IXYS and IR silicon controlled from United States. High precision, long operating life, achieve high stability control of the magnitude of current.



5. The transmission tile axis adopts the latest mercury conductive technology from abroad. State-of –the-art technology with good performance in transmission and conductivity.



6. Welding roll wheel adopts the alloy copper material from Japan. High rigidity, good conductivity.



7. The transformer adopts the high pure silicon steel sheet from Japan, good performance in magnet and electricity conductivity. Low consumption of electricity. Stronger and more stable power.



8. Welding mold and the connection of the whole machine uses the mosaic connection. Easy to be assembled and disassembled.



9. AC pulse, secondary rectifying and MF DC type of welding power source are available.









COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
