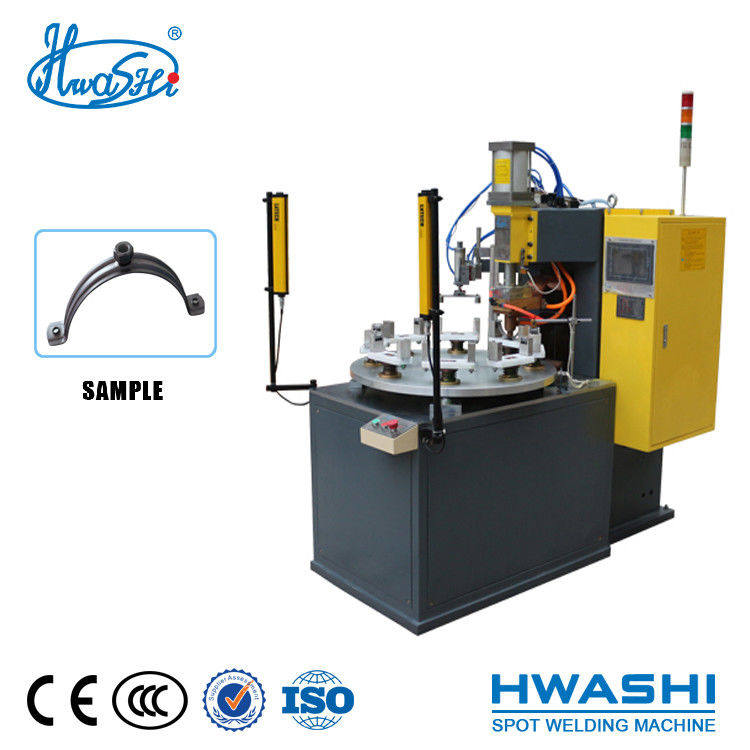

Automatic Pipe Clamp Welding Machine with Rotary Table
DESCRPTION
The machine is designed as automatic welding, automatic rotating and automatic discharging. Only need to change the fixtures (welding moulds) then the machine can achieve welding different products.
The main welding part is equipped with automatic rotating device. The operator only needs to put the work piece onto the rotary device, 8 work pieces at most for one time.
Then start “welding”, the main welding body will conduct welding. After welding the No. 1 work
piece, the rotating device will rotate, then the No.2 work piece will be moved to the welding position, cycle process will continue. In the meantime, the welded work piece will be discharged automatically one by one and the operator could keep putting new work piece onto the certain position.
SPECIFICATION
Automatic Pipe Clamp Welding Machine with Rotary Table
| No. | Item | Parameters |
| 1 | Input Voltage | 380V three-phase |
| 2 | Input Current | 150A |
| 3 | Output Voltage | DC11.6V |
| 4 | Max Short Circuit Current | 32000A |
| 5 | Welding Models | 30 types |
| 6 | Rotary Table Diameter | 800mm |
| 7 | Rotary Table Material Positions | 8 positions |
| 8 | Rotary Table Rotating Speed | 0.5m/sec |
| 9 | Welding Cylinder | ￠80X2x80mm |
| 10 | Lower Mould Cylinder | ￠160x50mm |
| 11 | Machine Dimension | 1600x1000x1650mm |
| 12 | Weight | Around 1200kg |
MATERIAL CONFIGURATION
1.Adopt silicon controlled from IXYS of United Stated with high precision and long service life.
2.Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.
3.Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system. Clear interface, easy operation, and stable performance.
4.Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within ±15%. Prompt current compensation to ensure the stable welding current of power source.
5.Adopt Taiwan TECO servo motor with powerful strength, high precision and stable control.
6.Adopt South Korea SANWO pneumatic components with stable performance.
7.The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity. Less power consumption, more powerful and stable capacity.
8.Strictly comply with CE security standard to design the machine. Lower the accident rate.
APPLICATION
Welding of pipe clamp or other metal products.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery
.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
