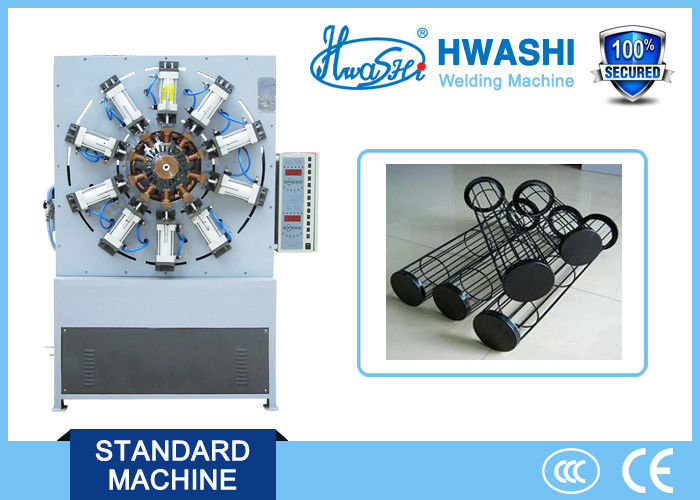

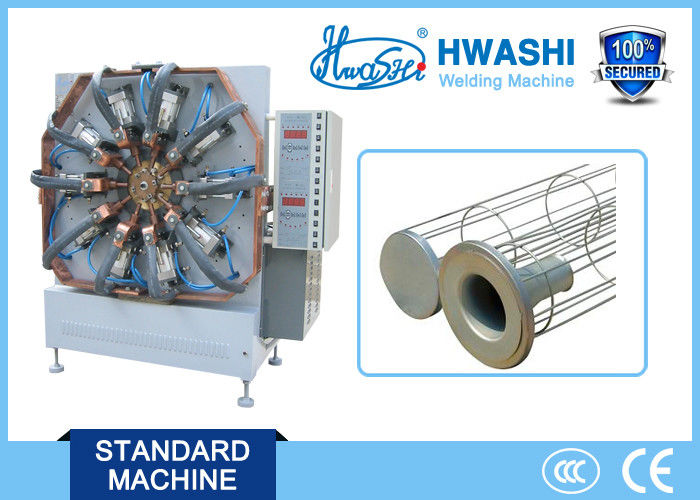

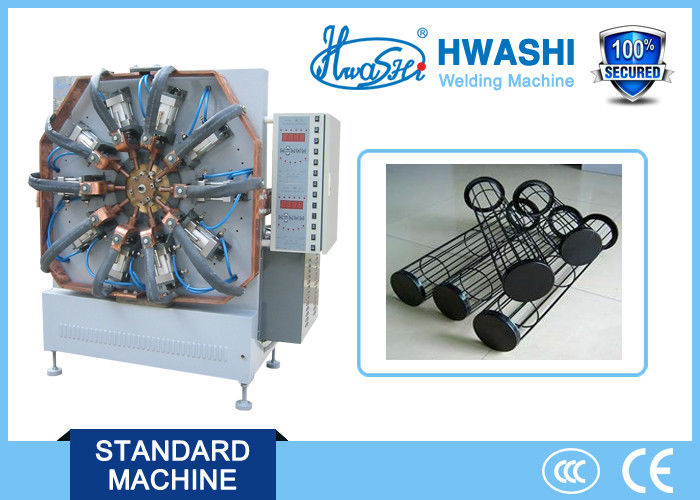

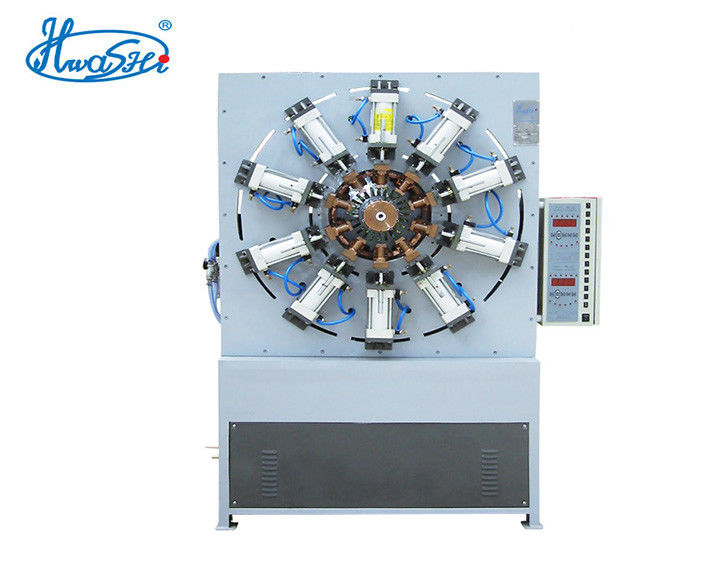

Digital Circuit Filter Cage Welding Machine With Computer Program Control

Digital Circuit Filter Cage Welding Machine With Computer Program Control

    • Digital Circuit Filter Cage Welding Machine With Computer Program Control
    • Digital Circuit Filter Cage Welding Machine With Computer Program Control
    • Digital Circuit Filter Cage Welding Machine With Computer Program Control
    • Digital Circuit Filter Cage Welding Machine With Computer Program Control
    • Digital Circuit Filter Cage Welding Machine With Computer Program Control
  • Digital Circuit Filter Cage Welding Machine With Computer Program Control

    Product Details:

    Place of Origin: China
    Brand Name: Hwashi
    Certification: CCC
    Model Number: WL-TP-75K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: US $50,000-70,000 / Sets
    Packaging Details: wooden case
    Delivery Time: 45 days after payment
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Filter Cage Welding Machine Input Power: 380V
    Stroke: 50 Secondary Current: 24000A
    Usage: Filter Bag Frame Welding Service Life: 7- 8 Years
    Warranty: 1 Year

    Hot Sales Filter Cage Welding Machine with High Quality



    Detailed Description

    • Adopts electronic digital circuit technology.
    • Possesses the function of separate spot welding, industrial computer program control. Lots of program segments, the execution time of single program and the interval between each program is adjustable.
    • It is able to control the welding time and energy correctly and finish automatic lock of piston ring. Every cylinder presses down to conduct actions like welding and separate spot welding or pushing the ring, etc. at the same time.
    • The welding power source is 50KVA-300KVA. After changing the inner mould and adjusting external cylinder and angles of welding heads, this machine could weld different kinds and different diameters of filter bag frame.
    • This machine is composed of main welder and microcomputer control cabinet.
    • Adopt single-phase secondary rectifying and three-phase secondary rectifying power source.
    •

    Digital Circuit Filter Cage Welding Machine With Computer Program Control





    g4










    Applicable Area

    Welding of preciptator skeleton of various diameters of wire rod and other shap of components. Widely applied to industries like bag filtern manufacturing factory and electricity, building material coal, metallurgy, chemical engineering, environmental protection, produce workshop filter,ect.



    Specifications

    Filter Cage Welding Machine

    Model

    Input Voltage

    (V)

    Input Power

    (KW)

    Secondary Current Stroke

    WL-TP-50K



    380V 50×1 19500A 50

    WL-TP-75K×12D



    380V 75×3 24000A 50







    Welding Sample


    .

    Production Process

    1welding machine



    Why us

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
    5. Quick Delivery: Our company provides just-in-time delivery.



    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
