Product Name: C-GIS Air Cabinet Automatic TIG Welding Robot With Wire Feeder Application: Welding For C-GIS Air Cabinet
Size: 4000x4000x1700mm Weight: 1100 Kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years

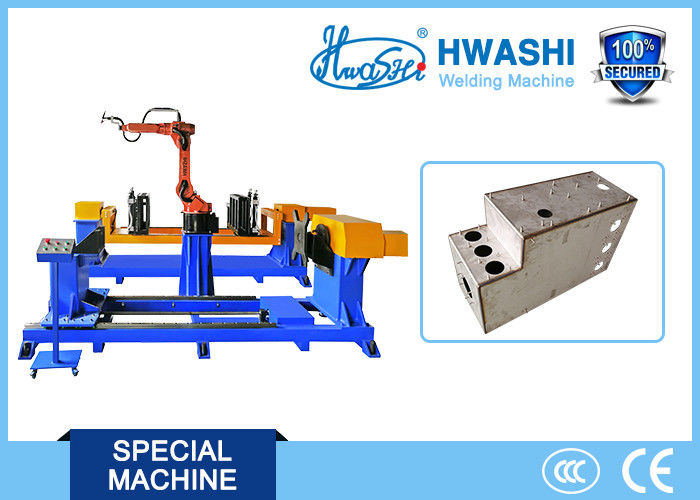

C-GIS Air Cabinet Automatic TIG Welding Robot With Wire Feeder





DESCRIPTION



This welding robot is designed for welding Steel Panel C-GIS Air Cabinet . Adopt 6 axis robot with MIG welder for automatic welding and automatic production line feeder( Tube roller type) . Use fixture to fix the steel panels and ensure the location requirement for robotic automatic welding.



Working process:

  1. Manual load the steel panels of cabinet box onto the fixture;
  2. Start welding; The welding robot and feeder will complete welding according to the setting program.
  3. Complete welding.
  4. The machine can achieve automatic welding, manual loading. Help to increase welding quality and production rate. Lower production cost so as to solve the instability, low production rate caused by manual work. Higher automation level.

COMPOSITION:

1. Welding system: Panasonic TIG welding machine with automatic wire feeding system. Stable performance.

2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.

3. Welding gun system: famous brand TBI welding gun.

4. Welding gun cleaning and wire cutting system: TBI brand.

5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.

6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.

7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.

8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.





Items Parameters
Model HS-06RH
Degrees of Freedom 6
Driving Method AC servo driving
Max. Payload 8kg
Repeated Positioning Accuracy ±0.05mm
Motion Range J1Axis ±170°
J2Axis +120°~ -85°
J3Axis +85°~ -165°
J4Axis ±180°
J5Axis ±135°
J6Axis ±360°
Max. Speed J1Axis 2.27rad/s, 130°/s
J2Axis 2.27rad/s, 130°/s
J3Axis 2.27rad/s, 130°/s
J4Axis 3.93rad/s, 225°/s
J5Axis 2.53rad/s, 145°/s
J6Axis 6.98rad/s, 400°/s
Allowed Torque J4Axis 12N.m
J5Axis 10N.m
J6Axis 8N.m
Environment Temperature 0℃~55℃
Humidity 20%~80%(No frost)
Other

Avoid inflammable, explosive, corrosive gas and liquid;

No water, oil, dust;

Keep away from noise(plasma)

Installation Method Ground installing
Robot Main body 180kg
Power Three-phase 380V,50HZ/60HZ,3.6KVA
Electric Cabinet Weight 200kg









AOTAI WSME-315IIIR TIG Welder: Applicable to aluminum, aluminum alloy, stainless steel, carbon steel, etc.

Air Cabinet Robotic Spot Welding Machine With Wire Feeder / Start Control Panel

Product features:

  • Digital inverter welding power source.When welding arc initiation, the current rising speed is greatly increased, making aluminum welding easier, faster and perfect
  • Ac waveform output: standard square wave, non-standard square wave, sine wave, triangle wave, mixed wave, etc., suitable for aluminum alloy welding of various thickness
  • Arc-alignment synchronization function
  • Various welding parameters can be accurately preset
  • This function can store and call 30 sets of different welding parameters
  • The remote control function can adjust welding current and peak current
  • Current and voltage can be displayed simultaneously



Technical Data:

Model Number: WSME-315Ⅲ
Rated Input Voltage/Frequency Three-phase 380V±10% 50Hz
Rated Input Capacity(KVA) 9.3
Rated Input Current(A) 20
Rated Duty Cycle Rate(%) 60
Output No Load Voltage(V) 71
Output Output Current(A) 5~320
Constant Current(A) 5~320
Peak Current(A) 5~320
The base value current (A) 5~320
Arcing Current(A) 5~315
Ending Current(A) 5~315
Duty Ratio(%) 15~85
Pulse Frequency(Hz) 0.2~999
Clear Portion(%) -50~40
AC Frequency(Hz) 40~250
Front Air Time(S) OFF~10.0
Delay Air Time(S) OFF~60.0
Slow Rise Time(S) OFF~10.0
Fall Time(S) OFF~15.0
Power Factor 0.95
Welding Wire Diameter(mm) 0.8,1.0,1.2,1.6
Wire Feeding Mode Push Type
Air Flow (L/min) 15~20
Welding Gun Cooling Mode Water cooling/ air cooled
Protection Grade IP21S
Insulation Grade H/B
Dimension L×W×H(mm) 636×322×584
Weight (Kg) 60
Price (FOB SHENZHEN) US$ 5200
