Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-SQ-MF120x2
Contact Us

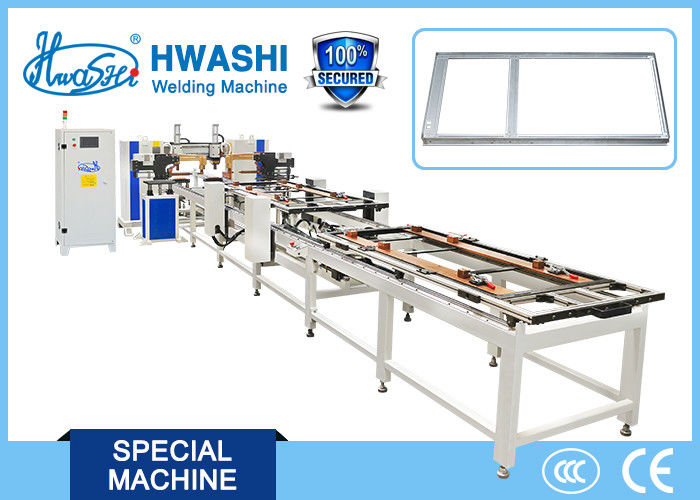

Aluminum Window Frame Automatic Welding Machine , Steel Panel Frame Spot Welder
DESCRIPTION
The resistance welding series , are designed and manufactured with a structure gantry type, to be fitted perfectly into production lines. This machine has two motor drived welding head and two X type welding guns for vertical and horizontal welding of steel panel frame or other similar product.
SPECIFICATION
| S.N | Items |
Wl-SQ-MF 120k
|
| 1 | Input Voltage | 380V three phase |
| 2 | Power | 90KVAx2 |
| 3 | Input Current | 150A |
| 4 | Output Voltage | DC12.6V |
| 5 | Maximum Welding Current | 15000Ax2 |
| 6 | Maximum Welding Model | 101Kinds |
| 7 | Welding Electrode | 10 |
| 8 | Effective Welding Width | 1350mm |
| 9 | The size of working table | 1400mmx1300mm |
| 10 | Back Stop | 6 lines x 2 |
| 11 | The Maximum Distance of Locating Point | 600mm |
| 12 | The Minimum Distance of Locating Point | 100mm |
| 13 | Y Axis Servo Motor | 2 sets |
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help the customers to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal Hwashi pursue.
