HWASHI Double Circumferential Resistance Seam Welding Machine for Oil Tank

HWASHI Double Circumferential Resistance Seam Welding Machine for Oil Tank

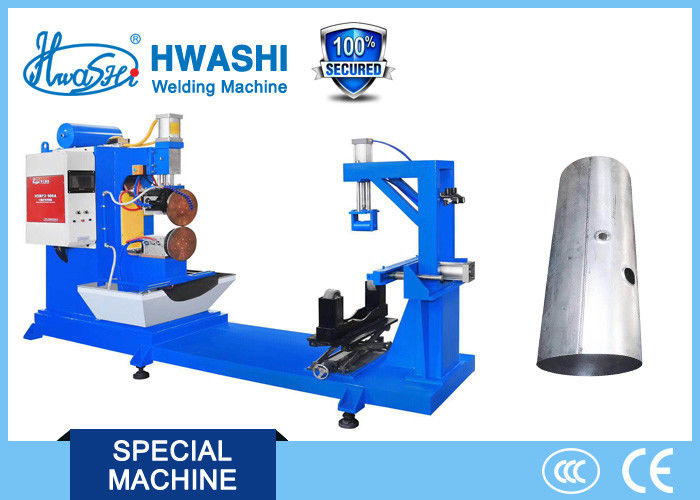

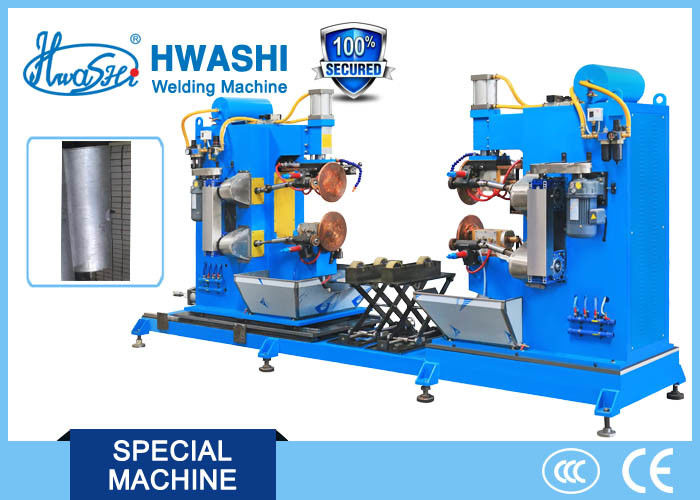

    • HWASHI  Double Circumferential Resistance Seam Welding Machine for Oil Tank
    • HWASHI  Double Circumferential Resistance Seam Welding Machine for Oil Tank
  • HWASHI  Double Circumferential Resistance Seam Welding Machine for Oil Tank

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC\ISO
    Model Number: WL-FS -200K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: sea worthy wooden package
    Delivery Time: 30 working days after received your deposit
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: HWASHI Double Circumferential Resistance Seam Welding Machine For Oil Tank Application: Suitable For Different Size Of Oil Tank And Water Tanks.
    Size: 2900x11450x1900mm Weight: 1500kg
    Condition: New Service Life: 8-10 Years

    HWASHI Double Circumferential Resistance Seam Welding Machine for Oil Tank



    SPECIFICATION



    Model WL-FS-200K WL-FS-MF160K
    Input Voltage 380V±10% 50Hz 380V±10% 50Hz
    Input Power 200KW 160KW
    Max Short Circuit Current 38000A 40000A
    Rated Duty Cycle Rate 25% 50%
    Welding Stored Models 16 types 101 types
    Electrode Pressure 9kN(I),1.8kN(II) 9kN(I),1.8kN(II)
    Rated Bleed Pressure 0.6MPa 0.6MPa
    Gas Consumption 5m3/h 5m3/h
    Water Source Pressure 0.2Mpa 0.2Mpa
    Cooling Water Consumption 200L/H 200L/H
    Welding Wheel Diameter 200mm 200mm
    Welding Wheel Width 3mm 3mm
    Welding Wheel Rotate Speed 800-4000mm/min (adjustable) 800-4000mm/min (adjustable)
    Welding Wheel Throat Depth Distance 1000mm 1000mm
    Upper and Lower Welding Wheel Distance 100mm 100mm
    Feeding Rack Rotate Speed 500-1000mm/min (adjustable) 500-1000mm/min (adjustable)




    DESCRIPTION



    When welding, welding pressure, between two welding wheel spin welding wheel drives the weldment and electricity, welding current by welding and local heating, forming successively overlapping to form a continuous weld joint and realize the permanent welding.Light reaction for casing, such as automobile, motorcycle fuel tank; Barrel, such as cans, and sheet forming artifacts, such as wheels, seam welding of muffler, radiator, etc.



    Adopt 200KVA resistance welding special transformer energy as welding power supply. Output current is above 34000A when the duty cycle rate is 25%. Executed standard is GB/15578-2008, magnetic permeability of forced temperature control water cooling silicon steel sheet is above 1200GS, special water cooling and subprime loop, ensuring constant and powerful welding current, providing guarantee for high quality welding spot.





    APPLICATION

    Roll seam welding is widely applied to welding of differnt size of oil tanks, sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket and missile. Can customzied accoridng to your product size and requirement.







    FEATURE

    1. Adopt intelligent microcomputer single piece controller which achieve pure digital setting. Online computer programming, LED digital display, stable performance, convenient modification of the program online.



    2. Adopt intelligent microcomputer control welding system. When the voltage fluctuates, it will compensate the welding current automatically to ensure the stability of welding.



    3. Adopt digital circuit control; select the components from famous factories in the world to ensure the equipment could operate steadily in the long run.



    4. Adopt SEMIKRON from West Germany, IXYS and IR silicon controlled from United States. High precision, long operating life, achieve high stability control of the magnitude of current.



    5. The transmission tile axis adopts the latest mercury conductive technology from abroad. State-of –the-art technology with good performance in transmission and conductivity.



    6. Welding roll wheel adopts the alloy copper material from Japan. High rigidity, good conductivity.



    7. The transformer adopts the high pure silicon steel sheet from Japan, good performance in magnet and electricity conductivity. Low consumption of electricity. Stronger and more stable power.



    8. Welding mold and the connection of the whole machine uses the mosaic connection. Easy to be assembled and disassembled.



    9. AC pulse, secondary rectifying and three-phase medium frequency type of welding power source are available.





    HWASHI  Double Circumferential Resistance Seam Welding Machine for Oil Tank

    HWASHI  Double Circumferential Resistance Seam Welding Machine for Oil Tank

    HWASHI  Double Circumferential Resistance Seam Welding Machine for Oil Tank

    HWASHI  Double Circumferential Resistance Seam Welding Machine for Oil Tank

    HWASHI  Double Circumferential Resistance Seam Welding Machine for Oil Tank

    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
