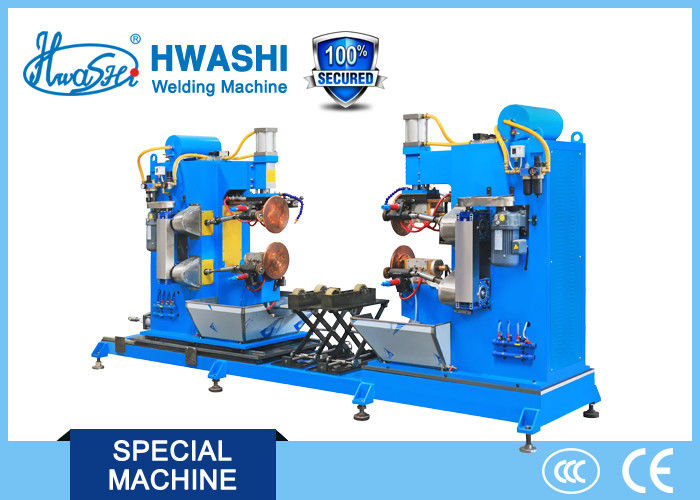

Dual Circular Rolling Seam Welding Machine Alusil Fuel Tank Cap Application

Dual Circular Rolling Seam Welding Machine Alusil Fuel Tank Cap Application

Dual Circular Rolling Seam Welding Machine Alusil Fuel Tank Cap Application

Product Details:

Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC\ISO
Model Number: WL-FS-MF-160K

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Dual Circular Rolling Seam Welding Machine For Alusil Fuel Tank Cap Application: Welding Alusil / Aluminum Oil Tank
Size: 1600mm X1600mmx1800mm Weight: 1000kg
Condition: New Service Life: 8-10 Years

Car Alusil Oil Tank Straight Rolling Seam Welding Machine





The seam (roll) welding special machine is the evolution of spot welder. It uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect. AC pulse current will be adopted. Roll welding is widely applied to light gauge welding of sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket and missile.





Features :

1.Welding appearance: Very less hot warp and oxidation save the processing in follow-up steps.

2.Stability: Less soldering tolerance conforms to JIS vehicle specifications.

3.Economy: The consuming parts such as copper-alloy electrode is very less, and power consumption is very less. The operation cost is low.

4.The machine is adjustable to fit either thin or thick work piece. Both continuous type and pulse type of electricity discharge are available.

5.Free of soldering scars: Save a lot of time on polishing, soil-patching and coating on next processing steps.

6.High maneuverability: The machine can be operated soon after it is started. Any ordinary technician can operate the machine.



Applied articles
All sizes of fuel tank of automobile and motorcycle, oil drum, oil tank, automobile's mufflier, exhaust pipe, bike's steel rim, stainless water tank, solar heat collecting plate, magazine, sprayer, water pail, electric heating canteen, thermos bottle, filter, all sizes of wine jar, motor's outer shell, mesh plate welding, stainless plate welding, and kitchen utensils.



Technical Parameters



Item


Model

Rated
aCpacity
Rated
Primary
Voltage
Rated
Frequency
Maximum
Short
Current
Electrode
Stroke
Welding
Speed
Electrode
Pressure
Motor
Power
Source
Motor
Power
Cooling
Water Flow
Weight
KVA V Hz A mm M/min KN V W L/min Kg
WL-FS-50K 50 380 50/60 15000 50 0.6-2 2.5 3-380V 90 30 500
WL-FS-75K 75 380 50/60 18000 50 0.6-2 3.9 3-380V 150 30 650
WL-FS-100K 100 380 50/60 20000 50 0.6-2 4.7 3-380V 150 30 880
WL-FS-150K 150 380 50/60 26000 50 0.6-2 6.1 3-380V 150 40 1050
WL-FS-200K 200 380 50/60 31000 50 0.6-2 6.1 3-380V 150 40 1250





COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.



Dual Circular Rolling Seam Welding Machine Alusil Fuel Tank Cap Application





Dual Circular Rolling Seam Welding Machine Alusil Fuel Tank Cap Application





Dual Circular Rolling Seam Welding Machine Alusil Fuel Tank Cap Application
