    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-MF-10K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: 1000Hz Medium Frequency Spot Welding Machine , Aluminum Steel DC Spot Welder Application: Welding For Aluminum And Copper Products
    Size: 480x900x1600*mm Rated Power: 10kva
    Condition: New Warranty: 12 Months
    Standard: CE/CCC/ISO Service Life: 8-10 Years
    Duty Cycle Rate: 20%

    HWASHI TECHNOLOGY Inc.
    Jonny Zhang
    Whatsapp/Wechat: +86 139 2435 2162

    Skype: szcns_jonny
    E-mail: sales4@hwashi.com
    Website: www.hwashi.com & http://www.spot-weldingmachine.com/

    Welcome your Inquiry!

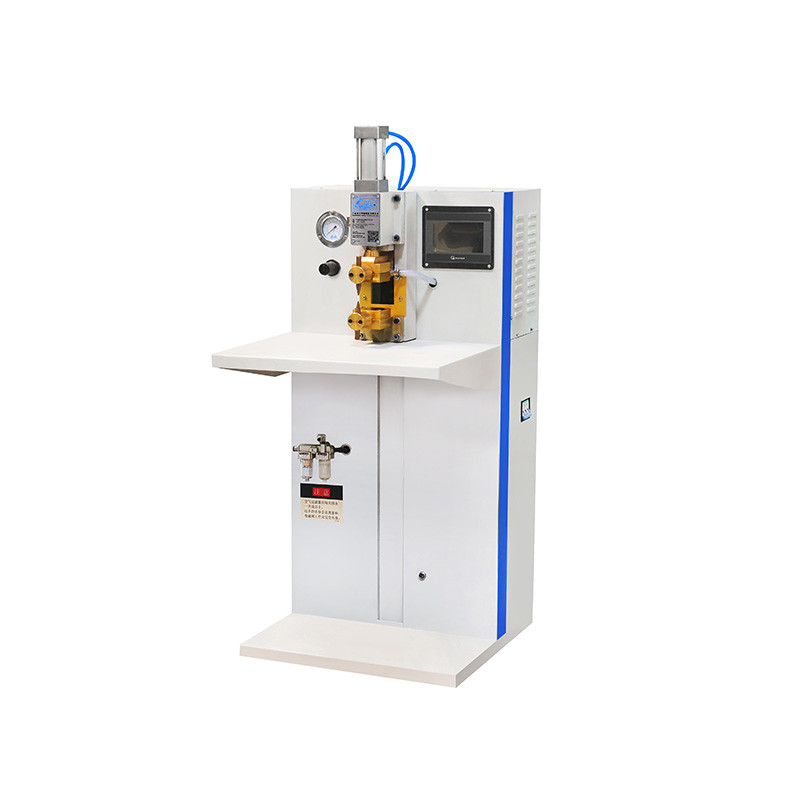

    1000Hz Medium Frequency Spot Welding Machine , Aluminum Steel DC Spot Welder


    DESCRIPTION

    MF DC Inverter Spot Welder is a set of advanced welding equipment. The three-phase power supply, through rectified by a special inverter, is converted into 1000Hz AC voltage and then is transmitted to a medium frequency transformer so the current is rectified in order to supply DC welding current. The advantage is that it helps to greatly reduce the energy of iron core material, as the frequency of welding transformer is promoted from 50/60Hz of mains supply to 1000Hz. Besides, the commutation diode of subloop of transformer could transform the electric energy into DC power which is used to provide power for welding. Under such circumstance, the inductance coefficient of subloop could be improved dramatically and the production cost could be minimized because the inductance coefficient is an important factor that results in energy loss but could almost be ignored in DC welding circuit.


    SPECIFICATION


    Items

    Specification

    Display

    5 Inches Blue Display Screen

    Rated Power

    10KVA

    Input Voltage

    AC 380V, 50Hz

    Duty Cycle Rate

    20%

    Maximum Short Circuit Current

    25000A

    Inverter Frequency

    1000Hz

    Welding Cycle Period

    11

    Welding Pulse Times

    3

    Current Slow Rise And Down Control

    Yes

    Stored Welding Models

    20

    Throat Depth

    300mm

    Cylinder Size

    ¢100x100mm





    FEATURE

    1. Energy Saving: Compare with using low frequency, it can help to reduce the consumption of electric energy. The transformer of the same weight could output more energy. It can also be conveniently used with the large automatic welding clamp.

    2. In a semi-automatic machine, one medium frequency transformer can replace many low frequency transformers which can help to reduce the parallel connection in secondary circuit.

    3. Improve the power factor, reduce the production cost.

    4. Reduce interference in secondary circuit which is in the large open area: the welding current is direct current. When there is induction or magnetic material in secondary winding, the welding will not be affected.

    5. To make the power supply unit load balance: MF inverter projection welder adopts the three-phase sources which can store energy.

    6. More adaptable to the fluctuation of power grid and voltage drop: a part of the energy has been stored by inverter and been supplied to load. It replaces the way of power supply to load directly from the power grid.

    7. More precise and fast control of current: Compare with low frequency system, it is able to analyze more parameters in a more precise way.

    8. More reliable process: For most of the applied resistance welding metals, to use DC to weld will help to achieve better effect.

    9. The technology of MF system is more traditional and reliable which can prevent the damage results from the breakdown of silicon controlled.

    10. Reduce operation cost, including saving the energy of each spot welding and reducing the cycle of welding.

    APPLICATION
    Sensor, LED and its lead, copper foil and vanished wire, relay, watch, capacitive slug and lead, copper wire, resistance pin, inductance, battery and stabilizer link, socket, silver contact and copper sheet, welding lightning with tungsten and molybdenum material, etc.



    Medium Frequency DC Welding Machine , Spot Welding Machine 10kva CE/CCC/ISO Standard

    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always  willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.





              Medium Frequency DC Welding Machine , Spot Welding Machine 10kva CE/CCC/ISO Standard


               Medium Frequency DC Welding Machine , Spot Welding Machine 10kva CE/CCC/ISO Standard      Medium Frequency DC Welding Machine , Spot Welding Machine 10kva CE/CCC/ISO StandardMedium Frequency DC Welding Machine , Spot Welding Machine 10kva CE/CCC/ISO Standard


       Medium Frequency DC Welding Machine , Spot Welding Machine 10kva CE/CCC/ISO Standard

       Medium Frequency DC Welding Machine , Spot Welding Machine 10kva CE/CCC/ISO Standard
