    Product Details:

    Place of Origin: China
    Brand Name: Hwashi
    Certification: CE, CCC
    Model Number: HS-R6-08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 10000usd
    Packaging Details: wooden package
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    After-sales Service Provided: Video Technical Support Material: Steel
    Weight: About 170kg Usage: Welding And Transportation,Welding Machine,Soldering And Welding,Robot Welding Support
    Voltage: 220/380V Condition: New
    Warranty: 1 Year Payload: 6 Kg,8KG
    Number Of Axes: 6

    Thanks for your visiting to Hwashi! You can contact with me for fast response by below channel



    Email: sales@hwashi.com

    Tel/Whatsapp: +86 186 8038 9568

    Wechat: willsteed

    Skype: horiswin



    Product Application

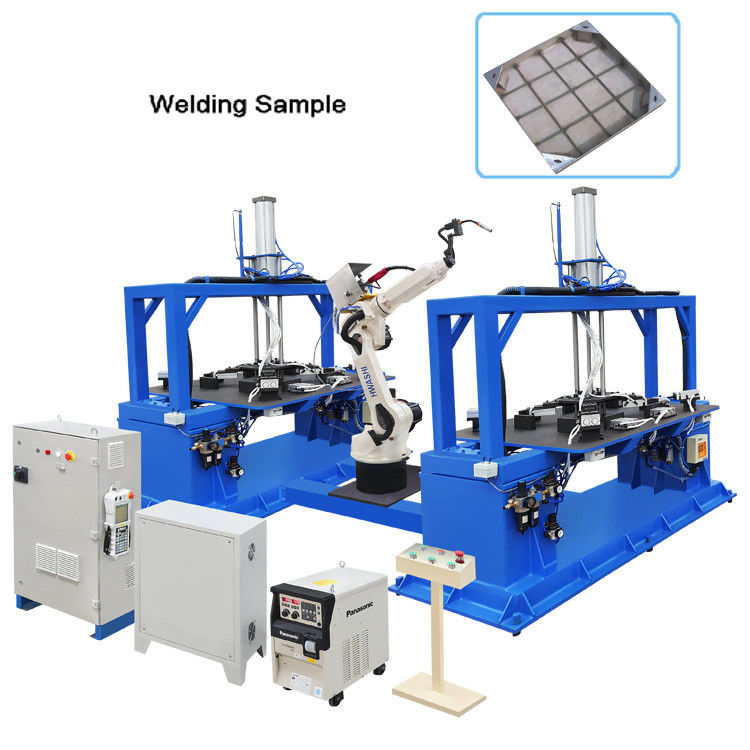

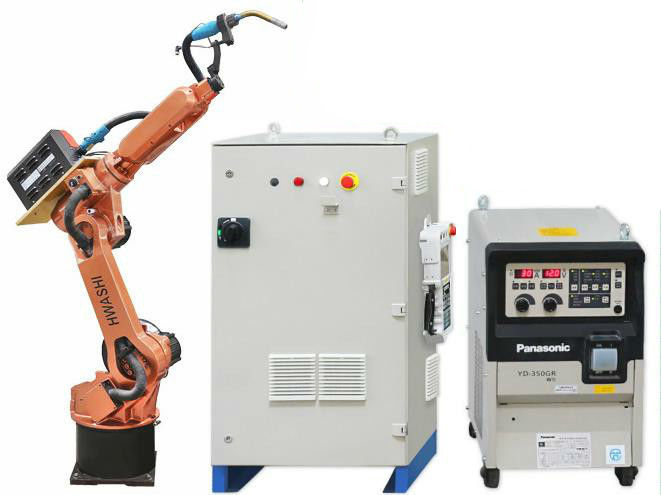

    HWASHI HS-R6-08 6 Axis Automatic Industrial TIG Welding Robot for Stainless Steel Box 1. Welding system: Panasonic TIG welding machine with automatic wire feeding system. Stable performance. 2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm. 3. Welding gun system: famous brand TBI welding gun. 4. Welding gun cleaning and wire cutting system: TBI brand.

    5. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.

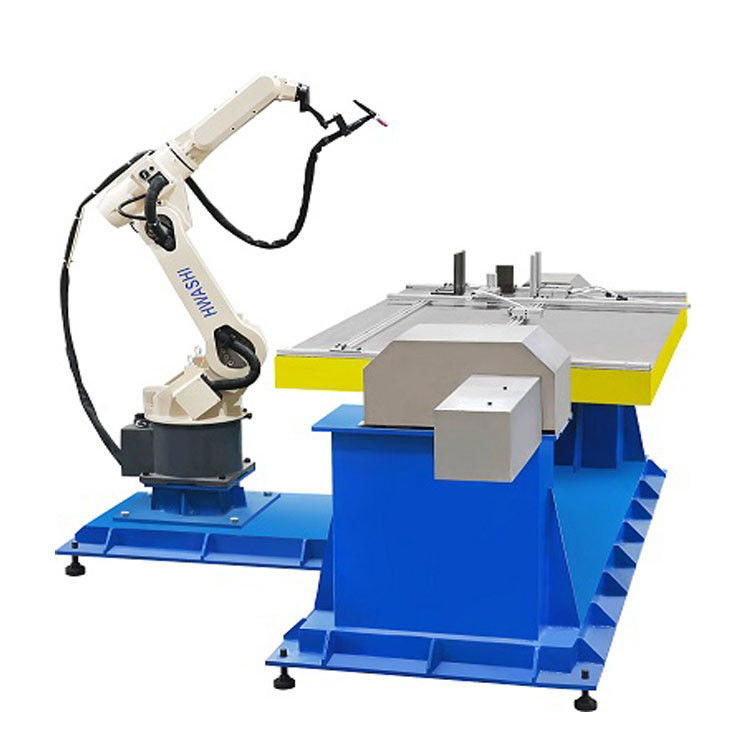

    6. Startcontrol panel system: Manual/Automatic button platform with portable structure. Convenient for operation. 7. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600 rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency. 8. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.



    Technical datas:



    Vertical Reach
    To mounting face
    885mm
    To wrist center
    820mm
    Axis Rotation
    J1
    ±175°
    J2
    +64°/-142°
    J3
    +165°/-73°
    J4
    ±178°
    J5
    ±132°
    J6
    ±720°
    Max Horizontal Reach
    1722mm
    Allowed torque
    J4
    42 N*m
    J5
    42 N*m
    J6
    20 N*m
    Allowed Inertia
    J4
    1.18 kg . m
    J5
    1.18 kg . m
    J6
    0.5 kg . m
    Environment
    Temperature
    0-45℃
    Humidity
    20~80% RH(no condensation)
    Other
    Keep away from:
    Flammable/corrosive gases
    Flammable/corrosive Solvents
    Water or oil and powder dust
    Sources of electric noise
    Weight
    200-250 kg
    Safety Regulations Arm
    IP65

    HWASHI Automatic Mig Welding Robot for Aluminium Welding


    HWASHI Automatic Mig Welding Robot for Aluminium WeldingHWASHI Automatic Mig Welding Robot for Aluminium WeldingHWASHI Automatic Mig Welding Robot for Aluminium WeldingHWASHI Automatic Mig Welding Robot for Aluminium WeldingHWASHI Automatic Mig Welding Robot for Aluminium Welding

    Controller System

    The robot can optimize the speed according to the actual load so as to shorten the operation cycle time. 1. The robot can detect self moving and loading condition according to the built-in service information system so as to provide optimized service requirement. Longer continuous working period. 2. Embedded controller can control 6-8 axis. The operating rate could reach 500MIPS with high speed motion control fieldbus. Be able to achieve continuous trajectory teaching and on-line teaching. Equipped with remote control and diagnostic function. 3. Overall consideration of the external force such as gravity, centrifugal force, etc, in the process of robot movement, use adaptive identification control technology to improve dynamic performance of the robot.
