    Product Details:

    Place of Origin: China
    Brand Name: Hwashi
    Certification: CE,CCC
    Model Number: WL-FS-100K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 10000usd
    Packaging Details: Wooden package
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Usage: Seam Welding,welding Can,welding Steel Plate,Automatic Butt Weld The Thin Shell(more Than 0.3mm) Cylinder,machinery&hardware Condition: New
    Welding Diameter: 100-1000mm Warranty: 1 Year
    Certification: CE,ISO9001,CCC,CE/CCC Voltage: 380V
    Power(w): 50-200KVA Weight: According To Machine Size
    Welding Mode: Seam Welding Forming Time: 1s-10s Adjustable
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Installation,commissioning And Training Dimensions: Customized
    Welding Speed: 0.2-2.2m/min Color: Customer's Requirement
    Name: Air Duct Seam Welder Machine For Air Duct Welding Material: Steel
    Overlap: 0.6-1.2mm Thickness: 0.4-1.2mm
    Welding Material: Carbon Steel; Stainless Steel; Aluminum,carbon Steel; Stainless Steel;galvanized Steel,Galvanized Steel/Stainless Steel/Carbon/Aluminum

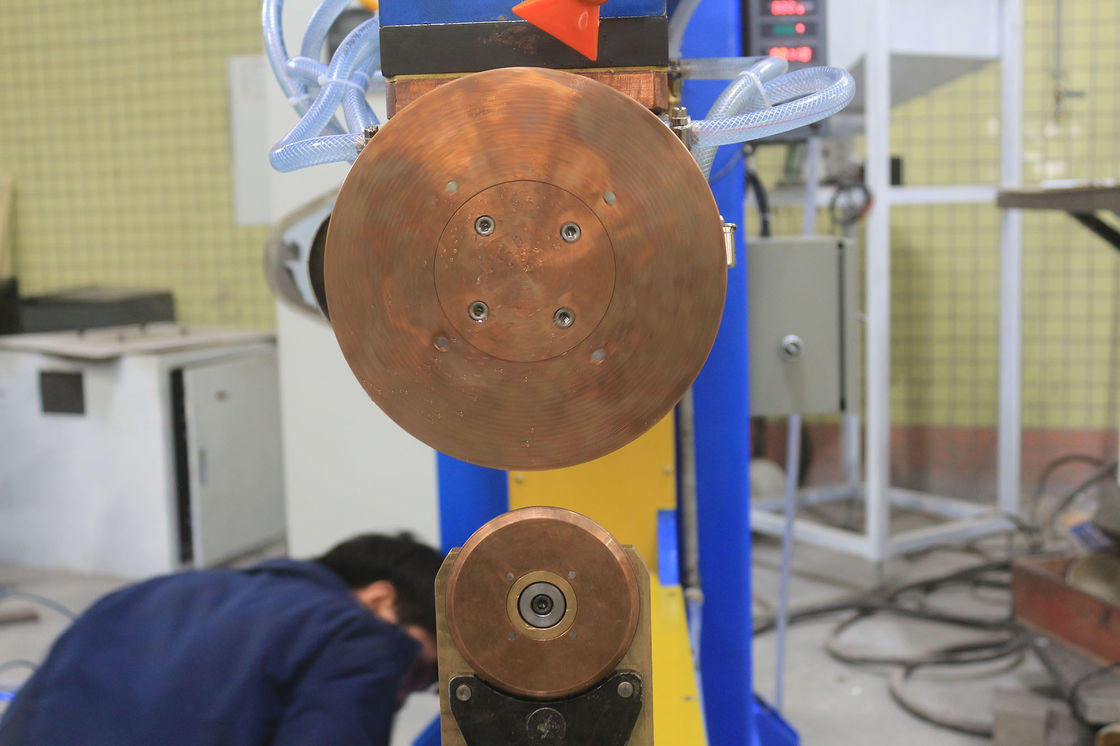

    1. Use the roller electrode to replace the cylindrical electrode of spot welding
    2. Generate weld nuggets to verlap with each other and finish welding of workpieces.
    3. AC pulse current, amplitude modulation current, three (single)-phase rectification, medium frequency and high frequency DC can
    be available.
    4. Roll welding is widely applied to light gauge welding of sealed container of oil drum, can, heating radiatior, airplane and
    fuel tank, rocket and missile. (the welding thickness is within 3mm of single plate. )
    5. The seam/roll welding is composed of welding spots.
    6. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding.
    7. Three stages in the forming process: pressurization, heating fusing and cooling crystallization.



    Features

    ---- Intelligent microcomputer single piece control welding system.
    ---- Stabe performance
    ---- High rigidity, good conductivity.
    ---- Low consumption of electricity. Stronger and more stable power.
    ---- Easy to be assembled and unassembled.
    ---- AC pulse, secondary rectifying and capacitive energy storage type of power source are available.


    Application Area

    petrochemical container made from stainless steel, carbon steel, aluminum, brass, titanium alloys, etc. Or circular seam welding
    of pipeline, flange, automobile silencer or hardware product.
    Technical Details
    Model
    WL-TP-50K
    Input Voltage
    380 V
    Input Power
    50 KVA
    Forming Time
    8 min/pc
    Weight
    380 kg
    minimum welding thickness
    0.2 mm
    Output Current
    19500 A
    Welding Diameter
    3.0-8.0 mm
    Sevice Life
    8-10 years
    Welding Wheel Manner
    Horizontal
    Dismension
    400*500*800 mm
    Materials
    No.
    Name
    Specification
    Brand
    Place of Origin
    1
    Discharge controlled
    silicon
    MCC
    MCC
    U.S.A
    2
    Controller
    CT
    KD4-1
    CN
    3
    Integrated chip
    C-CMOS
    MOTOROLA
    U.S.A
    4
    Switch
    DS-231
    IDEC
    Japan
    5
    Magnetic Valve
    4000#
    SANWO
    Korea
    6
    Air group
    4000#
    SANWO
    Korea
    7
    Frequency converter
    Fklt
    TAIDA
    Taiwan
    8
    Main control cylinder
    DN100x80
    ZC
    ZC




    We have professional production team, production line, experienced technical experts who engaged in this industry for more than 20 years. The main products of our company include capacitor discharge spot welder, pneumatic AC pulse spot welder, three-phase secondary rectifying spot welder, medium frequency inverter spot welder, precision micro spot welder and high degree of automatic welding machine.

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price. 2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier. 3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery. 4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant. 5. Quick Delivery: Our company provides just-in-time delivery. 6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
    Story About HWASHI

    Guangdong Hwashi Technology Inc. was established in 2001. The headquarter is located in Hwashi industrial park in Huizhou. Hwashi is a high-tech enterprise specialized in developing, manufacturing and selling of resistance welding machine, automatic welding machine and an industrial robot.

    In the past 20 years, Hwashi has obtained more than 50 patents for invention patents, utility model patents, design patents, and software Copyrights. It is the drafting unit of several national standards and industry standards. Hwashi has been awarded "China famous brand", "Guangdong famous brand", "China quality credit enterprise", "world outstanding Chinese businessman association member unit", "Guangdong province science and technology innovation quality management advanced unit", "Guangdong province academician expert enterprise workstation" and many other honorary titles.

    For 20 years, Hwashi keeps innovating and follow up with the latest technology in the world. Invest heavily in product development and innovation every year. In cooperation with key universities and national key laboratories and engineering technology centers in new materials and processes, the "medium frequency inverter" technology was first introduced into resistance welding equipment. Help to realize the "unmanned, intelligent" factory, the practice we have been striving for is to create efficient, energy saving, safe and environmentally friendly production environment for customers.

    With the trend of intelligent manufacturing in the world, Hwashi has set up a large-scale robot development base of 50,000 square meters in Yichun City, Jiangxi province. Introducing the world's top advanced production and processing equipment in our factory. We have a technical team and high-quality workers including mechanical, electronic, welding, automatic control, electromechanical integration, and management. We are committed to providing customers with efficient automation welding solutions in order to become a leading enterprise in world-class industrial intelligent equipment.
