Three Control DC Welding Machine , 50kva Ac Spot Welding Machine Automatic Adjustment

Three Control DC Welding Machine , 50kva Ac Spot Welding Machine Automatic Adjustment

dc spot welder

spot welding tool

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE, CCC

Model Number:

WL-MF-100K

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 set`
Price
5000
Packaging Details
wooden package
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Three Control DC Welding Machine , 50kva Ac Spot Welding Machine Automatic Adjustment

Product Application

HWASHI 50-200KVA Pneumatic AC Projection Spot Welding Machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.

We are a professional carbon steel resistance ac spot welding machine manufacturer, the power of the stationary type carbon steel resistance AC spot welding machine and 50k carbon steel ac spot welding machine that we produce is from 25KVA to 800KVA. It can be used to weld 10mm of iron and metals like stainless steel. Low cost 50k ac spot welding machine applicable to all kinds of hardware



Technical parameters:

Model

Input

Voltage

Input

Power

Output Current Pressurization

Electrode

Stroke

Closure

Platform

Distance

Electrode

Distance

Cooling

Water

V KVA A kg mm mm mm mm Lit/Min
WL-S-3K 220/1 10 5000 200 50 65-115 - 145-165 -
WL-S-5K 220/1 10 6000 200 50 65-115 - 145-165 -
WL-S-10K 220/1 10 8000 200 50 65-115 - 145-165 -
WL-S-16K 380/1 16 10000 300 80       6
WL-S-25K 25 12000 300 80       6
WL-S-35K 35 16000 350 80       6
WL-S-50K 50 19500 500 80       6
WL-SP-25K 25 12000 300 80 145-225 250 320-420 6
WL-SP-35K 50 16000 350 80 145-225 250 320-420 6
WL-SP-50K 50 19500 500 80 145-225 250 320-420 6
WL-SP-75K 75 24000 1000 100 130-230 260 490-540 8
WL-SP-100K 100 34000 1000 100 130-230 260 490-540 8
WL-SP-150K 150 40000 1000 100 130-230 260 490-540 8
WL-SP-200K 200   1500 100 130-230 260 490-540 8
WL-P-75K 75 24000 1000 100 130-230 260 - 8
WL-P-100K 100 34000 1000 100 130-230 260 - 8
WL-P-150K 150 40000 1000 100 130-230 260 - 8



Constant Current and Constant Voltage Intelligent Microcomputer Spot Welding Machine Controller/ WD-KD5



1) Three control functions: constant primary and secondary current, constant voltage;

2) Automatic adjustment of welding power and welding current;

3) Ensure the automatic cycle of each program segment of welding process in order to achieve complete automation;

4) When the current is too low, it will automatically electrify to conduct repair welding;

5) Be able to use the control panel to set parameters for different welding models directly. Convenient operation, easy adjustment;

6) Both single welding and continuous welding are available and each welding cycle has three welding conditions;

7) The intensity and time of welding current of each welding condition could be set separately. In the meantime, the current could be set to gradual up or down;

8) Pneumatic control (action output); the pneumatic control could be delayed;

9) Be able to store 9 types of welding models. Be able to select and adjust different welding models by choosing the number of models;

10) Silicon controlled adopts phase shift to trigger and the synchronous voltage is from the grid voltage to ensure the silicon controlled and grid will conduct synchronous phase shift trigger so as to achieve precise adjustment of the welding current and to meet the requirement of welding different materials;

11) When the power grid voltage fluctuates, the automatically compensation can make the welding current more stable. Thus, the welding quality could be guaranteed even though the grid voltage is under bad situation.

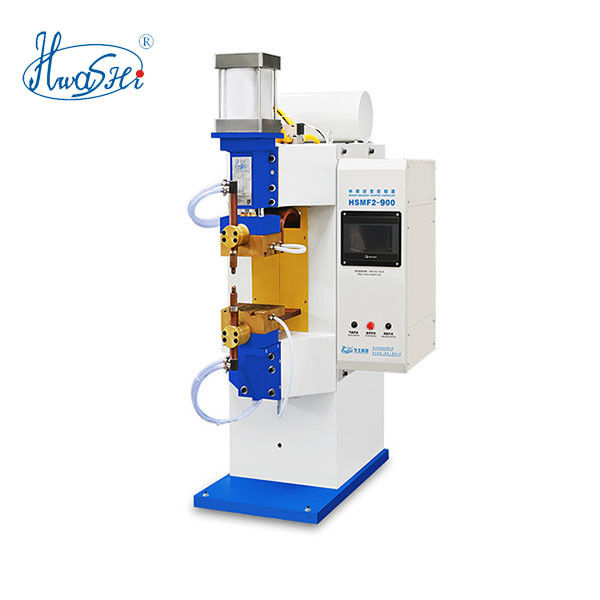

Three Control DC Welding Machine , 50kva Ac Spot Welding Machine Automatic Adjustment 0

Three Control DC Welding Machine , 50kva Ac Spot Welding Machine Automatic Adjustment 1
