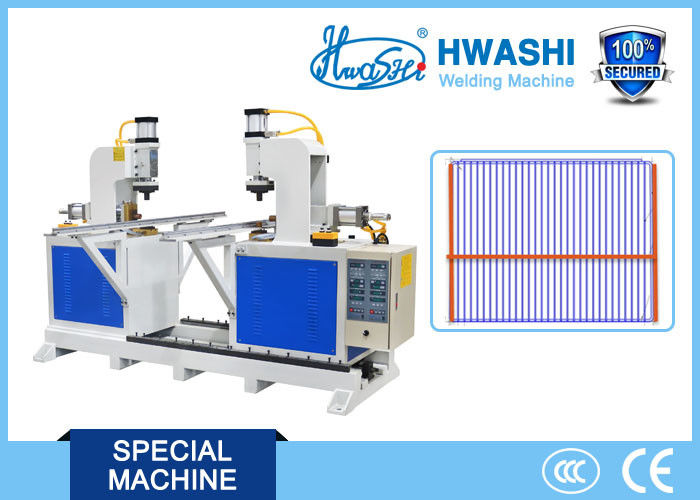

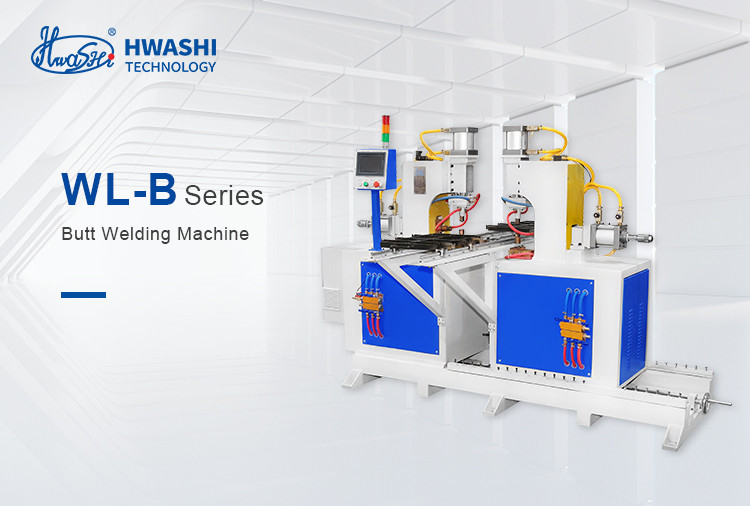

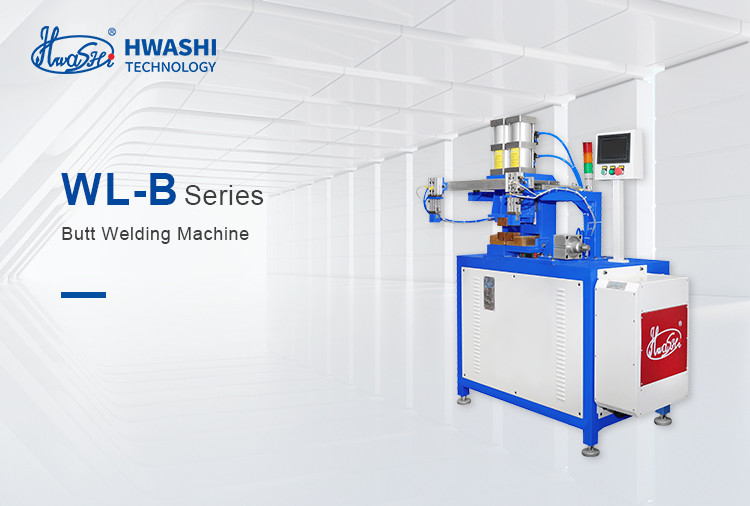

T Shape Tube Butt Welding Machine 75KVA Alternating Current CE CCC Certification

T Shape Tube Butt Welding Machine 75KVA Alternating Current CE CCC Certification

  • T Shape Tube Butt Welding Machine 75KVA Alternating Current CE CCC Certification
  • T Shape Tube Butt Welding Machine 75KVA Alternating Current CE CCC Certification
  • T Shape Tube Butt Welding Machine 75KVA Alternating Current CE CCC Certification
  • T Shape Tube Butt Welding Machine 75KVA Alternating Current CE CCC Certification
T Shape Tube Butt Welding Machine 75KVA Alternating Current CE CCC Certification
Product Details:
Place of Origin: China
Brand Name: Hwashi
Certification: CE,CCC
Model Number: WL-B-75K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 10000usd
Packaging Details: Wooden package
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Usage: Butt Welding Power: 75KVA
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support Dimensions: 1400x1200x1600mm
Certification: CE,CCC Weight: 350KG
Condition: New Color: According To The Customer's Request.,red Or Blue Or Other
Current: Alternating Current Input Voltage: 380V
Frequency: 50-60HZ Voltage: 380V
Warranty: 1 Year Product Name: China Supplier Butt Welding Machine
Package: Wooden Box
High Light:

butt welder

,

butt welding equipment











Description:

Butt welding machine is able to place the end face of the work pieces on the opposite place. To utilize the contact resistance of the two ends on the connecting position to generate high temperature and high heat to achieve welding effect under the effect of pressure.



This machine could choose the function of three times discharging. As for medium carbon steel, this machine possesses the function of preheat and welding anneal and is specially equipped with parallel straight slideway to ensure the parallel pressure of forging power of the welding product so as to achieve smoothness and firmness on the connecting position.





Feature:



1. Rigid Welded Steel Frame.
2. Air Operated.
3. Water-cooled.
4. Clamping Dies operated by independent
5. Air Cylinders.
6. Upset Electrode Force applied by an additional Air Cylinder.
7. Easy Adjustment permits fast set-up and
8. Quick Changeover.
9. Mechanical Upset Weld Limiter.
10. Maintenance Free SCR Contactor.
11. Optional Annealing Feature.



Application:

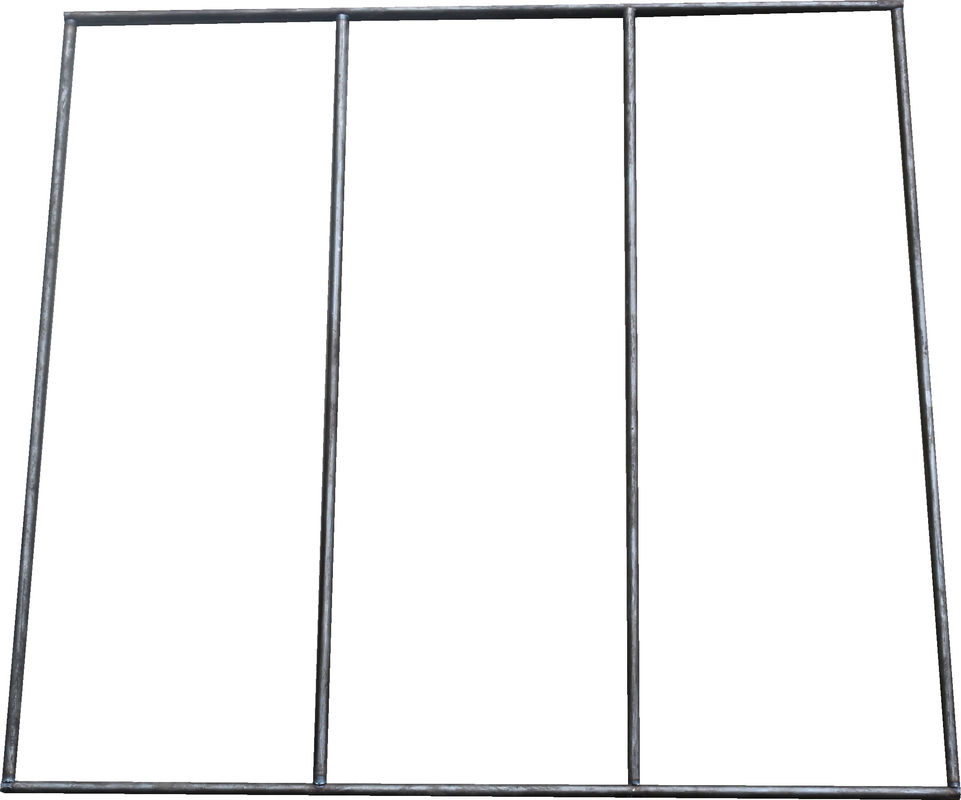

Butt welding of wire rod with different size or shape. Also suitable for butt welding of unfolded panel material whose width is within 300mm.



 Specification:



 Model

 WL-B-75K

 Voltage

 380 V

 Power

 75 KVA

 Platform Distance

 260 mm

Weight

 400 kg

 Discharge Times

 Three Sections

 Secondary Current

 24000 A

 Electrode Stroke

 100 mm

 Sevice Life

 8-10 years

 Cooling Water

 8 Lit/Min

 Pressurization

 1000 kg



 Material Configuration:

1.Adopt the energy storage quick charge-discharge capacitor from Japan Nippon Chemi-Con (NCC) which is the original MARGON or HITACHI; Fast discharge rate. Stable performance.

2.Adopt SEMIKON ,IXYS from West Germany or Silicon controlled of IR from United States. High precision and durable. Be able to achieve high stable control on the magnitude of current.

3. Adopt Motorla integrated circuits from United States.Quick reaction. Stable performance.

4.Adopt pneumatic parts from Japan or Taiwan. Reliable performance.

5.All the devices are from imported famous brands. Ideal service life and performance.





1: Can you provide customized service for our product?

Answer: Yes. We will provide you the professional robotic welding system solutions according to your specific product. Only you need to send us your detailed product drawings and welding requirement, then we will come out with the customized technical proposal for you.



2. What is the power supply of the machine?

Answer: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.



3. What's the warranty period and delivery time?

Answer: Warranty period is 12 months. While the delivery time would be within 30 days after receiving your deposit.
