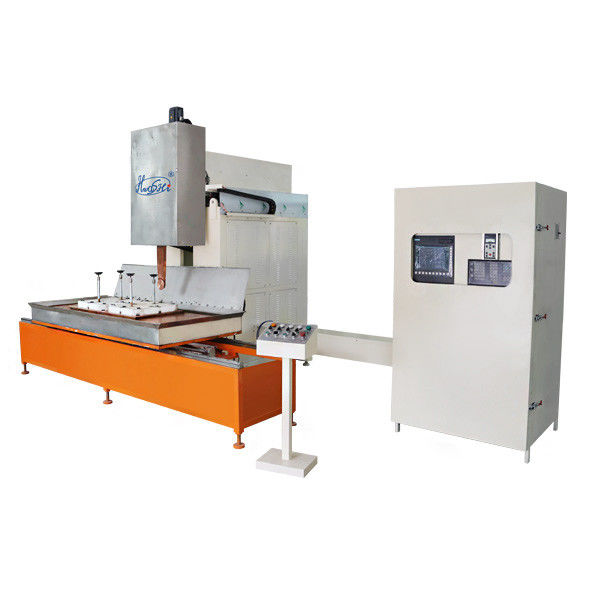

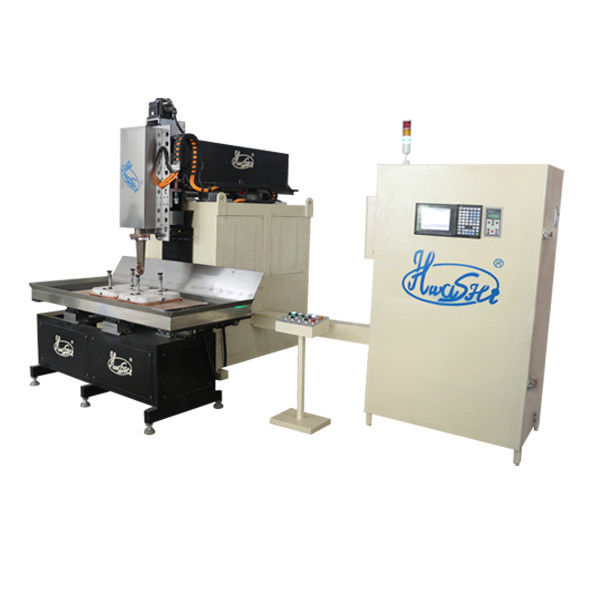

100-120mm CNC Automatic Sink Welding Machine 0.8MPa Pressure For Stainless Steel

100-120mm CNC Automatic Sink Welding Machine 0.8MPa Pressure For Stainless Steel

    • 100-120mm CNC Automatic Sink Welding Machine 0.8MPa Pressure For Stainless Steel
    • 100-120mm CNC Automatic Sink Welding Machine 0.8MPa Pressure For Stainless Steel
  • 100-120mm CNC Automatic Sink Welding Machine 0.8MPa Pressure For Stainless Steel

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-AMF-160K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Name: CNC Automatic Sink Welding Machine Application: Welding For Kitchen Sink
    Diameter Of Welding Wheel: 100-120mm Revolving Speed Of Welding Wheel: 1800-4000mm/min Adjustable
    Rated Bleed Pressure: 0.8MPa Consumption Of Gas: 1m3/h
    Standard: CE/CCC/ISO Service Life: 8-10 Years

    CNC Automatic Sink Welding Machine for Different Size Kitchen Sink Industry







    DESCRIPTION

    1. This CNC sink welding special machine utilizes the seam welding principle to replace the spot welding electrode with circle welding wheel.



    2. When the welding wheel rolls continuously or intermittently under continuous or intermittent current pulse, the welding seam which is composed of a series of welding spots will be formed.



    3. However, the distance between welding spots will be reduced which will make the nugget overlap with each other. When the overlap degree exceed 1/3 of the diameter of the nugget, then a certain degree of air tightness welding will occur. For the sake of ensuring the stability of welding quality, medium frequency inverter power source will be adopted.



    4. Adopt the professional automatic control system from Japan Mitsubishi, as long as inputting the data like coordinate data of the position of welding products, welding current, etc., then after turning on the machine, the welding track will automatically finish welding product within the preset procedure. The workers only need to put the work piece onto certain place and then take it away when finishing welding.



    5. Adopt medium frequency inverter power source of welding and large flat platform of locating pattern. Use the servo motor to drive axle X (locating mould) and axle Y (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction and the moving area should be no more than 1220mm. The welding electrode will be designed to move vertically along the Y direction and the moving area should be no more than 620mm. The welding electrode moves from top to bottom within 250mm along the axle Z direction and be able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products.







    MATERIAL COMPONENTS

    1. Adopt silicon controlled from Nanche SCR. High precision and long service life.



    2. Adopt ABB rectifier diode which is of high precision.



    3. Adopt Japan Mitsubishi servo motor which is of convenient usage, quick response and high precision.



    4. Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS, quick response, stable performance.



    5. Adopt Japan SIEMENS intelligent touch screen control system which is installed with automatic bug alarm system. Clear interface, easy operation, and stable performance.





    SPECIFICATION

    Model

    WL-AMF-160K

    Input Power

    Single-phase 380V±10%  50Hz

    Rated Capacity

    160kVA

    Rated Duty Cycle

    25%

    Maximum Secondary Floating Voltage

    12.5VAC

    Max Secondary  Short Circuit Current

    38000A

    Diameter of Welding Wheel

    100-120mm

    Width of of Welding Wheel

    3-5mm

    Revolving Speed of Welding Wheel

    1800-4000mm/min Adjustable

    Moving Range of Axis X

    ≥1600mm

    Moving Range of Axis Y

    ≥600mm

    Moving Range of Axis Z

    ≥350mm

    Rated Bleed Pressure

    0.8MPa

    Consumption of Gas

    1m3/h

    Pressure of Source of Water

    0.2Mpa

    Temperature of

    Source of Water

    10-20°C

    Consumption of Cooling Water

    1000L/H



    ***********************************************************************************************

    We can design and manufacture the welding equipment according to your request/drawing, contact us please, we will offer you a suit solution and support you to success.



    APPLICATION

    Suitable for sink welding within the range of 1600mm x 600mm. (customized)





    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.



    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.



    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.



    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.



    5. Quick Delivery: Our company provides just-in-time delivery.
