Product Details:
Place of Origin: Guangzhou Hwashi Technology INC
Brand Name: Hwashi
Certification: CE, ISO,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden packaging
Delivery Time: 7-30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Material / Metal Processed: ALLOY, Brass / Copper, Carbon Steel, Stainless Steel, PVC, Al Application: Aluminum Copper Steel
Max. Bending Angle (Deg): 360 Rotary Table: 2mtr Diameter
Bending Radius (mm): 7.5 - 25 Extra Services: Cut To Length
Feeding Speed: 10~700mm/time, Can Feed 3 Times One Time Bending: 1-8pcs (depends On Diameter)
Weight (KG): 3000KG
High Light:

0.8Mpa Steel Pipe Bender Machine

,

360 Degree Pipe Bender Machine



3-8mm Condenser Metal Bundy Aluminum Copper Steel Pipe Bender Machine



Description:

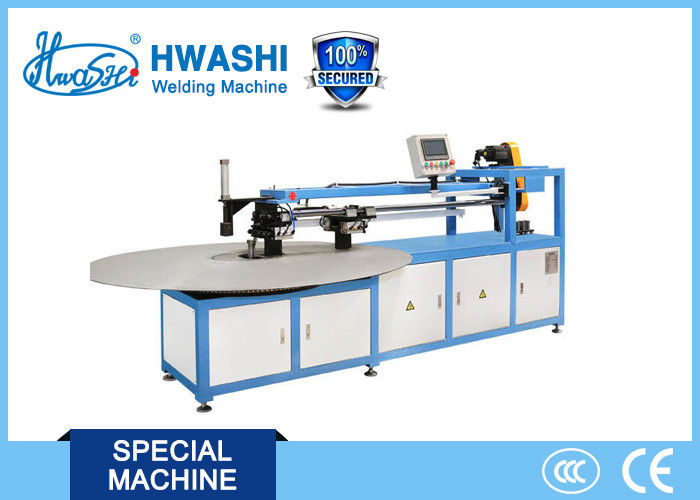

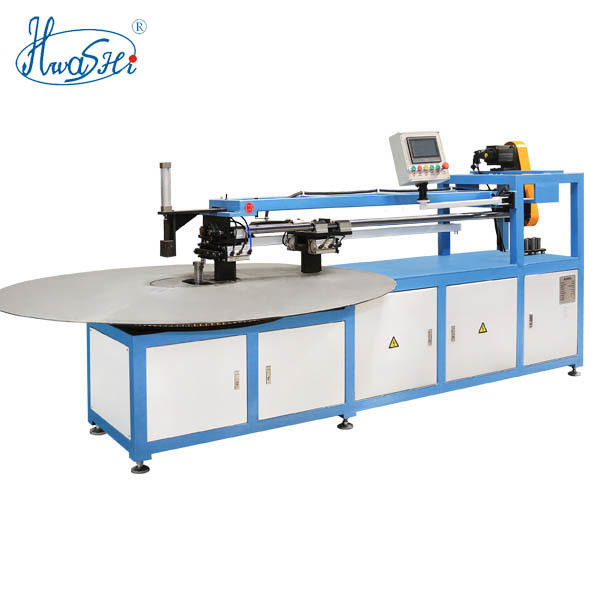

The machine can be used for copper, aluminum, Bundy tube, refrigerator freezer wire-tube evaporator, condenser, fin evaporator production and processing. Tubes bending machine with rotary table and or fixed table to meet different requirements from customers .The bending shapes could be setting in the PCL controller . Single tube or multi tubes all could be ''D'' shape (for better heating transfer ).





APPLICATION

Suitable for bundy tube bending.



Feature:

1.PLC contro , could be working with tube cutting machine as a production line .

2.8 working stations ,adjustable

3.Auto running table ,protect the tube surface smooth .

4.The bending angle can be up to 180 degree.

Technical Parameter:

Input Voltage 380V, Three-phase 50Hz
Applicable Tube Applicable Tube
Working Air Pressure 0.6-0.8Mpa
Tube Coil Specification 3~10mm
Tube Bending Radius Range R7.5-R25
Bending Angle 1~180°
Number of Tube for One Time Bending 1-12pcs (For R 7.5, Minimum 5 – 6Pcs & R10 - 10Pcs)
Single Time Bending Number of Times 110 times
Single Time Feeding Speed 10~700mm/time, be able to feed 3 times
Operation Method Touch Screen+Button
Running Mode Manual Loading+Automatic Feeding+Automatic Bending
Surface After Bending There is no obvious pull, row, bruise and knurled scratches on the surface of the tube.
Rotary Table Steel 20mm thick 3mtr diameter
Machine Dimension 2440x800x1580mm
Weight

750kg









  • Material Configuration:
No. Items Brand
1 Machine Main Body HWASHI professional welding, post weld stress relief treatment
2 Painting Sand blasting treatment, surface spray powder, color can be customized.
3 PLC Taian
4 Frequency Converter Delta
5 Servo Motor Elesy
6 Touch Screen KINCO
7 Encoder Omron
8 Low Voltage Apparatus Schneider
9 Ball Screw Hiwin
