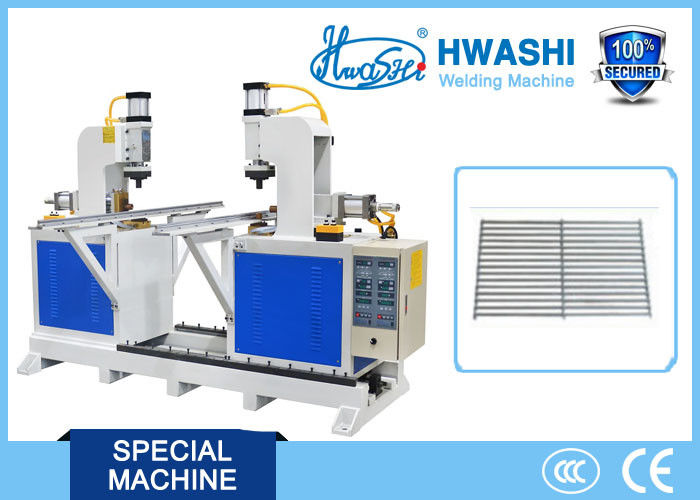

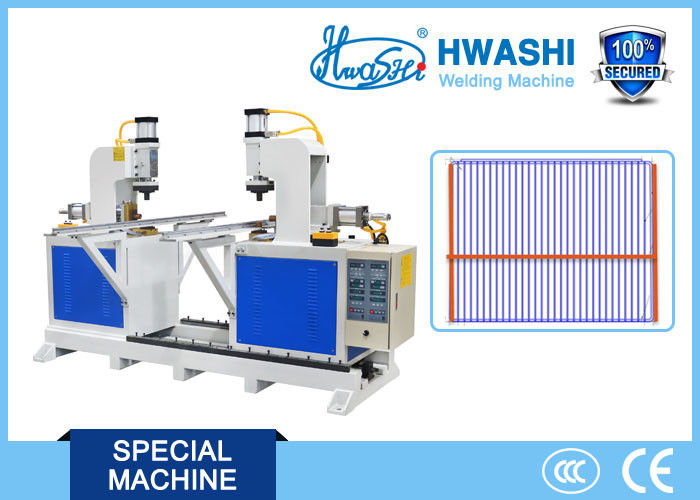

Double Head 100KVA 21KA Butt Welding Machine HWASHI WL-SP-100K

Double Head 100KVA 21KA Butt Welding Machine HWASHI WL-SP-100K

21KA Butt Welding Machine

100KVA Butt Welding Machine

HWASHI WL-SP-100K

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SP-100K

Contact Us

Request A Quote
Product Details
Product Name:
HWASHI Automatic Double Head T Type Pipe / Wire Butt Welding Machine
Application:
Welding Of Pipeto Pipe Or Wire To Wire
Size:
1300x1200x1750mm
Weight:
500kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description
HWASHI Automatic Double Head T Type Pipe Wire Frame T Butt Welding Machine



DESCRIPTION



When you need this kind of machine, please kind send your wire mesh drawing or picture with below dimensions first clearly showing:



1. wire diameter;

2. the distance between wires;

3. the max length and width of the wire mesh;

4. production capacity;

5. cost budget.



Then we can custom design and manufacture for you based on your requirements. Also we will give our suggestions base on our experience.

When we design, we put the below factors into consideration: welding spot position, welding quality consistence, applicable for welding different wire meshes (adjustable) and production efficiency.



This machine is design with two sets of AC welding power, moveable welding fixture. It is suitable for welding T shape wire frame product. Easy operation, no need skilled welding worker.  2 welding power which will enhance welding effective and assure firm and stable welding quality.



SPECIFICATION

No.
Items
Data
1
Welding Power Source
AC 50Kx2
2
Input Voltage
Two-phase 380V±10% 50Hz
3
Rated Capacity
100KVA
4
Power Factor
90%
5
Duty Cycle Rate
25%
6
Frequency
50HZ
7
Welding Schedule
9 types
8
Output Method
AC
9
Insulation Grade
F
10
Max. Short Circuit Current
21KA
11
Upper Pressing Cylinder
Φ50x100mm
12
Side Welding Cylinder
Φ50x100mm(adjustable stroke)
13
Feeder Stroke
2000mm
14
Welding Head Moving Stroke
1000mm
15
Rated Air Pressure
0.6MPa
16
Water Pressure
0.2Mpa
17
Water Temperature
10-20℃




Model: WL-SD-75K

Machine power: Standard AC 75 kva.

Welding power number: 1 or 2, which is available to modify as your real need.

Semi-automatic machine: Manual loading material into welding fixture, and manual push fixture when welding.

Machine controller: Mirco-computer Intelligent KD-5 controll -easy operation.

Check below file for more detail information for controller.



Double Head 100KVA 21KA Butt Welding Machine HWASHI WL-SP-100K 0

APPLICATION

Continuing welding of row shape and metal wire mesh or pipe to pipe.



COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







          Double Head 100KVA 21KA Butt Welding Machine HWASHI WL-SP-100K 1

            Double Head 100KVA 21KA Butt Welding Machine HWASHI WL-SP-100K 2Double Head 100KVA 21KA Butt Welding Machine HWASHI WL-SP-100K 3Double Head 100KVA 21KA Butt Welding Machine HWASHI WL-SP-100K 4
