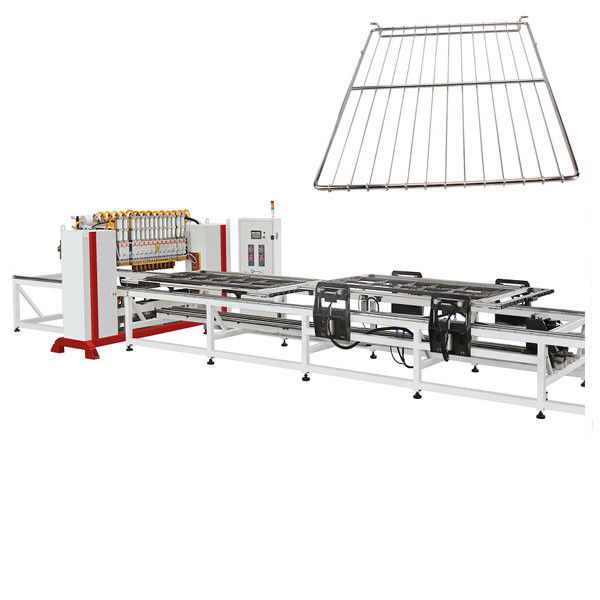

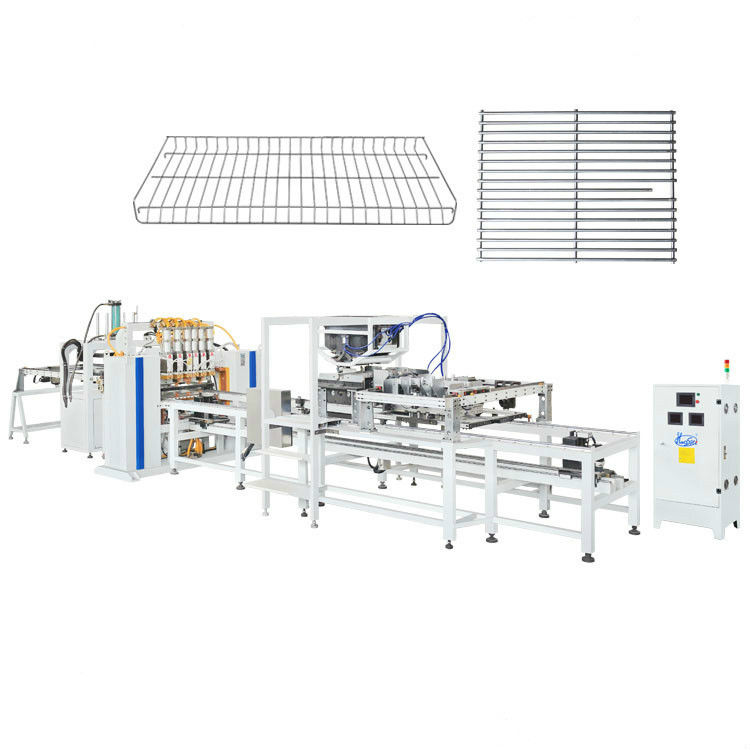

WL-SQ-150K 150KVA 1200mm Wire Mesh Welding Machine

WL-SQ-150K 150KVA 1200mm Wire Mesh Welding Machine

150KVA Wire Mesh Welding Machine

1200mm Wire Mesh Welding Machine

WL-SQ-150K

Place of Origin:

Guangzhou Hwashi Technology INC

Brand Name:

Hwashi

Certification:

CE, ISO,CCC

Model Number:

WL-SQ-150K

Contact Us

Request A Quote
WL-SQ-150K 150KVA 1200mm Wire Mesh Welding Machine
WL-SQ-150K 150KVA 1200mm Wire Mesh Welding Machine WL-SQ-150K 150KVA 1200mm Wire Mesh Welding Machine WL-SQ-150K 150KVA 1200mm Wire Mesh Welding Machine
Product Details
Mesh Width:
1200mm
Weight (KG):
300
Wire Diameter:
2mm- 10mm
Production Capacity:
100 Pieces/hour
Effective Welding Lenght:
3000mm
Effective Welding Width:
2500mm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
wooden packaging
Delivery Time
15-30 working days
Payment Terms
L/C, T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Hwashi Automatic Multiple Head Wire Mesh Spot Welding Machine for oven cooking racks online Video

Hwashi Automatic Multiple Head Wire Mesh Spot Welding Machine for oven cooking racks

Get Best Price
Good price Hwashi Pneumatic Wire Mesh Machine Row Welding Machine DC/ AC Standard Spot Welder online

Hwashi Pneumatic Wire Mesh Machine Row Welding Machine DC/ AC Standard Spot Welder

Get Best Price
Good price Galvanized Wire Mesh Welding Machine Stainless Steel Spot Welding Machine online

Galvanized Wire Mesh Welding Machine Stainless Steel Spot Welding Machine

Get Best Price
Good price Resistance Multi Point Wire Cage Mesh Spot Row Welder AC Electric Projection Welding Machine online

Resistance Multi Point Wire Cage Mesh Spot Row Welder AC Electric Projection Welding Machine

Get Best Price
Contact Us
+86-13380655800
export_trade@hwashi.com
86-752-3528326
Contact Now
Product Description

Hwashi Best Price Welded Wire Mesh Machine , Multi-Point Wire Rack,Wire Shelf Welding Machine





Product Description
Our machines have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc. Suitable for batch production of mesh, cages, fence, reinforced wire mesh. etc. Multi-point Spot Welding Full Automatic Wire Mesh Welding Machine


Multi-point Spot Welding Full Automatic Wire Mesh Welding Machine

1.This Gantry Row welding machine is specialized in fast production of wire mesh. It is suitable for the product with more y wire and less x wire.
2.The welding power source is three-phase. The welding manner is one-way double-layer automatic stepping feeding with 12 welding heads. (adjustable according to your product)
3.The effective welding width is 1200mm while the effective welding length is 3000mm. (adjustable according to your product)




1.Welding Power Source:Since the distance between wires is long, the welding head is suitable to conduct single-point welding. So the machine will choose the small power 150KW discharging transformer which is special used for resistance welding as the welding power source. To ensure the strength and stability of the welding,

2.Welding Control System: The secondary which is controlled by microcomputer will identify the output of current automatically in order to guarantee the constant current of each welding spot. In the meantime, the control system is equipped with the function of voltage compensation which is used for the automatic detection of the voltage change in order to ensure the constant strength of the welding spot.

3.Pressurized Mechanism: Multiple pressurized mechanisms are adopted to drive the row welding electrodes to conduct welding to each wire respectively.
Techincal parameters
No.
Model
WL-SQ-AC150K
WL-SQ-MF90K
1
Input Power
Two-phase
Three-phase
2
Rated Capacity
150KVAx2
90KVAx2
3
Rated Input Current
750A
270A
4
Rated Duty Cycle
25%
25%
5
Secondary Voltage Adjusting Grade
2
2
6
Max Secondary Floating Voltage
AC7.5V
DC9.8V
7
Secondary Max Short
Circuit Current
26KA
28KA
8
Continuous Working Current
20KA
22KA
9
Welding Transformer Insulation Grade
Grade F
10
Forcing Curve of Welding Machine
2 types
11
Storage Welding Model Number
30 types
12
Welding Electrode
6 sets
14
Effective Welding
Width
1200mm
15
Effective Welding
Width Length
1200mm
16
Automatic Mobile Speed
0.5m/sec





WL-SQ-150K 150KVA 1200mm Wire Mesh Welding Machine 0



1.Adopt silicon controlled from SEMIKRON of West Germany or IXYS of United Stated with high precision and long service life.

2.Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.

3.Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system.

4.Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within±15%.

5.Adopt South Korea SANWO pneumatic components with stable performance.

6.All the electronic components are from Japan Mitsubishi and Omron with ideal service life and performance.

7.The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity.

WL-SQ-150K 150KVA 1200mm Wire Mesh Welding Machine 1

WL-SQ-150K 150KVA 1200mm Wire Mesh Welding Machine 2

WL-SQ-150K 150KVA 1200mm Wire Mesh Welding Machine 3
