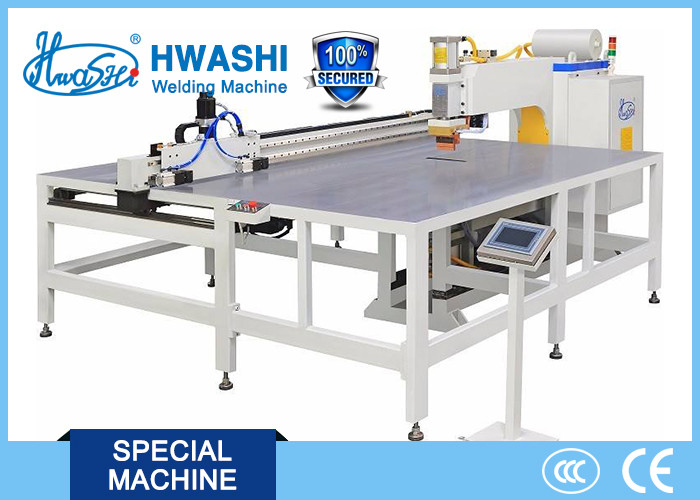

Name: HWASHI X Y Axis CNC Automatic Shelf Rack Welding Machine 400A
Brand: HWASHI
SKU: WL-SQ-150K
Price: 2 USD
Availability: InStock
Rating: 4.7 (162 reviews)

Home > products > Wire Mesh Welding Machine >

HWASHI X Y Axis CNC Automatic Shelf Rack Welding Machine 400A

Automatic Shelf Rack Welding Machine

CNC Shelf Rack Welding Machine

400A CNC Welding Machine

Place of Origin:

Guangdong, China

Brand Name:

HWASHI

Certification:

CCC CE

Model Number:

WL-SQ-150K

Request A Quote

HWASHI X Y Axis CNC Automatic Shelf Rack Welding Machine 400A

Product Details

Name:

Best Price Hardware Parts Welding Machine With XY Axis Feeder

Max.Welding Current:

34000 A

Feeding Rack Mobile Speed:

0.5mm/ Sec

Input Current:

400A

Effective Welding Width:

30~2200 Mm

Pper Welding Air Cylinder:

100*100 Mm

Output Voltage:

12 V

Effective Welding Length:

Within 3000 Mm

Service Life:

10 Years

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

US $2,000-20,000 / Set

Packaging Details

wooden packing

Delivery Time

7-30 days

Supply Ability

50 Set/Sets per Month

Hwashi Automatic Multiple Head Wire Mesh Spot Welding Machine for oven cooking racks

Get Best Price

Hwashi Pneumatic Wire Mesh Machine Row Welding Machine DC/ AC Standard Spot Welder

Get Best Price

Galvanized Wire Mesh Welding Machine Stainless Steel Spot Welding Machine

Get Best Price

Resistance Multi Point Wire Cage Mesh Spot Row Welder AC Electric Projection Welding Machine

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Description

1. This machine is designed as single-electrode welding machine with long arm type X, Y axis automatic mobile feeding system. Only have to change the fixture could you use it to weld different shape of wire mesh.
2. You only have to input the data like the coordinate data of the welding samples, welding current, etc. then start the machine. It will conduct welding automatically. Worker only have to put the material onto certain position then take out the welded product.
3. The structure of the machine is simple, and the assembly is easy. Be able to match with different welding machines.
4. Adopt the servo motor to drive the X, Y axis to run in the PLC preset program. Max to store 5000 welding positions and 18 sets welding models (18 types of welding positions and welding current of wire mesh).
5. Especially suitable for welding iron wire mesh, door reinforcing rib, air conditioner backboard.
6. It is equipped with low cost and low consumption AC power source with stable welding.
7. X direction range: max 900mm Y direction range: max 600mm.

Applicable Area

Widely used for each kinds of fence , hardware mesh, goods shelf, cages, wire frame, steel plate stiffener and others multiple spot welding.

Main Features

Option 1:Power Source: Adopt 1 set of 150KVA special resistance welding transformer as the welding power source. Single-spot welding. Continuous duty cycle rate is 50%; the output current is larger than 38000A. The executive standard is GB/15578-2008; the magnetic permeability of forced temperature control cooling water silicon steel sheet is larger than 12000GS; special cooling water subloop; It can ensure the output welding current of the whole machine is constant and powerful in order to obtain high quality, high efficiency, stable welding spots.

Option 2: Power Source: Adopt 1 set of 100KVA three-phase DC medium frequency inverter welding source. Duty cycle rate reaches 50%. The three-phase power supply is under rectifying through a special inverter and converted to1000Hz AC voltage and then be transmitted to a medium frequency transformer to be rectified so as to provide DC welding current. Compare with general AC pulse power supply, this kind of power source could be fast and precisely adjusted. Small impact to the power grid and lower requirement for the power grid compare with the single-phase welder of the same capacity.

X, Y Axis Automatic Mobile System: The feeding fixture is designed to move within the range of 900*600mm. It is composed of the coding servo motor, precision-finished slide and automatic detecting system. The adjustment is of quick response, high control precision and powerful driving force. This automatic device is designed as X, Y axis mobile working table. Use PLC to store the mobile programming. The setting is easy and convenient.

Welding samples
