Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
HS-RAW08
Contact Us
Video
Video

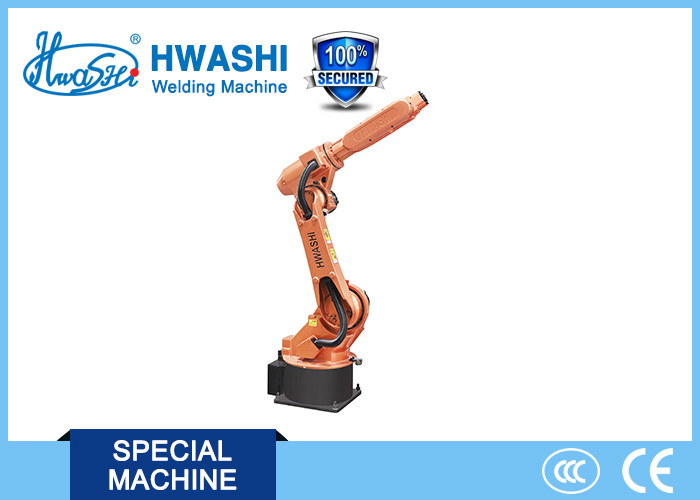

High Intelligent Robotic Arm 6 axis CO2 MIG MAG TIG /CNC Industrial Welding Robot
APPLICATION
Applied to loading and unloading, welding, stacking transportation, gelatinization and spraying industry.
SPECIFICATION
|
Model |
HS-RAW08 |
|
|
DOF |
6 |
|
|
Driving Mode |
AC servo Driving |
|
|
Effective Load (kg) |
6 |
|
|
Repeat Positioning Accuracy (mm) |
±0.05 |
|
|
Motion Range (°) |
J1 |
±170 |
|
J2 |
±120~-85 |
|
|
J3 |
±85~-165 |
|
|
J4 |
±180 |
|
|
J5 |
±135 |
|
|
J6 |
±360 |
|
|
Max Speed (°/S) |
J1 |
150 |
|
J2 |
150 |
|
|
J3 |
180 |
|
|
J4 |
270 |
|
|
J5 |
270 |
|
|
J6 |
270 |
|
|
Allowable Max Torque |
J4 |
7.2 |
|
J5 |
7.2 |
|
|
J6 |
5.2 |
|
|
Moving Radius (mm) |
893 |
|
|
Machine Weight |
7 |
|
DESCRIPTION
HS-RAW Series robot improves the accuracy and efficiency
Superior Spot Welding Capability
We have videos show how our machines work. Also professional R&D team can be provided to design machines according to your unique requirement.
Awaiting cooperating with you ! Thank you !
