Name: HWASHI Scaffolding Robotic Welding Machine Six Axis 50hz AC Servo Driving
Brand: HWASHI
SKU: HS-R6-10
Rating: 4.5 (167 reviews)

Home > products > Industrial Welding Robots >

HWASHI Scaffolding Robotic Welding Machine Six Axis 50hz AC Servo Driving

HWASHI Robotic Welding Machine

50hz Robotic Welding Machine

50hz robot welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE,CCC

Model Number:

HS-R6-10

Request A Quote

HWASHI Scaffolding Robotic Welding Machine Six Axis 50hz AC Servo Driving

Product Details

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training

Usage:

Welding Machine,Robot Welding Support

Voltage:

380v/50hz Or Customized

Machine Type:

Robot Welding Station

Payload:

8kg

Number Of Axes:

Condition:

New

Type:

CNC Industrial Welding Robot

Application:

Welding

Driving Mode:

AC Servo Driving

Motion Range (°):

360

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiation

Packaging Details

Wooden Packing

Delivery Time

30 work days

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Hwashi Automatic MIG TIG Welding Robot With Rotating Station For Storage Rack Corner

Get Best Price

Video

Galvanized Steel Big Rubbish Bin Welding Robot Configure Laser Seam Tracking System

Get Best Price

AC Servo 6 DOF Automatic Welding Robots CCC For Scaffolding Mig Tig

Get Best Price

Video

MIG TIG 6 DOF Arc Welding Robot 6 Axis AC Servo With Slideway Rail

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

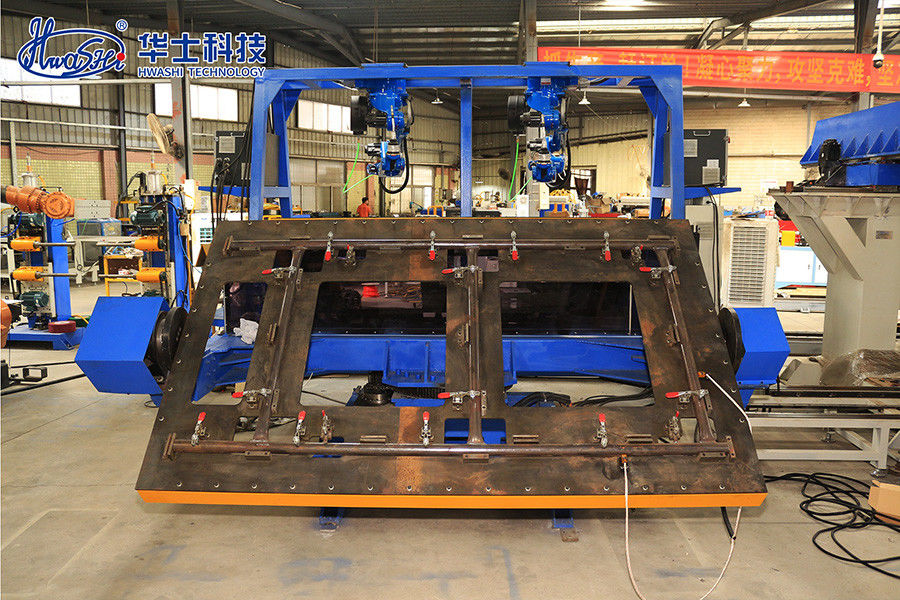

HWASHI Scaffolding Robotic Welding Machine,Six Axis MIG Welding Robot Machine Station

HWASHI FACTORY WORK SHOP .pdf

Product Application

Our machines have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.

Technical Parameters:

			Items
			Parameters

			Model
			HS-R6-08L

			Degrees of Freedom
			6

			Driving Method
			AC servo driving

			Max. Payload
			8kg

			Motion Range
			2000mm

			Repeated Positioning Accuracy
			±0.08mm

			Motion Range
			J1Axis
			±160°

			J2Axis
			＋145°～ -80°

			J3Axis
			＋75°～ -145°

			J4Axis
			±190°

			J5Axis
			＋75°～ -145°

			J6Axis
			±360°

			Max. Speed
			J1Axis
			125°/s

			J2Axis
			125°/s

			J3Axis
			125°/s

			J4Axis
			392°/s

			J5Axis
			272°/s

			J6Axis
			520°/s

			Allowed Torque
			J4Axis
			40N.m

			J5Axis
			50N.m

			J6Axis
			22N.m

			Environment
			Temperature
			0℃～55℃

			Humidity
			20%～80%(No frost)

			Other
			Avoid inflammable, explosive, corrosive gas and liquid;
No water, oil, dust;
Keep away from noise(plasma)

			Installation Method
			Ground installing

			Robot Main body
			186kg

			Power
			Three-phase 380V,50HZ/60HZ, 4.5KVA

			Electric Cabinet Weight
			200kg

This automatic robot can achieve automatic welding process with customized positioner and

fixture.

Welding Process

1. Firstly, put the work piece inside fixture, then it will be clamped in fixture.

2. Then start the machine, and positioner will rotate fixture which is loaded with work piece to welding position;

Feature:

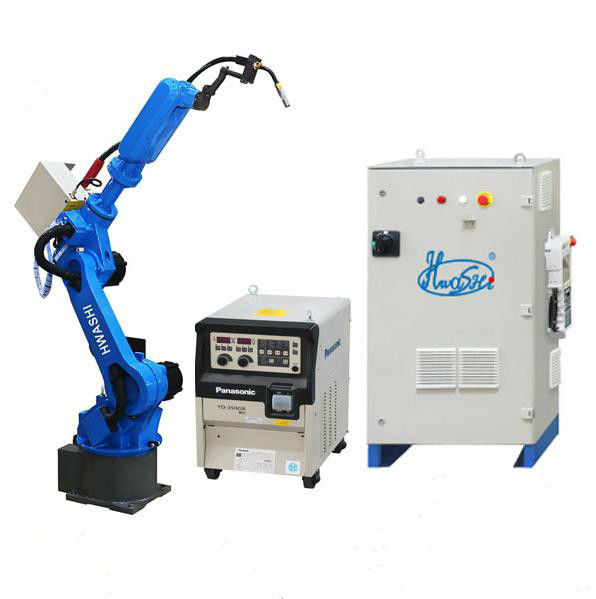

1. Welding system: Panasonic MIG or TIG welding machine with automatic wire feeding system. Stable performance.

2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.

3. Welding gun system: famous brand TBI welding gun.

4. Welding gun cleaning and wire cutting system: TBI brand.

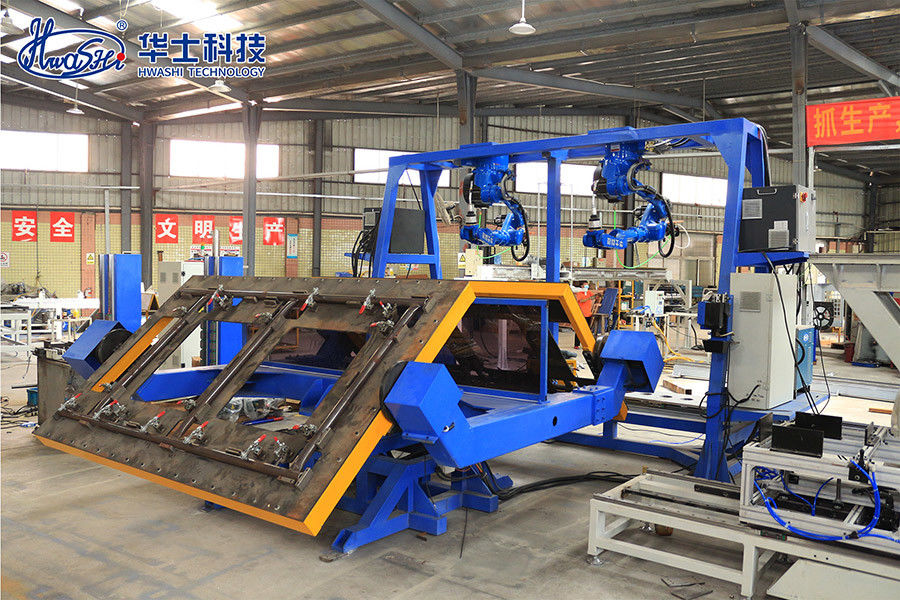

5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.

6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.

7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.

8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.

About HWASHI

We have professional production team, production line, experienced technical experts who engaged in this industry for more than 20 years. The main products of our company include capacitor discharge spot welder, pneumatic AC pulse spot welder, three-phase secondary rectifying spot welder, medium frequency inverter spot welder, precision micro spot welder and high degree of automatic welding machine.

HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
Quick Delivery: Our company provides just-in-time delivery. 6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
