Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-SP-100K
Contact Us
Video

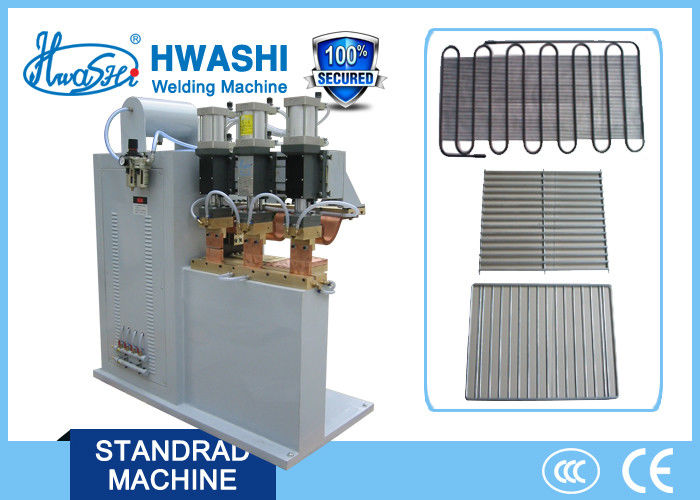

Hwashi Wire shelf Spot Welding Machine
DESCRIPTION
The equipment adopts a gantry type welding structure, and can be equipped with more than two sets of welding power sources. Multiple sets of welding heads are placed on the beam, and the distance between the welding points can be adjusted by moving left and right. It is designed with two-way or double-layer material racks. Two sets of feeding mechanisms are cycled automatically For welding, you only need to manually cyclize and take out the workpiece. Various specifications of mesh welding can be customized according to requirements.
SPECIFICATION
|
Model |
Input Voltage |
Input Power |
Input Current |
Row Welding Width |
Adjustable Stroke |
|
V |
KVA |
A |
mm |
mm |
|
|
WL—100K |
380 |
100 |
30000 |
200 |
50 |
|
WL—125K |
380 |
125 |
35000 |
200 |
50 |
|
WL—150K |
380 |
150 |
40000 |
200 |
50 |
Application Range
Suitable for cross welding of multi-point carbon steel, low alloy steel, stainless steel, galvanized, nickel-plated and other alloy wires. It is used in the manufacturing industries of fence nets, shelves, shopping carts, barbecue nets, pet cages, and racks.
