Place of Origin:
China
Brand Name:
Hwashi
Certification:
CE
Contact Us
Video

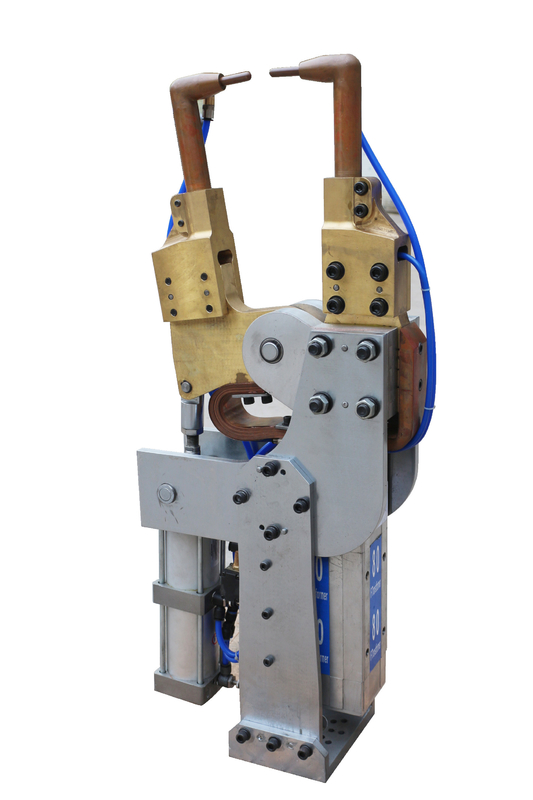

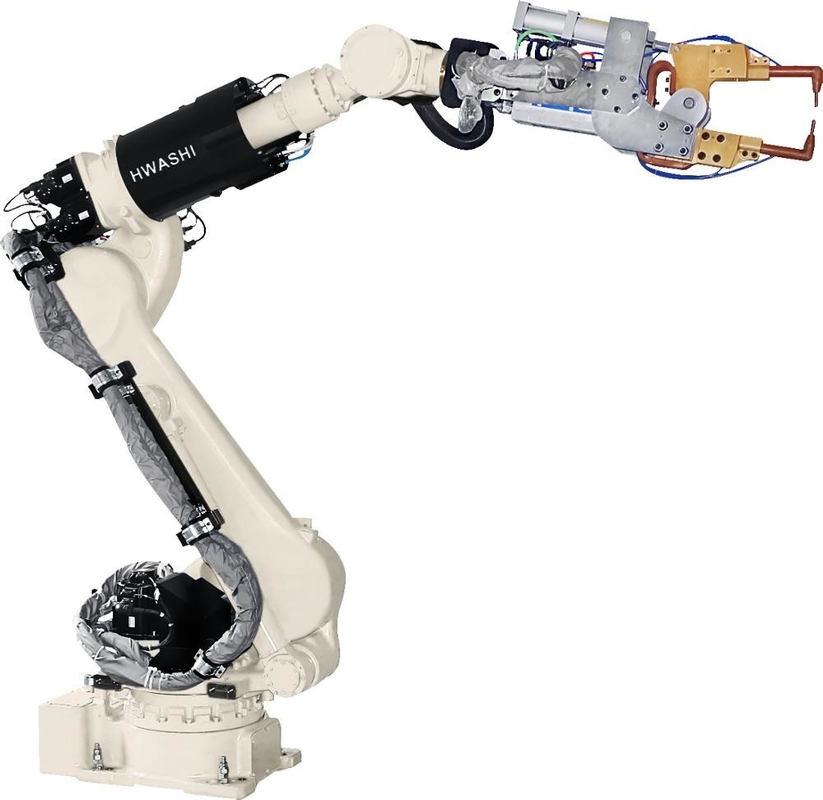

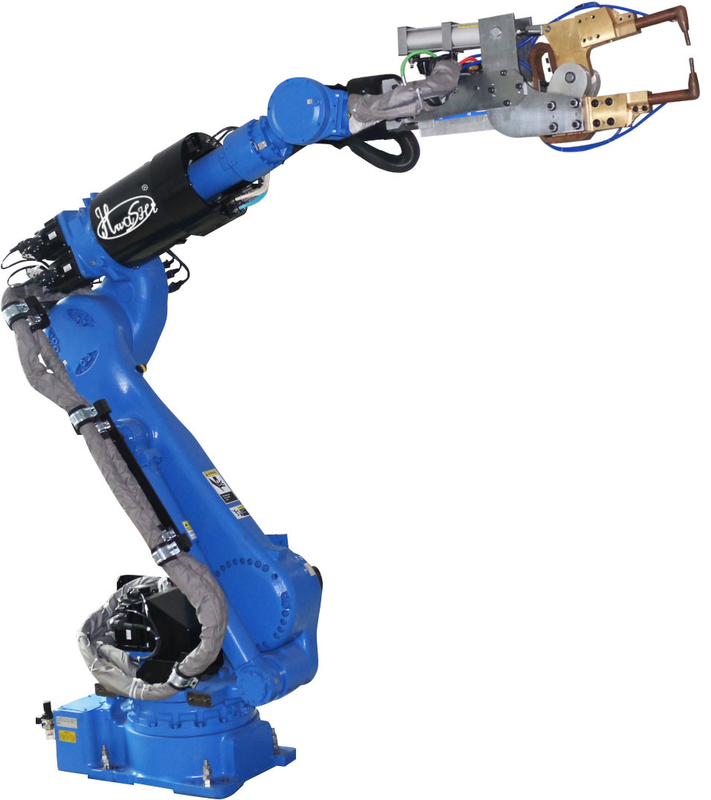

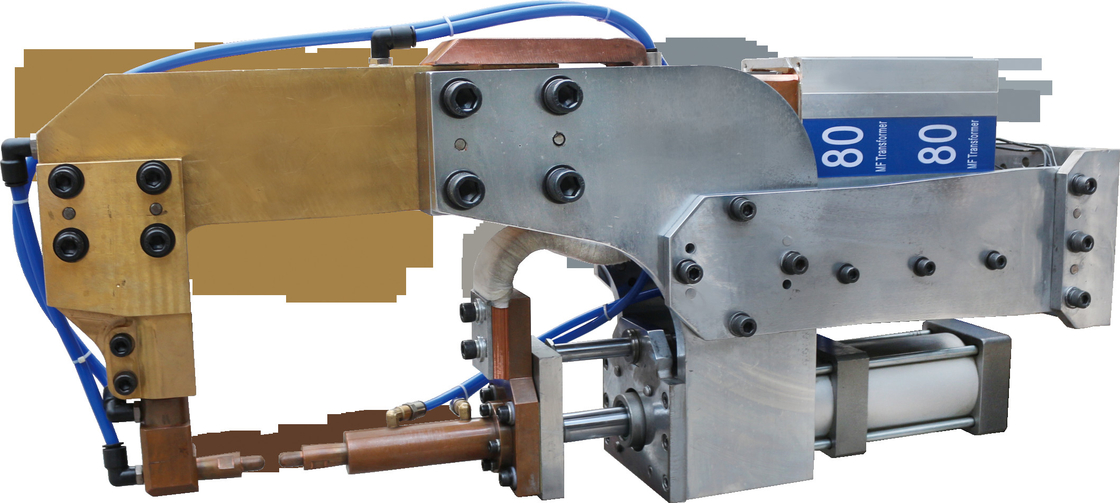

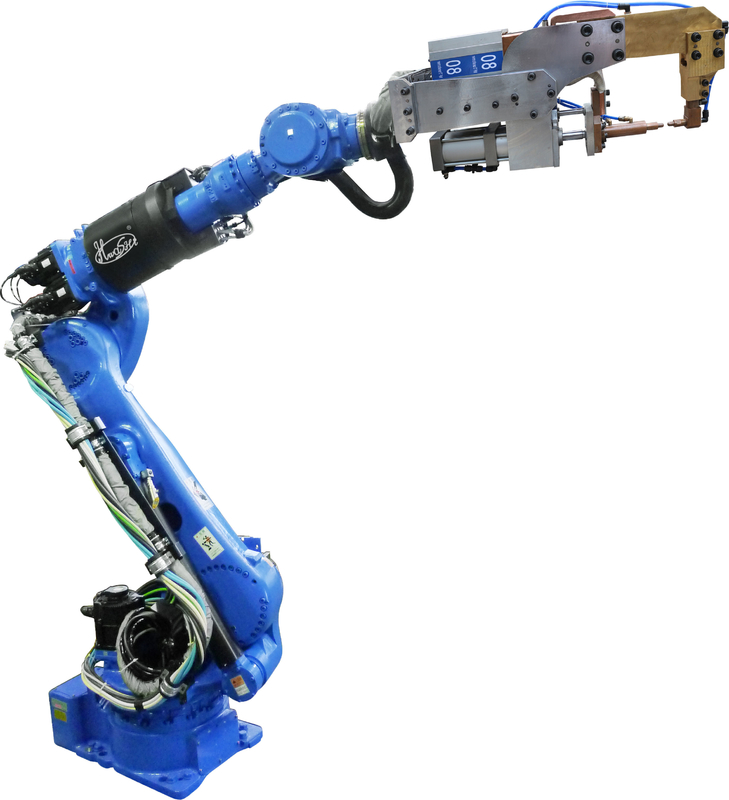

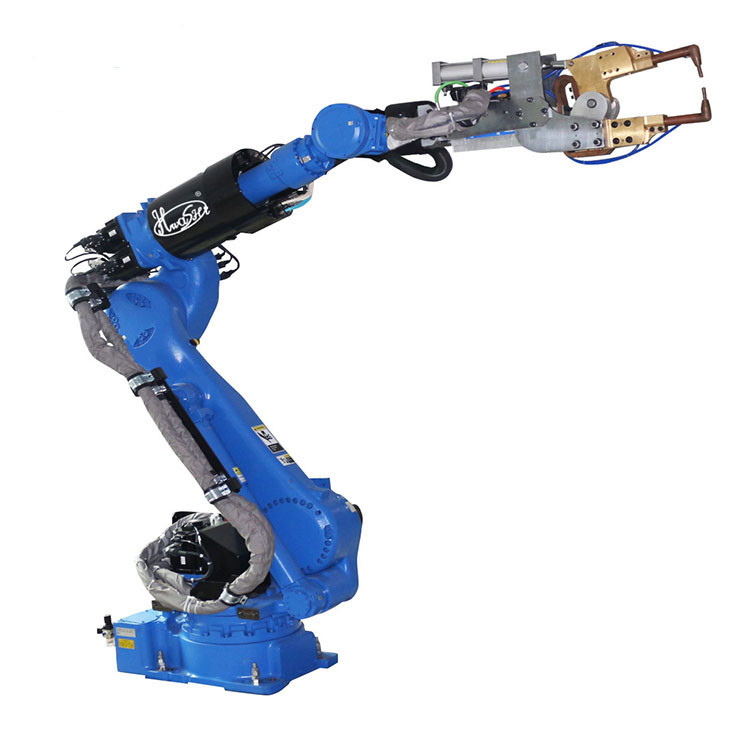

The spot welding robot is composed of 165KG six-axis robot body,computer control system ,teaching box and spot welding system.Spot welding robot can replace human manual welding.reducing the welder's labor intensity, but also can ensure the quality of welding and improve welding efficiency . Widely used
in the automotive industry, construction machinery, rail transit power, IC equipment,military and other industries
Specifications for 5 robot arm models:
| Model | HS-R6-08 | HS-R6-10 | HS-R6-20 | HS-R6-50 | HS-R6-165 | |
| DOF | 6 | |||||
| Driving Mode | AC Servo Driving | |||||
| Effective Load | 8KG | 10KG | 20KG | 50KG | 165KG | |
| Repeat Accuracy | ±0.05mm | |||||
| Working radius | 1400mm | 1589mm | 1595mm | 1950mm | 2483mm | |
| Weight | 180KG | 180KG | 290KG | 600KG | 1300KG | |
| Motion Range(°) | J1 | ±170 | ±170 | ±170 | ±180 | ±180 |
| J2 | ±120~-85 | ±120~-80 | ±132~-95 | ±130~-90 | ±80~-60 | |
| J3 | ±85~-165 | ±85~-165 | ±73~-163 | ±75~-210 | ±80~-190 | |
| J4 | ±180 | ±180 | ±180 | ±360 | ±360 | |
| J5 | ±135 | ±135 | ±133 | ±115 | ±115 | |
| J6 | ±360 | ±360 | ±360 | ±360 | ±360 | |
| Max Speed(°/s) | J1 | 130 | 130 | 147 | 158 | 100 |
| J2 | 130 | 130 | 100 | 149 | 90 | |
| J3 | 130 | 130 | 135 | 130 | 104 | |
| J4 | 270 | 270 | 300 | 215 | 144 | |
| J5 | 170 | 170 | 198 | 251 | 160 | |
| J6 | 455 | 455 | 194 | 365 | 215 | |
| Power | 4KVA | 4KVA | 6KVA | 14KVA | 31KVA | |
| Voltage | 380V or 220V | |||||
| Frequency | 50Hz or 60Hz | |||||
Descriptions of welding robots.
1. According to the request of the welded products, we design the robot using a six-axis frame equipped with tig/mig welders to complete the welding automatically.
2. The welding robot uses cylinder or clamp and utilizes the leverage principle to fix product. In this way, can meet the requirements for automatic welding and make sure robot can weld each part of the product.
3.According to the production efficiency requirement, we design two sets of fixtures. One is used for loading the work pieces, the other is used for welding. Improving welding quality and welding efficiency.
The Welding Robot workstation & fixture can be designed according to your products,
Clear robot arm programming remote.
A Complete welding robot includes robot arm, position chaning device, controller box, Programming remote, cables, etc.
