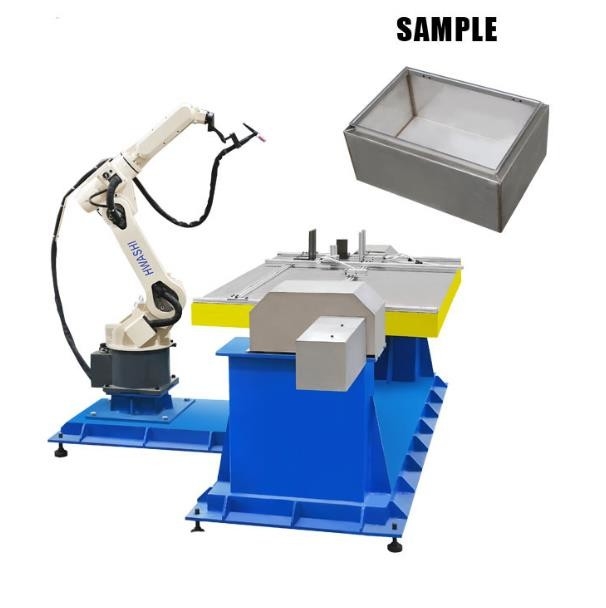

HWASHI HS-R6-08 6 Axis Automatic Industrial TIG Welding Robot for Stainless Steel Box
1. Welding system: Panasonic TIG welding machine with automatic wire feeding system. Stable performance.
2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.
3. Welding gun system: famous brand TBI welding gun.
4. Welding gun cleaning and wire cutting system: TBI brand.
5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600 rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.
6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.
7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.
8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.
Locating Fixture: (Used for locating the work piece onto the automatic rotate table)
Optional Positioner:
HWASHI HS-R6-08 6 Axis Automatic Industrial TIG Welding Robot for Stainless Steel Box
Technical Parameter:
HWASHI HS-R6-08 6 Axis Automatic Industrial TIG Welding Robot for Stainless Steel Box
| Items | Parameters | |
| Model | HS-R06-08 | |
| Degrees of Freedom | 6 | |
| Driving Method | AC servo driving | |
| Max. Payload | 8kg | |
| Repeated Positioning Accuracy | ±0.05mm | |
| Motion Range | J1Axis | ±170° |
| J2Axis | +120°~ -85° | |
| J3Axis | +85°~ -165° | |
| J4Axis | ±180° | |
| J5Axis | ±135° | |
| J6Axis | ±360° | |
| Max. Speed | J1Axis | 2.27rad/s, 130°/s |
| J2Axis | 2.27rad/s, 130°/s | |
| J3Axis | 2.27rad/s, 130°/s | |
| J4Axis | 3.93rad/s, 225°/s | |
| J5Axis | 2.53rad/s, 145°/s | |
| J6Axis | 6.98rad/s, 400°/s | |
| Allowed Torque | J4Axis | 12N.m |
| J5Axis | 10N.m | |
| J6Axis | 8N.m | |
| Environment | Temperature | 0℃~55℃ |
| Humidity | 20%~80%(No frost) | |
| Other |
Avoid inflammable, explosive, corrosive gas and liquid; No water, oil, dust; Keep away from noise(plasma) |
|
| Installation Method | Ground installing | |
| Robot Main body | 180kg | |
| Power | Three-phase 380V,50HZ/60HZ,3.6KVA | |
| Electric Cabinet Weight | 200kg | |
Controller System:
The robot can optimize the speed according to the actual load so as to shorten the operation cycle time.
1. The robot can detect self moving and loading condition according to the built-in service information system so as to provide optimized service requirement. Longer continuous working period.
2. Embedded controller can control 6-8 axis. The operating rate could reach 500MIPS with high speed motion control fieldbus. Be able to achieve continuous trajectory teaching and on-line teaching. Equipped with remote control and diagnostic function.
3. Overall consideration of the external force such as gravity, centrifugal force, etc, in the process of robot movement, use adaptive identification control technology to improve dynamic performance of the robot.
Application:
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
1: Can you provide customized service for our product?
Answer: Yes. We will provide you the professional robotic welding system solutions according to your specific product. Only you need to send us your detailed product drawings and welding requirement, then we will come out with the customized technical proposal for you.
2. What does the whole welding robot system include?
Answer: The whole welding robot system includes the robot arm, controller, welding power source, positioners (one-axis or two axis), fixtures, welding gun cleaner, safety fence, etc.
3. What's the warranty period and delivery time?
Answer: Warranty period is 12 months. While the delivery time would be within 30 days after receiving your deposit.
4: How can you do afters-ales service for us?
A: We will send engineer to your factory for machine installation and maintenance training. If any parts broken down during warranty period, we will send the replaced parts to you for free. And we will provide online technical support to solve the problem. If the problems still cannot be solved, we will send engineer again to your factory for repairing.
