Place of Origin:
China
Brand Name:
Hwashi
Certification:
CE
Model Number:
HS-R6-08
Contact Us
Video
Video

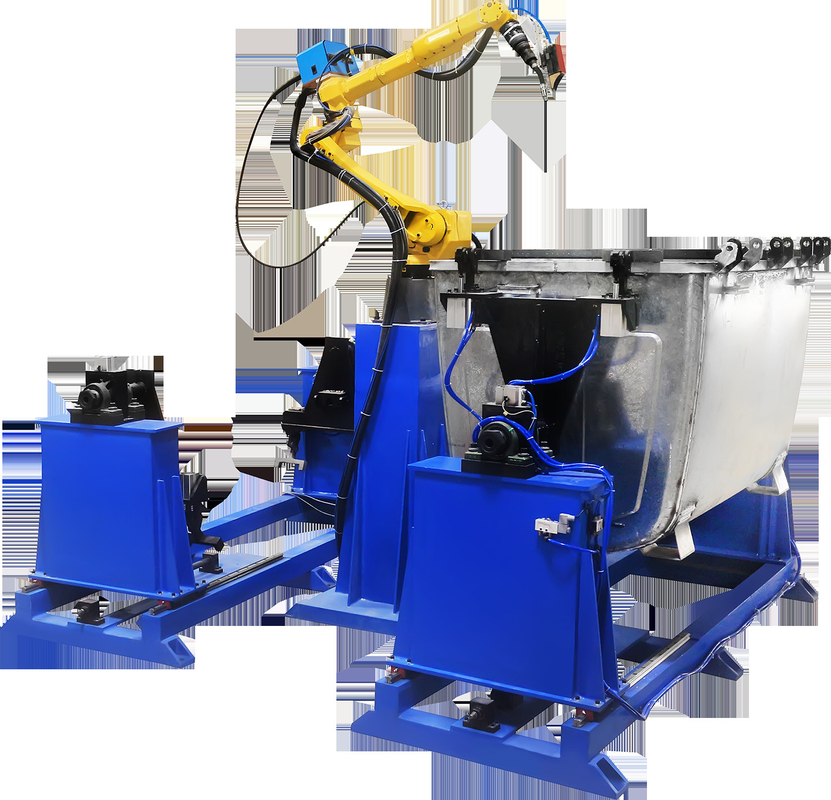

Welding robot features & famous brand components.
1. Welding system: Panasonic MIG or TIG welding machine with automatic wire feeding system. Stable performance.
2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.
3. Welding gun system: famous brand TBI welding gun.
4. Welding gun cleaning and wire cutting system: TBI brand.
5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600 rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.
6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.
7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.
8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.
Specifications for 5 robot arm models:
| Model | HS-R6-08 | HS-R6-10 | HS-R6-20 | HS-R6-50 | HS-R6-165 | |
| DOF | 6 | |||||
| Driving Mode | AC Servo Driving | |||||
| Effective Load | 8KG | 10KG | 20KG | 50KG | 165KG | |
| Repeat Accuracy | ±0.05mm | |||||
| Working radius | 1400mm | 1589mm | 1595mm | 1950mm | 2483mm | |
| Weight | 180KG | 180KG | 290KG | 600KG | 1300KG | |
| Motion Range(°) | J1 | ±170 | ±170 | ±170 | ±180 | ±180 |
| J2 | ±120~-85 | ±120~-80 | ±132~-95 | ±130~-90 | ±80~-60 | |
| J3 | ±85~-165 | ±85~-165 | ±73~-163 | ±75~-210 | ±80~-190 | |
| J4 | ±180 | ±180 | ±180 | ±360 | ±360 | |
| J5 | ±135 | ±135 | ±133 | ±115 | ±115 | |
| J6 | ±360 | ±360 | ±360 | ±360 | ±360 | |
| Max Speed(°/s) | J1 | 130 | 130 | 147 | 158 | 100 |
| J2 | 130 | 130 | 100 | 149 | 90 | |
| J3 | 130 | 130 | 135 | 130 | 104 | |
| J4 | 270 | 270 | 300 | 215 | 144 | |
| J5 | 170 | 170 | 198 | 251 | 160 | |
| J6 | 455 | 455 | 194 | 365 | 215 | |
| Power | 4KVA | 4KVA | 6KVA | 14KVA | 31KVA | |
| Voltage | 380V or 220V | |||||
| Frequency | 50Hz or 60Hz | |||||
Descriptions of welding robots.
1. According to the request of the welded products, we design the robot using a six-axis frame equipped with tig/mig welders to complete the welding automatically.
2. The welding robot uses cylinder or clamp and utilizes the leverage principle to fix product. In this way, can meet the requirements for automatic welding and make sure robot can weld each part of the product.
3.According to the production efficiency requirement, we design two sets of fixtures. One is used for loading the work pieces, the other is used for welding. Improving welding quality and welding efficiency.
The Welding Robot workstation & fixture can be designed according to your products, below is 3 classic models.
Clear robot arm programming remote.
Welding samples for steel, stainless steel, aluminum,etc.
