Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
HS-HC-1.1-7
Contact Us
Video

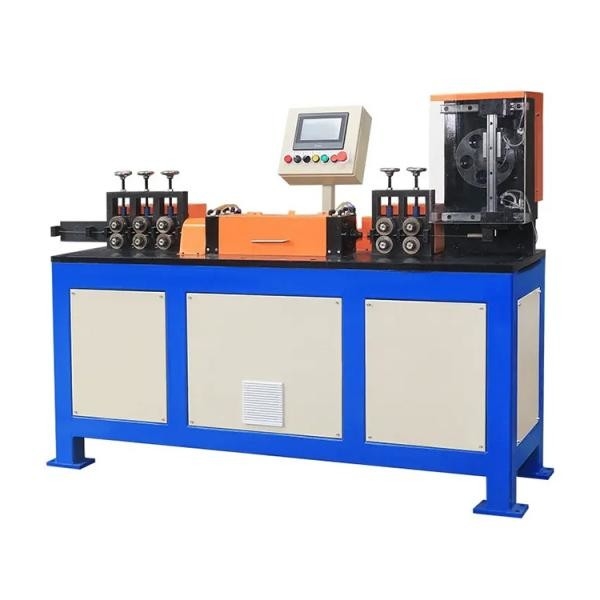

High Speed Wire Straightening and Cutting Machine is developed and designed by our company. The speed of wire feeding reaches 120m/min which is 5 times higher than the normal speed wire cutting machine. Cut off length error reaches ±0.5mm. The length is automatically adjusted by the machine. Man-machine integrated touch screen control system. Output preset and shortage alarm can be set. The efficiency of this machine is three or four times higher compared to the traditional wire straightening and cutting machine. At the same time, the adjustment is more convenient and the precision of cutting is higher. It can improve efficiency and save manpower for production line. Widely used in iron wire, stainless steel wire, galvanized wire, aluminum wire and other metal wire processing. The equipment structure is reasonable, stable and reliable, simple operation, high degree of automation. One operator can manage multiple machines at the same time, greatly improving production efficiency.
|
|
|
Sufficient Stock Machine We have more than 100 sets of machine in stock. We can deliver the machines within 1 week after you confirming the order.
|
Reasonable Rotary Straightening Structure Reliable and stable straightening and cutting structure. Easy to maintain. Only need to input the cutting length, then machine will run automatically. |
|
|
|
Horizontal Decoiler Suitable for small wire coil within 1.5mm. Be able to load about 300kg wire coil. |
1 Ton Motor Type Decoiler Suitable for wire coil more than 2mm. Driven by motor. Match with high speed wire cutting machine |
Specification
|
Model |
HS-HC-1.1-1.5 |
HS-HC-1.6-3 |
HS-HC-3-5 |
HS-HC-5-7 |
|
Input Power |
AC380V(50Hz/60Hz) |
|||
|
Suitable Wire Material |
Normal low carbon steel wire/stainless steel wire/galvanized steel wire/copper coated steel wire |
|||
|
Air Pressure |
0.5-0.6Mpa |
|||
|
Wire Diameter |
1.1-1.5mm |
1.6-3mm |
3.0-5.0mm |
5.0-7.0mm |
|
Cutting Length |
50-5000mm |
|||
|
Max. Cutting Speed |
Max. 120pcs/min |
Max. 120pcs/min |
Max. 110pcs/min |
Max. 100pcs/min |
|
Wire Speed |
120m/min |
100m/min |
80m/min |
60m/min |
|
Cutting Precision |
±0.5mm (except for accelerate and decelerate) |
|||
|
Operation System |
PLC Touch Screen |
|||
|
Running Mode |
Automatic |
|||
Application and samples
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
