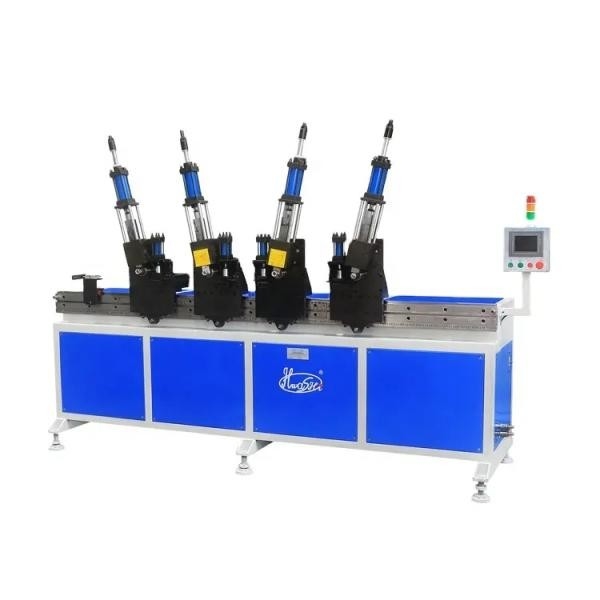

Round Wire, Flat Wire, Stainless Steel, Mild Steel Wire Frame Bending Machine
Product description
Round Wire Flat Wire Stainless Steel Mild Steel Wire Frame Bending Machine is Suitable for bending the flat wire and round wire frame, frame size within 650x650mm (can be customized) which can bending 4 wires at one time. The machine adopts the special design vertical structure body, and adopt the hydraulic press and oil cylinder as the bending pressure source, the pressure is strong. The device can realize the automatic bending of wires. It can improve the product quality and reduce the production cost. In this situation, the problem of unstable quality and low production efficiency caused by pure manual operation has been solved.
|
|
|
Intelligent Touch Screen Control System Automatic bending by inputting coordinate data of bending sequence. Easy operation.
|
Vertical Bending Hydraulic Head Use four heads for bending the frame. Manual loading the precut straightened wire onto the machine, it will automatically finish bending at one time. High efficiency. |
|
|
|
Easy Adjustment Slide Rail Use high quality slide rail with meter. Easy to adjust the hydraulic cylinder to desired position and bend the frame into required size. |
Bending Effect 90 degree bending with good bending surface. Wire frame will not be deformed after bending.
|
|
Technical Data of Wire Frame Bending Machine
|
||
|---|---|---|
|
No.
|
Items
|
Data
|
|
1
|
Wire Diameter
|
2-5MM( strength of extension≤500N)
|
|
2
|
Axis Number
|
4 axis
|
|
3
|
Oil Cylinder Number
|
10 pieces
|
|
4
|
Oil Press Machine
|
4 sets
|
|
5
|
Working Cycle
|
15s
|
|
6
|
Max. Bending Number
|
4pcs
|
|
7
|
Slide Rail Length
|
2000mm
|
|
8
|
Main Body Voltage
|
Three-phase 380V(can be customized)
|
|
9
|
Main Machine Size
|
4000mmx1200mmx1700mm
|
Application and samples
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
Specification
Other Machines Related to Wire Shelf Production Line Composition
We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.
|
|
|
Wire Shelf Automatic Welding Machine This is the full automatic wire shelf welding machine which can do automatic wire filling, welding and unloading. We can design the welding machine according to your product and efficiency requirement. |
High Speed Wire Straightening and Cutting Machine This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost. |
|
|
|
Wire Frame Bending Machine This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate. |
Wire Frame Butt Welding Machine The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively. |
|
|
|
Wire Frame Double T-Butt Machine This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application. |
Wire Edge Trimming Machine After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.
|
|
|
|
2D Wire Handle Bending Machine This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould. |
3D Wire Bending Machine This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould. |
