Place of Origin:
CHINA
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-YB-12
Contact Us
Video

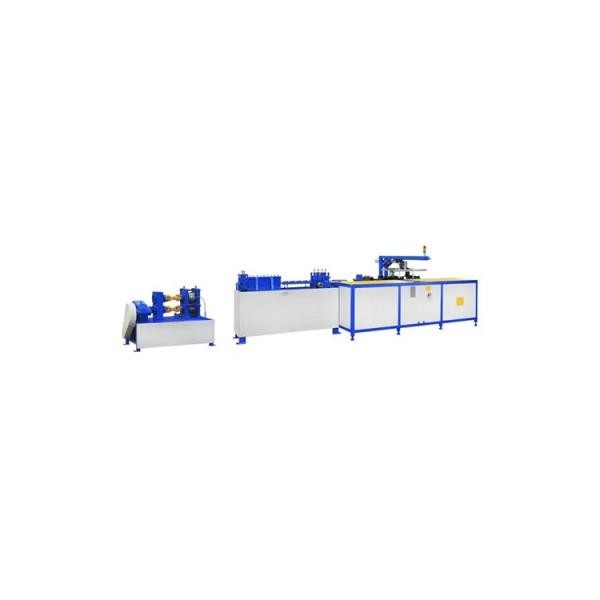

Mild Steel Wire Flattening, Straightening and Cutting Machine for Flat Wire Frame
Product description
Mild Steel Wire Flattening, Straightening and Cutting Machine for Flat Wire Frame is special for forming the low carbon steel round wire into flat wire. (Hardness of wire is no more than HRC43). The maximum processing wire is 8mm round wire into 3x12mm wire. After flattening, the surface of wire is smooth. No trace of calendering can be seen after plating.
The thickness tolerance is ±0.1mm while the width tolerance is ±0.2mm, length tolerance is ±2mm. This Wire Flattening, Straightening and Cutting Machine for forming, straightening and cutting of round wire into flat wire. It is composed of feeder, three sets of wire flattening device and one straightening and cutting device. You can set different length according to requirement. It helps to increase the product quality and efficiency. Lower the production cost.is special for forming the low carbon steel round wire into flat wire. (Hardness of wire is no more than HRC43)
|
|
|
Input Round Wire into Rolling Machine You may input the round wire from wire coil and the rolling machine will roll the round wire into flat wire |
Flattening Roller Machine The machine includes 3 sets of flattening device which will form the round wire into flat wire into 3 steps |
|
|
|
Flat Wire Forming as per Required Size The final flat wire will be formed according to your special requirement. Normally it will be 10x2mm, 12x3mm, 2.5x14mm, etc |
Flat Wire Straightening and Cutting Device |
Application and samples
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
Specification
Other Machines Related to Wire Shelf Production Line Composition
We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.
|
|
|
Wire Shelf Automatic Welding Machine This is the full automatic wire shelf welding machine which can do automatic wire filling, welding and unloading. We can design the welding machine according to your product and efficiency requirement.
|
High Speed Wire Straightening and Cutting Machine This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost. |
|
|
|
Wire Frame Bending Machine This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate. |
Wire Frame Butt Welding Machine The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively. |
|
|
|
Wire Frame Double T-Butt Machine This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.
|
Wire Edge Trimming Machine After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.
|
|
|
|
2D Wire Handle Bending Machine This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould. |
3D Wire Bending Machine This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould. |
