HWASHI CNC 3 Axis 2D Wire Welding Bending Machine PLC Hydraulic Bending Type

Stainless Steel Mild Steel Wire 2D Bending Machine and Welding Machine

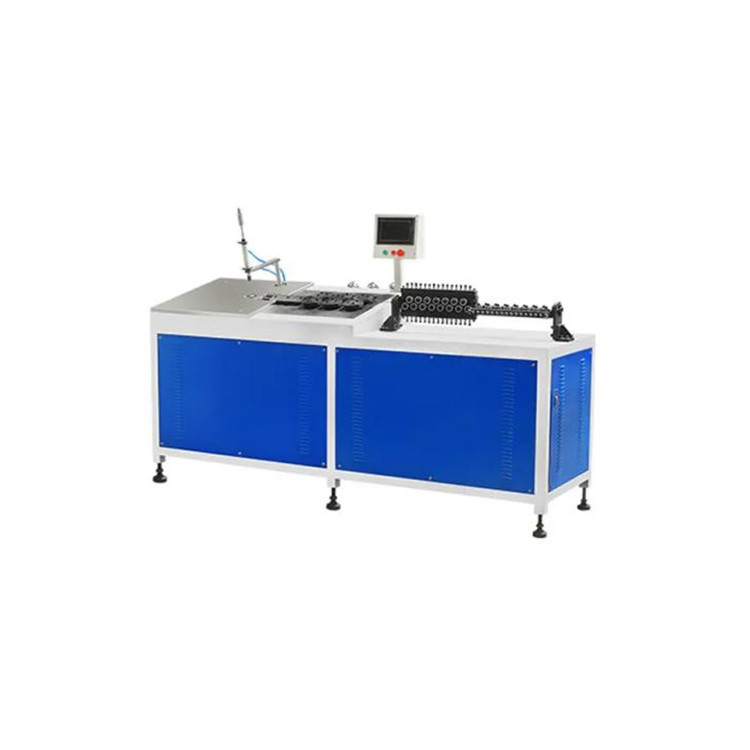

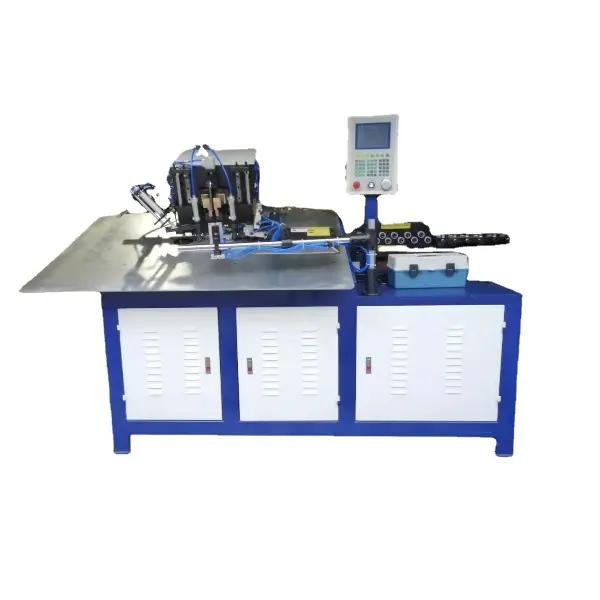

2D Bending and Welding Machine	2D Bending, Welding and Grinding Machine

Product description

Automatic 2D bending Machine design three-axis structure which includes the wire straightening mechanism, cutting mechanism, line pressing mechanism and forming mechanism; The straightening mechanism adopts multiple sets of rollers to press up and down and left and right for straightening. The structure ensures light scratches on the surface of the metal wire, and ensures the straightening of the metal wire and the base formed by bending in half. By using servo Drive wire feeding wheel to move the wire forming position, it can move forward and backward according to the program; Forming mechanism through the folding Angle of the bend, with the work of the wire feeding mechanism, the wire bending into a plane shape; Automatic operation of the equipment after loading. The equipment structure is reasonable, stable and reliable, simple operation, high degree of automation, operators can manage multiple machines at the same time, greatly improve the production efficiency, hardware, network cable manufacturers and other necessary special equipment.

Intelligent Bending Control System Automatic bending by inputting coordinate data of bending position. Easy operation.	Straightening Roller Use to straightening the feeding wire. Be able to process the wire diameter 2mm to 12mm.

Automatic Welding Structure Be able to install the automatic welding device, so as to achieve automatic bending and welding at the same time. Especially suitable for wire frame making. High efficiency.	Automatic Grinding Structure Be able to grind the joint edges after welding. So no need second time processing. Automatic bending, welding, and grinding at the same time.

Application and samples

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Specification

Other Machines Related to Wire Shelf Production Line Composition

We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.

Wire Flattening and Cutting Machine This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length. Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.	High Speed Wire Straightening and Cutting Machine This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.

Wire Frame Bending Machine This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.	Wire Frame Butt Welding Machine The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Wire Frame Double T-Butt Machine This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.	Wire Edge Trimming Machine After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.

2D Wire Handle Bending Machine This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.	3D Wire Bending Machine This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.

Factory & Certificate

HWASHI-22 years+ experience welding solutions expert
Guangdong Hwashi Technology Inc. which was established in 2001, is located in Huizhou, Guangdong province in China. We are the high-tech enterprise which is specialized in developing, manufacturing, and selling of resistance welding machine, automatic welding machine and industrial robot station. We have total two manufacturing plants covering an area about 60000 square meters. There are about 200 staffs in Hwashi, and among which there are more than 20 mechanical and electrical engineers. Most of our engineers got more than 10 years experience in welding industry. Until now, we got more than 70 patents regarding the welding machine projects. Our machines have been exported to more than 70 countries in the world. And we have local distributor in Russia, Turkey, Romania, Saudi Arabia, Malaysia, Indonesia, India, and USA, etc. who will provide you professional pre-sales and after-sales service in local.

Certifications

We have passed the international certifications such as CE certification, ISO9001 quality management system certification, Alibaba enterprise certification and design patents.

After-sales service & Customer visiting
1. Spot welding machine 1 years warranty except consumable parts
2. Plenty of technical support online is available
3. Quick Back-up Parts Available & Technical Assistance
4. " Training Video ","Instruction Book", and "Operation Manual " will be offered

Packing & Delivery

Acceptable delivery terms
EXW, FOB, C&F, CIF, DDU, DDP
Quality Control
Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of welding products.
Professional package
1. Whole film packaging machine
2. Anti-collision package edge
3. Wooden box and pallets with iron binding belt

Service Team & feedback
Professional Team
Over the years, Hwashi has cultivated a large number of talented, dedicated and innovative Hwashi people. We have a professional team of experts with rich experience in electrical engineering, mechanical design and welding technology.

Since its establishment 22 years ago, hwashi technology has traveled to all corners of the world, participated in more than 100 exhibitions and served more than 8,000 customers
