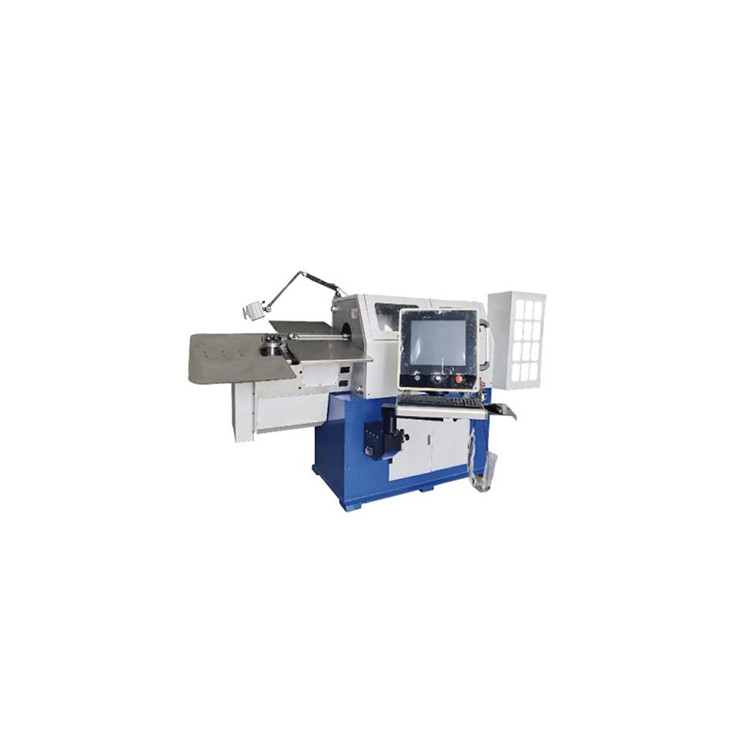

CNC 7 Axis 3D Bending Machine for 2-6mm 3-8mm 5-12mm wire
Product description
CNC 7 Axis 3D Bending Machine for 2-6mm 3-8mm 5-12mm wire is used for iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat line), which will be suitable for bending the shape like square, round, hexagonal, oval with irregular shape and a variety of flat buckle, and all kinds of hooks.
Features
1. Computer startup, shutdown speed is fast, simple and convenient to operate, support multi-language operation, the computer interface can adjust the speed and change the program at the same time of production.
2. The configuration adopts the imported high-precision and high-speed servo motor, imported reducer, stable and durable
production speed which is 30% higher than the domestic counterparts of the same kind of products.
3. The production process can achieve no change in the Angle when the Angle is folded at different speeds, and the production stability is better.
4. Bearings, gear and other important parts of the imported parts, 9125 hours of warranty, durable and reliable equipment.
5. High precision, can be made within the range of 3.0-8.0 mm wire diameter products, the error is reduced to 0.1mm
|
|
|
Intelligent Bending Control System Automatic bending by inputting coordinate data of bending position. Easy operation |
Straightening Roller Use to straightening the feeding wire. Be able to process the wire diameter ranging from 2-6mm, 3-8mm and 5-12mm |
|
|
|
Cam Type 3D Bending Machine We will recommend you the suitable bending machine as per your product desig |
Cam-Free 3D Bending Machine We will recommend you the suitable bending machine as per your product design. |
|
Technical Data of 3D Wire Bending Machine |
|||
|
Model |
CNC-HS-7-80 |
CNC-HS-7-60 |
|
|
Wire diameter |
3.0-8.0mm |
2.0-6.0mm |
|
|
Axis number |
7 axis |
7 axis |
|
|
Wire feed length |
infinite |
infinite |
|
|
Maximum wire feed speed |
100m/min |
100m/min |
|
|
Maximum feed length |
Infinite |
Infinite |
|
|
Wire feed instruction value |
±0.01-±9999.99 |
±0.01-±9999.99 |
|
|
Wire feed shaft servo power |
2.7KW |
2.7KW |
|
|
Wire switching shaft servo power |
2.7KW |
1.2KW |
|
|
Torsion shaft servo power |
2.7KW |
0.75KW |
|
|
Lifting platform servo power |
2.7KW |
0.75KW |
|
|
Cutting shaft servo power |
2.7KW |
0.75KW |
|
|
Torsion lifting platform servo power |
2.7KW |
0.75KW |
|
|
Core-switching shaft servo power |
2.7KW |
1.2KW |
|
|
Input voltage |
380V |
380V |
|
|
Computer specifications |
Industrial computer |
Industrial computer |
|
|
Process data storage |
More than 2000 |
More than 2000 |
|
|
Air pressure system |
Air pressure |
5-6KG/cm |
5-6KG/cm |
|
Probe |
Three |
Three |
|
|
Machine size |
Length |
4100mm |
2900mm |
|
Width |
2000mm |
900mm |
|
|
Highly |
1900mm |
1800mm |
|
|
Machine weight |
4300KG |
3000kg |
|
Application and samples
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
Specification
Other Machines Related to Wire Shelf Production Line Composition
We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.
|
|
|
Wire Flattening and Cutting Machine This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.
|
High Speed Wire Straightening and Cutting Machine This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.
|
|
|
|
Wire Frame Bending Machine This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate. |
Wire Frame Butt Welding Machine The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively. |
|
|
|
Wire Frame Double T-Butt Machine This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application. |
Wire Edge Trimming Machine After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.
|
|
|
|
2D Wire Handle Bending Machine This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould. |
3D Wire Bending Machine This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould. |
