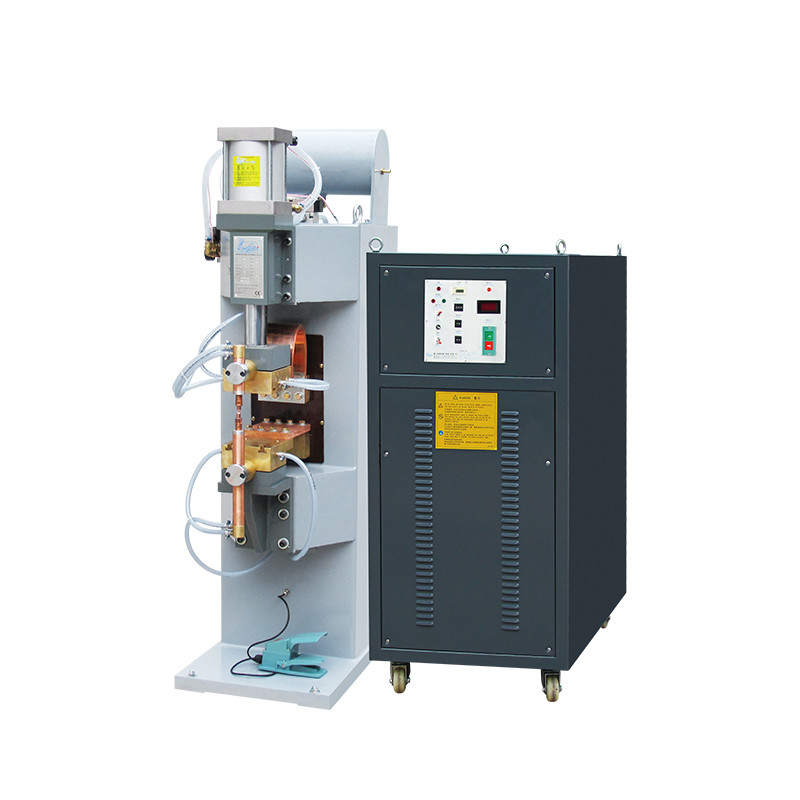

Hwashi Glass Lid Steel Belt Inox Stainless Steel Spot Welding
A steel strip welding machine is a device used for joining, welding, or processing steel strips. They are widely used in various industries for diverse applications in production, manufacturing, and maintenance processes, ranging from construction to the manufacturing sector, as well as automotive, electronics, packaging, and other fields.
Our company produces the capacitor discharge spot welding machine which is suitable for steel strip welding within 25mm.
Features
Versatile Application: Capable of welding nonferrous metals such as stainless steel, aluminum, titanium, silver, etc. It effectively addresses challenges in welding dissimilar metals like bronze and aluminum.
Robust and Aesthetically Pleasing: Ensures strong welds without leaving a black coating on the welding spots, eliminating the need for polishing. Particularly suitable for welding products destined for export, meeting high standards of appearance.
Energy-Efficient: This machine draws low surge power from the power grid and maintains a high power factor. In comparison to common AC machines with similar capabilities, it consumes only 1/7 to 1/10 of the power, resulting in significant energy and cost savings.
Intelligent welding control system Intelligent Touch Screen Controller Input and read |
Raw materials made to standard Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding. |
Custom processing of electrodes Customized Electrodes which will be suitable forWelding material like steel, aluminium, silver, stainless Steel, and nickel steel. |
Shape structure and welding method Design the right machine shape and mold according tothe welding product. |
Features of The Capacitor Discharge Spot Welding Machine
1. No black coating after welding. No need polishing process.
2. Be able to achieve full automatic welding, labor cost saving.
3. High efficiency, and stable welding quality.
Specification
Model |
Input Voltage | Input Power | Output Heat | Capacitance | Electrode Force | Electrode Stroke | Steel Belt Width |
WL-C-5K | 380V | 5KVA | 3000J | 28000uF | 350kg | 80mm | 15mm |
WL-C-7K | 380V | 7KVA | 4500J | 42000uF | 800kg | 100mm | 16-25mm |
WL-C-10K | 380V | 10KVA | 6000J | 60000uF | 1000kg | 100mm | 26-30mm |
WL-C-12K | 380V | 12KVA | 7000J | 70000uF | 1000kg | 100mm | 30-35mm |
WL-C-15K | 380V | 15KVA | 8000J | 80000uF | 1000kg | 100mm | 36-40mm |
WL-C-20K | 380V | 20KVA | 15000J | 150000uF | 1500kg | 100mm | 41-50mm |
