Galvanized Steel Sheet Table Spot Welding Machine HWASHI MF DC Flexible Arm 65A

Galvanized Steel Sheet Table Spot Welding Machine HWASHI MF DC Flexible Arm 65A

Galvanized Sheet Table Spot Welding Machine

DC Flexible Arm Spot Welding Machine

65A Spot Welding Machine

Place of Origin:

Guangzhou Hwashi Technology INC

Brand Name:

Hwashi

Certification:

CE, ISO, GS, CCC

Model Number:

WL-SMF-100K

Contact Us

Request A Quote
Product Details
Rated Capacity:
100KVA
Rated Duty Cycle:
50%
Max. Welding Thickness:
3+3mm
Usage:
Welding Of Metal Plate
Input Voltage:
380V,3 Phases Can Customized
Input Current:
65A
Effective Size Of Welding Platform:
800 Mm X 800 Mm
Max.range Of Crank Moving:
1000mm
Weight (KG):
600 KG
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
wooden packaging
Delivery Time
15 working days
Payment Terms
L/C, T/T
Supply Ability
30 sets per month
Product Description

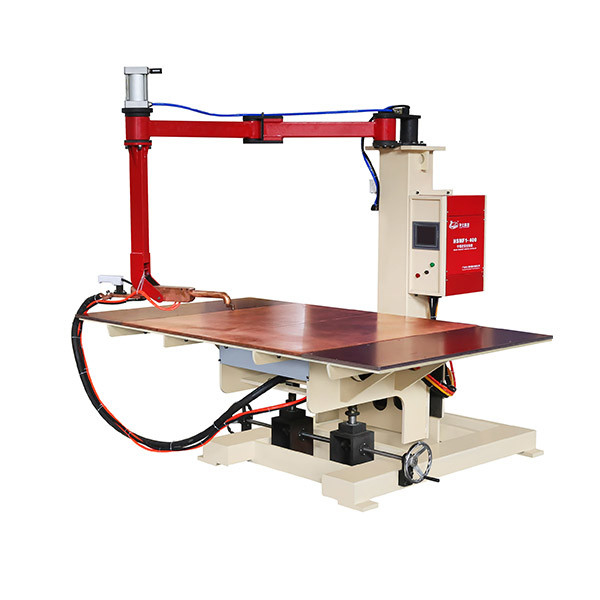

HWASHI MF DC Flexible Arm Galvanized Steel Sheet Table Spot Welding Machine

Galvanized Steel Sheet Table Spot Welding Machine HWASHI MF DC Flexible Arm 65A 0

Product Description:

The Crank-arm Manual Mobile Spot Welding Machine with Flat Table uses principle of robotic arm. Multiple elbow robotic arm adopts manual mobile mode to be moved to welding position as per welding requirement. The machine is of easy operation, convenient and flexible to use. The welding characteristic is that it adopts double-side single point welding mode, with full flat table as lower welding electrode. It is applicable for welding multiple-point product on flat surface. It can effectively guarantee smooth welding on product surface and consistency of welding spots. According to your requirement: the max welding thickness is 3mm+3mm. 100KVA power source is recommended. The flat table size is 1500 x900mm.

Features

1. The movement patterns of crank arm mobile flat plate spot welder can be chosen as manual or CNC automatic mobile type.

2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.

3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement.

4. Automatic device adopts the axis X, Y of mobile working table, utilizing the PLC to store setting mobile program. Simple and convenient setting.

5. Adopt direct single-point welding method. The lower electrode is designed as complete flat, which is suitable for welding of flat plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spots.

Applicable Area:

Welding of metal plates, especially good for welding of computer cases, electric control cabinet, office cabinet and automobile metal plates.

Galvanized Steel Sheet Table Spot Welding Machine HWASHI MF DC Flexible Arm 65A 1Galvanized Steel Sheet Table Spot Welding Machine HWASHI MF DC Flexible Arm 65A 2

Technical Parameter:

S.N Items WL-SMF-40K WL-SMF-50K WL-SMF-75K
1 Input voltage 380V,3 phases 380V,3 phases 380V,3 phases
2 Input current 65A 80A 80A
3 Output voltage 8.5V 10V 12V
4 Max.Welding Current 15000A 18000A 26000A
5 Welding Specification 18 kinds 18 kinds 18 kinds
6 Different Welding Current 6 kinds 6 kinds 6 kinds
7 Effective size of welding platform 800mmx800mm 800mmx800mm 2000mmx800mm
8 Max.range of Crank moving 1000mm 1000mm 1200mm
9 Max.angle of Crank moving 180° 180° 180°
10 Adjusting rang of platform height 0-200mm 0-200mm 0-200mm



Galvanized Steel Sheet Table Spot Welding Machine HWASHI MF DC Flexible Arm 65A 3Galvanized Steel Sheet Table Spot Welding Machine HWASHI MF DC Flexible Arm 65A 4
