Place of Origin:
Guangzhou Hwashi Technology INC
Brand Name:
Hwashi
Certification:
CE, ISO, GS, CCC
Model Number:
WL-SMF-100K
Contact Us

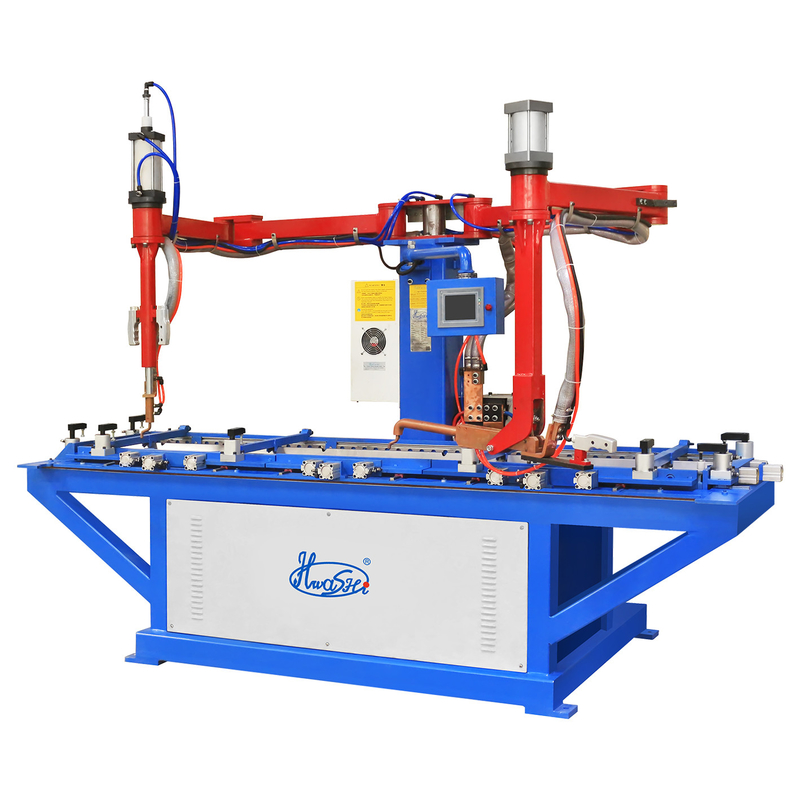

HWASHI MF DC Roof Type and Suspended Gun Spot Welding Machine
Product Description:
The MF DC Roof Type and Suspended Gun Spot Welding Machine utilizes a robotic arm principle. The multi-jointed robotic arm can be manually moved to welding positions based on welding needs. This machine is designed for ease of operation, offering convenience and flexibility. The welding technique employed is a double-sided single-point welding mode, with a full flat table serving as the lower welding electrode. It is well-suited for welding multi-point products on flat surfaces. This approach ensures smooth welding on the product surface and maintains consistency in welding spots.
According to your specifications, the maximum welding thickness is 3mm + 3mm. We recommend using a 100KVA power source. The dimensions of the flat table are 1500 x 900mm.
Features
1. The movement patterns of crank arm mobile flat plate spot welder can be chosen as manual or CNC automatic mobile type.
2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.
3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement.
4. Automatic device adopts the axis X, Y of mobile working table, utilizing the PLC to store setting mobile program. Simple and convenient setting.
5. Adopt direct single-point welding method. The lower electrode is designed as complete flat, which is suitable for welding of flat plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spots.
Applicable Area:
Welding of metal plates, especially good for welding of computer cases, electric control cabinet, office cabinet and automobile metal plates.
Technical Parameter:
|
