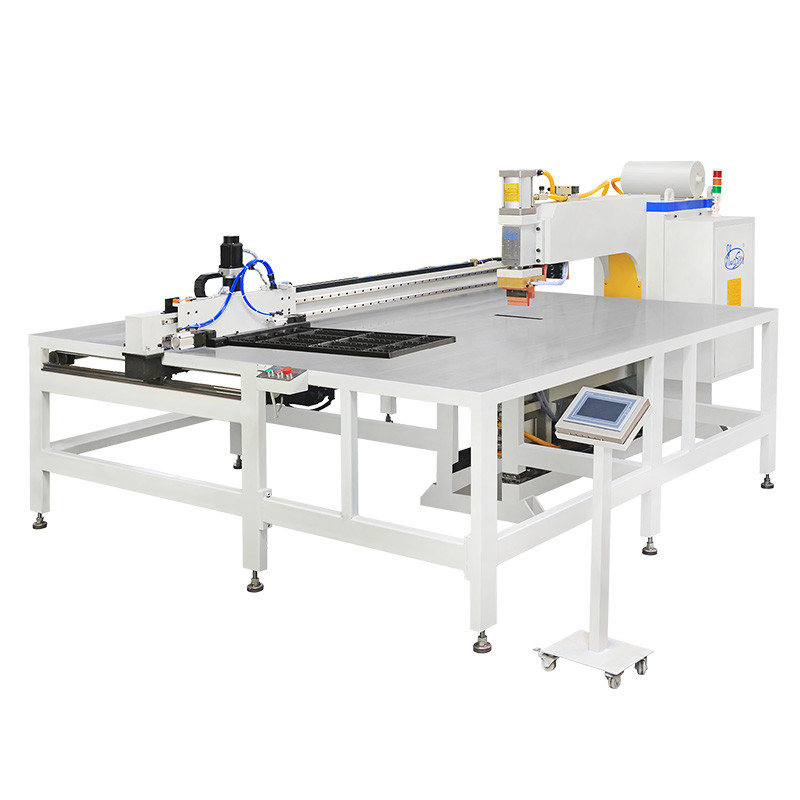

HWASHI CNC Spot Welder , Wire Storage Basket Welding Machine
Characteristics:
Versatile Welding Electrodes: Equipped with multiple welding electrodes for varied applications.
Manual Wire Loading: Allows manual loading of wires.
Automatic Feeder and Welding: Features automatic feeder and welding for streamlined operations.
Dual Power Supply System: Utilizes a double power supply system for enhanced performance.
Dual Electrode Operation: Enables two electrodes to work simultaneously in alternating cycles.
Double-Layer Feeder: Supports continuous wire loading, ensuring uninterrupted machine operation.
High Efficiency, High Precision: Delivers exceptional efficiency and precision.
Wide Application Range: Suitable for wire mesh up to 1200mm in width, with unrestricted length.
This machine represents advanced automation with a focus on efficiency and precision, making it suitable for a wide range of wire mesh applications.
|
|
|
Intelligent welding control system Automatic welding by inputting coordinate data of welding position, welding current and other data. |
Special product molds welding platform Processing and production according to the size of each mesh product |
|
|
|
X.Y axis moving device Equipped with automatic movement of the workpiece mold along X and Y axes, only manual swinging and removal of the workpiece is required |
Single head long arm type welding The equipment adopts single head long arm type welding structure, can be customized according to the needs of the workpiece double row or multi-row welding head |
Specification
|
Model |
WL-TSP-100/150K |
|
Input Power (V/φ) |
380/3 |
|
Rated Power (KVA) |
100/150 |
|
Applicable Material |
Stainless Steel, Carbon steel, Aluminum, Metal |
|
Electrode Force (KG) |
250-400 |
|
Wleding Thickness (MM) |
1-5mm |
|
Warranty |
1 years |
|
Mesh Welding Range |
1000mm X 1000mm |
XY axis automatic moving wire welding machine
The wire welding machine features a highly efficient servo motor-driven XY axis mold frame, utilizing a synchronous belt drive system. Controlled by the advanced control system, the machine enables precise control over the walking step length and speed. Once the manual material is securely fixed onto the mold frame, the switch is activated, and the industrial control computer takes charge. The product then undergoes automated welding as it alternately moves along the X and Y axes of the mold frame, seamlessly completing the welding process for each joint. Upon completion, the machine automatically returns to the origin without requiring additional manual intervention. This eliminates the need for additional personnel during the welding operation. Meanwhile, the operator can utilize the available time to set up the next material, optimizing efficiency and reducing labor costs. By effectively utilizing the welding time for material setup, the machine ensures maximum productivity and streamlines the overall workflow.
