Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE
Model Number:
WL-TSP-100/150K
Contact Us

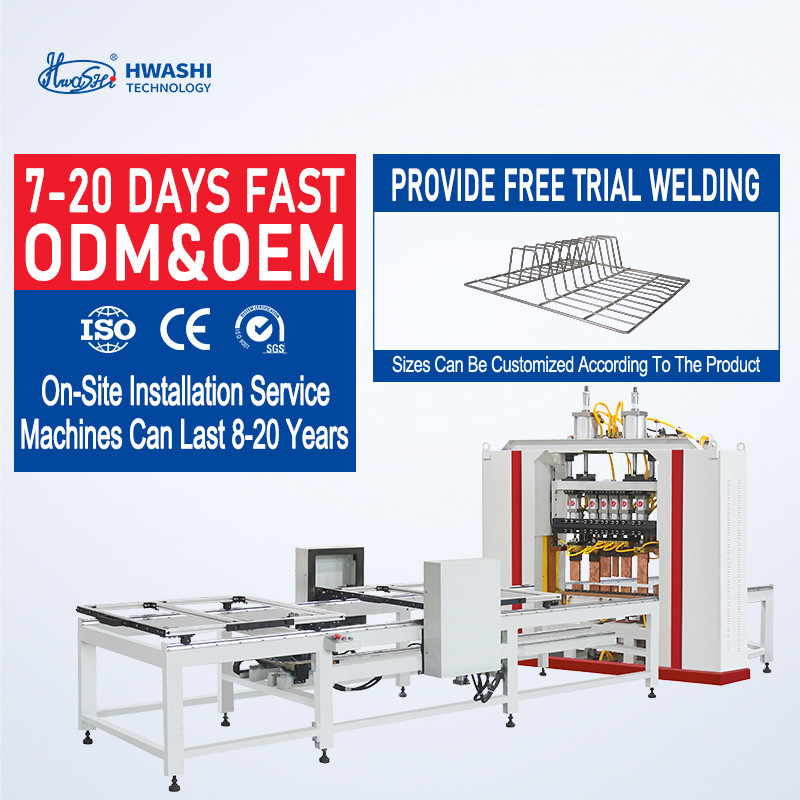

Hwashi Wire Mesh Welding Machine For Animal Cages Automatic Fast Metal Mesh Spot Welder
The wire mesh multi-head automatic welding machine introduces a cutting-edge approach to welding processes. It stands out by incorporating ten electrodes and a sophisticated automatic feeding system. The system ensures seamless wire integration, with wires dropping automatically into the fixture for a fully automated loading process. Subsequently, the machine autonomously carries out both feeding and welding operations.
What sets this machine apart is its one-way and double-layer feeding device, capable of dynamic forward and backward movement to accomplish welding tasks. The welding distance is customizable, adding a layer of flexibility to the welding process. This feature-rich machine is specifically tailored for batch production scenarios, especially ideal for wire mesh requiring multiple-point welding.
The welding methodology employed is a unique one-way double-layer automatic stepping feeding, utilizing 10 welding heads. This innovative approach results in an effective welding width of 1200mm and an effective welding length of 1000mm. The machine's composition includes a robust main machine body, welding transformer, pneumatic drive device, upper and lower electrodes, automatic wire filling device, an advanced electrical control system, cooling system, and a PLC operation control system.
This state-of-the-art wire welding machine not only ensures efficiency in batch production but also provides unparalleled adaptability and precision in welding operations, making it a standout solution in the industry.
Ideal for Various Industries:
Metal Fabrication: Perfect for welding metal components with precision and efficiency.
Construction: Streamline welding processes for structural components and frameworks.
Automotive: Achieve high-quality welds for automotive parts with ease.
Custom Projects: Adapt the machine to your specific project needs, from prototyping to large-scale production.
Intelligent welding control system Automatic welding by inputting coordinate data of welding position, welding current and other data. |
Special product molds welding platform Processing and production according to the size of each mesh product |
X.Y axis moving device Equipped with automatic movement of the workpiece mold along X and Y axes, only manual swinging and removal of the workpiece is required |
Single head long arm type welding The equipment adopts single head long arm type welding structure, can be customized according to the needs of the workpiece double row or multi-row welding head |
Specification
Model |
WL-TSP-100/150K |
Input Power (V/φ) |
380/3 |
Rated Power (KVA) |
100/150 |
Applicable Material |
Stainless Steel, Carbon steel, Aluminum, Metal |
Electrode Force (KG) |
250-400 |
Wleding Thickness (MM) |
1-5mm |
Warranty |
1 years |
Mesh Welding Range |
1000mm X 1000mm |
