HWASHI EI Lamination Stacking Machine MIG Welder
DESCRIPTION
The machine is designed as automatic assembly welding for transformer E, I pieces assembly. After clamping by the cylinders and being fixed, the welding gun will enter into welding area at constant speed under the effect of servo motor. Then the welding gun will finish the welding process. In order to achieve higher automatic, we designed the machine with feeding and discharging conveyer belt. It can help to save more labor force and increase production rate.
This proposal is the upgraded version for welding this product. It is designed to use servo motor as the driving force for welding gun. The advantage is: more stable, simple maintenance, easier to control the speed. Disadvantage: more accuracy requirement to the mechanical driving position.
DETAILED PHOTO
|
|
Welding Power SourceAdopt 3 sets of Japan Panasonic YC-400TX TIG welder as the welding power source with stable and good welding quality. (or other brand as you request)
|
|
|

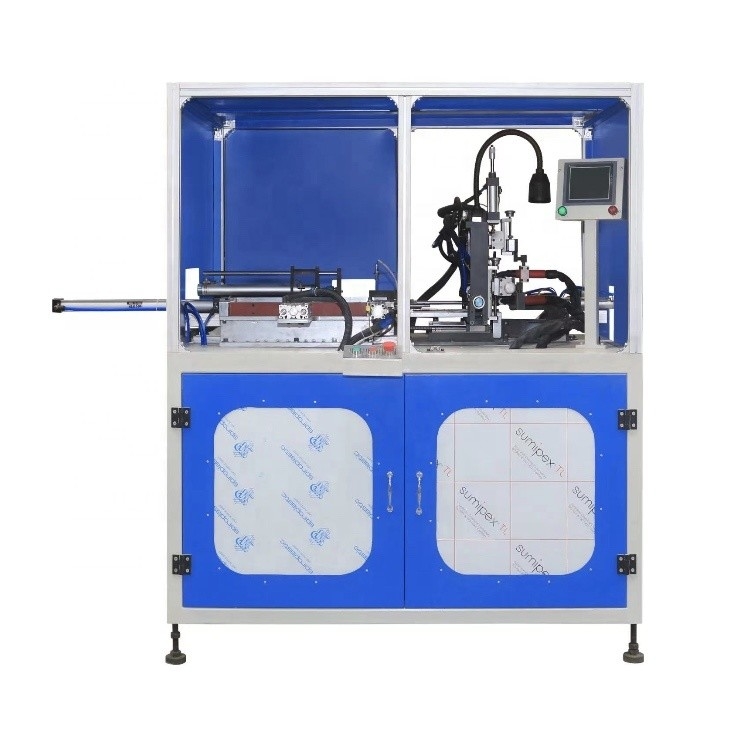

Servo Drive Automatic Moving Welding GunThe welding gun will be driven automatically to complete the straight seam welding on the EI lamination core. The number of the gun required depends on the product
|
|
|
Automatic Loading and unloading ConveyorThe product will be loaded to the welding position automatically. And after welding, the product will be pushed back and unloaded automatically. So as to achieve full automatic process and save labor force.
|
|
|

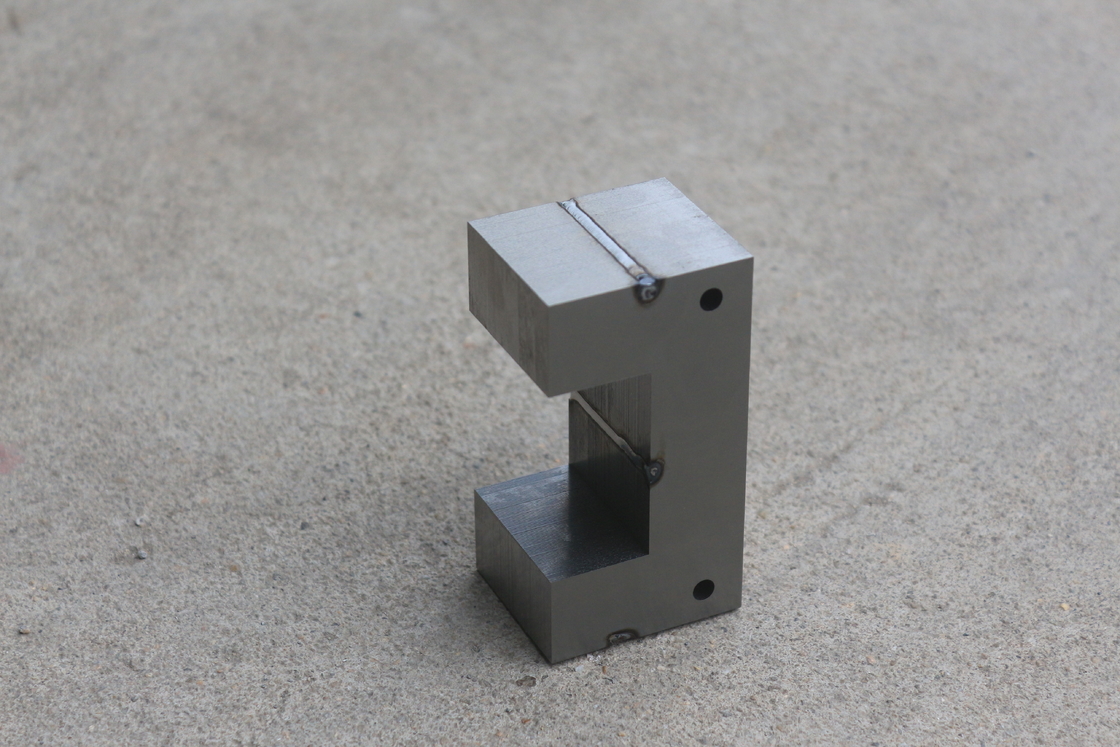

Final EI Lamination Core SampleOne time welding with high efficiency. Stable welding quality. No need experienced welding operator. Save labor cost.
|
TECHNICAL PARAMETERS
|
No.
|
Items
|
Data
|
|
1
|
TIG Welder Number
|
2-3 (as per product drawing)
|
|
2
|
Welding Gun Moving Distance
|
18-120mm (as per product drawing)
|
|
3
|
Cylinder Types
|
3 (horizontal, vertical, upper clamping)
|
|
4
|
Feeding Conveyor Length
|
1200mm
|
|
5
|
Welding Speed
|
10mm/sec
|
