100KVA PLC Controlled Three-Phase Medium Frequency DC Spot Welding Machine

100KVA PLC Controlled Three-Phase Medium Frequency DC Spot Welding Machine

    • 100KVA PLC Controlled Three-Phase Medium Frequency DC Spot Welding Machine
    • 100KVA PLC Controlled Three-Phase Medium Frequency DC Spot Welding Machine
    • 100KVA PLC Controlled Three-Phase Medium Frequency DC Spot Welding Machine
  • 100KVA PLC Controlled Three-Phase Medium Frequency DC Spot Welding Machine

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-MF-100K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description

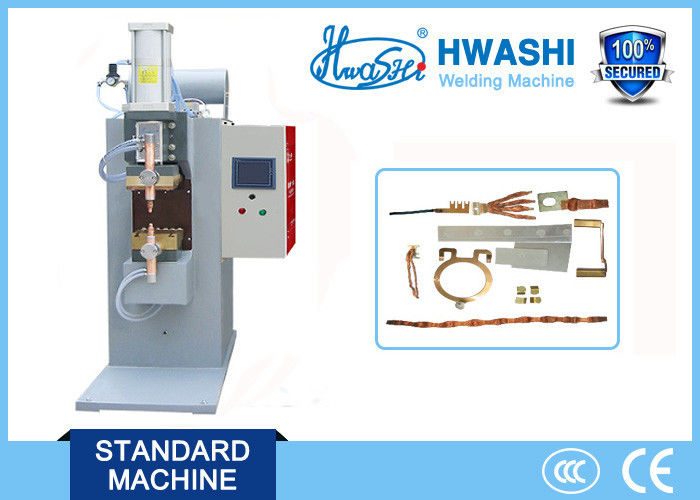

    Product Name: 100KVA PLC Controlled Three-Phase Medium Frequency DC Spot Welding Machine Application: Welding For All Kinds Of Metal Product
    Size: 800x1300x1780mm Weight: 450kg
    Condition: New Warranty: 12 Months
    Standard: CE/CCC/ISO Service Life: 8-10 Years

    100KVA PLC Controlled Three-Phase Medium Frequency DC Spot Welding Machine


    SPECIFICATION

    Items

    Specification

    Display

    5 Inches Blue Display Screen

    Rated Power

    100KVA

    Input Voltage

    AC 380V, 50Hz

    Duty Cycle Rate

    20%

    Maximum Short Circuit Current

    28000A

    Input Current150A
    Output VoltageDC11.6V

    Inverter Frequency

    1000Hz

    Welding Cycle Period

    11

    Welding Pulse Times

    3

    Current Slow Rise And Down Control

    Yes

    Stored Welding Models

    101

    Throat Depth

    300mm

    Cylinder Size

    ¢100x100mm



    DESCRIPTION
    Medium frequency inverter DC resistance control system: Refer to the following picture, the three-phase AC current has been rectified into DC. Then convert into medium frequency 1000Hz square wave and connected into primary of welding transformer through inverter circuit which is composed of IGBT. After the rectification through welding transformer, the current become DC with small pulsation and being supplied to electrode for welding. The inverter will adjust the duty cycle rate of IGBT according to the feedback of primary and secondary welding current so as to achieve constant current during welding process.

    100KVA PLC Controlled Three-Phase Medium Frequency DC Spot Welding Machine


    Compared with the normal AC controller, MF controller has the following advantages:

    1. The current in secondary welding loop is DC. Dramatically reduce the impact to the welding current due to the inductive reactance in secondary loop when conducting welding to the work piece.

    2. The weight of transformer is reduced greatly. It is light and convenient. The weight and size of the MF transformer is only 1/3 of the AC type transformer. Suitable for robot welding system.

    3. Prolong the service life of electrode

    4. Be able to weld material like aluminum, galvanized steel, etc. with good welding performance.

    5. Especially suitable for three-layer plate welding, ultrathin material welding and precision welding.

    6. Less splashes.

    7. Increase control of current and welding quality.


    100KVA PLC Controlled Three-Phase Medium Frequency DC Spot Welding Machine

     Touch Screen

    Central part of operation for input data, monitoring and storage

    Solenoid Valve Switch

    Manual switch on or off

     Emergency Stop Button

    When start, it will end the entire running program.
    Note: after pressing this button, you need to power on the machine again.

     Reset Button

    After stopping the program, press this button to reset.




    Medium Frequency Welding System Composition

    Welding Controller, transformer, and welding work piece.
    Welding controller includes the controlled rectifier, energy storage part, IGBT, power driving and central control part.



    APPLICATION
    Products like Sensor, LED and its lead, copper foil and vanished wire, relay, watch, capacitive slug and lead, copper wire, resistance pin, inductance, battery and stabilizer link, socket, silver contact and copper sheet, welding lightning with tungsten and molybdenum material, etc.


    FEATURE


    1. Electrc Saving: It can help to reduce the consumption of electric energy compared with normal AC machine. The transformer of the same weight could output more energy. It can also be conveniently used with the large automatic welding clamp.



    2. For semi-automatic machine, one medium frequency transformer can replace many low frequency transformers which can help to reduce the parallel connection in secondary circuit.



    3. Reduce the production cost by improving power factor.



    4. More adaptable to the fluctuation of power grid and voltage drop: a part of the energy has been stored by inverter and been supplied to load. It replaces the way of power supply to load directly from the power grid.



    5. More reliable process: For most of the applied resistance welding metals, to use DC to weld will help to achieve better effect.



    6. Reduce interference in secondary circuit which is in the large open area: the welding current is direct current. When there is induction or magnetic material in secondary winding, the welding will not be affected.



    7. More precise and fast control of current: Compare with low frequency system, it is able to analyze more parameters in a more precise way.



    8. To make the power supply unit load balance: MF inverter spot/projection welder adopts the three-phase sources which can store energy.



    9. The technology of MF system is more traditional and reliable which can prevent the damage results from the breakdown of silicon controlled.



    10. Reduce operation cost, including saving the energy of each spot welding and reducing the cycle of welding.



    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
