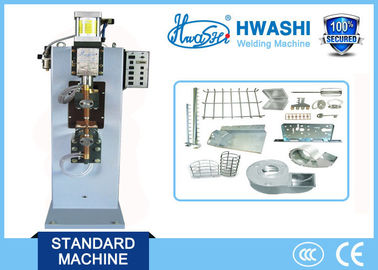

Aluminum Products Pneumatic Spot Welding Machine / Copper Projection Welding

Aluminum Products Pneumatic Spot Welding Machine / Copper Projection Welding

    • Aluminum Products Pneumatic Spot Welding Machine / Copper Projection Welding
    • Aluminum Products Pneumatic Spot Welding Machine / Copper Projection Welding
  • Aluminum Products Pneumatic Spot Welding Machine / Copper Projection Welding

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-S-25.35.50kx2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Aluminum Products Pneumatic Spot Welding Machine / Copper Projection Welding Application: Welding Inox Product
    Size: 480*900*1600mm Weight: 350kg
    Condition: New Warranty: 12 Months
    Standard: CE/CCC/ISO Service Life: 8-10 Years

     Aluminum Products Pneumatic Spot Welding Machine / Copper  Projection Welding


    DESCRIPTION

    Under the operation of transformer, pneumatic AC pulse spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved. The power of the pneumatic AC pulse spot welder that we produce is from 3KVA to 600KVA. It can be used to weld 10mm of iron and metals like stainless steel. Applicable to all kinds of hardware.

    Aluminum Products Pneumatic Spot Welding Machine / Copper Projection Welding


    FEATURE
    1. Welding Control System: The AC pulse spot welder that we produce can be matched with many types of welding controllers.

    WD-KD5: Intelligent microcomputer control; Multiple-section of discharge; It can be used to preheat, to weld, to reshape or to temper for special materials; Solve the problems of void welding or loose welding due to current shunt during the process of multiple projection welding; Especially suitable for welding high-carbon steel or special interlayer of metal plate; When the voltage of power supply is fluctuated, it can automatically compensate the current to weld.

    2. Silicon Controlled: Adopt the SEMIKRON from West Germany, IXYS or IR Silicon controlled from United States; High precision and durable; Be able to control the high stability of the magnitude of current.

    3.Pneumatic Control System:Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; Adopt the quick exhaust cylinder, quick response, good servo performance.

    4. Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good performance in permeability and electrical conductivity; Less consumption of electricity, the contribution of our welding machine is 15% higher than the other machines of the same quality from the same industry. Be able to weld the metal plates like 8mm+8mm low-carbon steel.

    5. Safety in Use: Strictly implement the security standard of China Compulsory Certification and CE of European Community.

    SPECIFICATION

    Model

    Input
    Voltage

    Input
    Power

    Output Current

    Pressurization

    Electrode
    Stroke

    Closure

    Platform
    Distance

    Electrode
    Distance



    Cooling
    Water

    V

    KVA

    A

    kg

    mm

    mm

    mm

    mm



    Lit/Min

    WL-S-16K

    380/1

    16

    10000

    300

    80

    -

    -

    -



    6

    WL-S-25K

    25

    12000

    300

    80

    -

    -

    -



    6

    WL-S-35K

    35

    16000

    350

    80

    -

    -

    -



    6

    WL-S-50K

    50

    19500

    500

    80

    -

    -

    -



    6

    WL-SP-25K

    25

    12000

    300

    80

    145-225

    250

    320-420



    6

    WL-SP-35K

    50

    16000

    350

    80

    145-225

    250

    320-420



    6

    WL-SP-50K

    50

    19500

    500

    80

    145-225

    250

    320-420



    6

    WL-SP-75K

    75

    24000

    1000

    100

    130-230

    260

    490-540



    8

    WL-SP-100K

    100

    34000

    1000

    100

    130-230

    260

    490-540



    8



    APPLICATION
    Iron wire products, hardware decorative lighting, kitchen utensils, automobile industry, small household appliances, small hardware, etc.

    COMPETITIVE ADVANTAGE
    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
    5. Quick Delivery: Our company provides just-in-time delivery.
    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.





              Aluminum Products Pneumatic Spot Welding Machine / Copper Projection Welding

                                                                        Aluminum Products Pneumatic Spot Welding Machine / Copper Projection Welding




    Aluminum Products Pneumatic Spot Welding Machine / Copper Projection Welding

    Aluminum Products Pneumatic Spot Welding Machine / Copper Projection Welding
