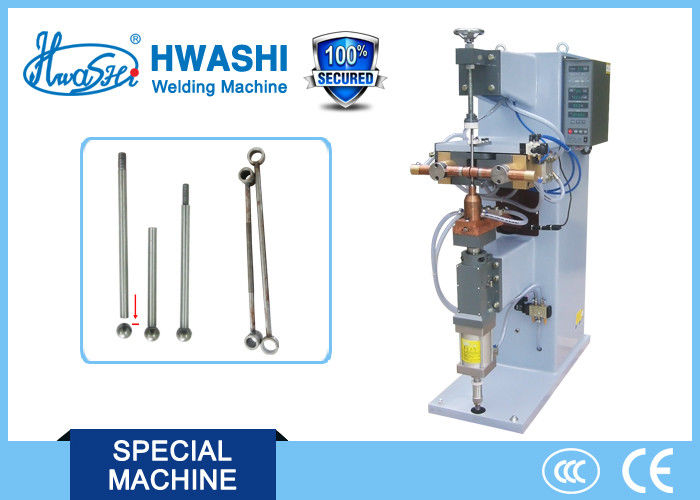

Horizontal Auto Parts Welder / Stabilizer Link Spot Welding Machine , Double Head Projection Welder

Horizontal Auto Parts Welder / Stabilizer Link Spot Welding Machine , Double Head Projection Welder

auto welding machine

welding machine components

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-TP-100K

Contact Us

Request A Quote
Product Details
Product Name:
Horizontal Auto Parts Welder / Stabilizer Link Spot Welding Machine , Double Head Projection Welder
Application:
Welding Of Stablizer Link
Size:
1260mmx2230mmx1460mm
Weight:
1560kg
Output Current:
40000A
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

Horizontal Auto Parts Welder / Stabilizer Link Spot Welding Machine , Double Head Projection Welder



DESCRIPTION



The shaft part would be clamped by cylinders while the bushing part will be located in the lower fixture. The lower fixture will be designed to match the bushing in order to ensure the effective conductivity of welding current. After starting the welding, the cylinder will clamp the shaft, then the lower fixture will rise up to welding.

According to the welding characteristics, welding intensity and welding outlook of the work piece, the machine will be designed as follows,







SPECIFICATION

Model

Input Voltage

Input Power

Output Current

Cylinder Diameter

TP-100-50K

380V

50K

19500A

100mm

WL-TP-75K

380V

75K

24000A

100mm

WL-TB-100K

380V

100K

34000A

125mm



APPLICATION



Suitable for welding stabilizer link, automobile connecting rod, push rod, shifting fork, etc.



MATERIAL CONFIGURATION



  1. Adopt silicon controlled from IXYS of United Stated with high precision and long service life.
  2. Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.
  3. Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system. Clear interface, easy operation, and stable performance.
  4. Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within ±15%. Prompt current compensation to ensure the stable welding current of power source.
  5. Adopt Taiwan TECO servo motor with powerful strength, high precision and stable control.
  6. Adopt South Korea SANWO pneumatic components with stable performance.
  7. The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity. Less power consumption, more powerful and stable capacity.
  8. Strictly comply with CE security standard to design the machine. Lower the accident rate.





COMPETITIVE ADVANTAGE



1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.



2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.



3. Keep the tip taper and holder taper clean, smooth  and free of foreign deposits.



4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.



5. Quick Delivery: Our company provides just-in-time delivery.



6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







          Horizontal Auto Parts Welder / Stabilizer Link Spot Welding Machine , Double Head Projection Welder 0



                                   Horizontal Auto Parts Welder / Stabilizer Link Spot Welding Machine , Double Head Projection Welder 1



          Horizontal Auto Parts Welder / Stabilizer Link Spot Welding Machine , Double Head Projection Welder 2

          Horizontal Auto Parts Welder / Stabilizer Link Spot Welding Machine , Double Head Projection Welder 3

          Horizontal Auto Parts Welder / Stabilizer Link Spot Welding Machine , Double Head Projection Welder 4

          Horizontal Auto Parts Welder / Stabilizer Link Spot Welding Machine , Double Head Projection Welder 5
