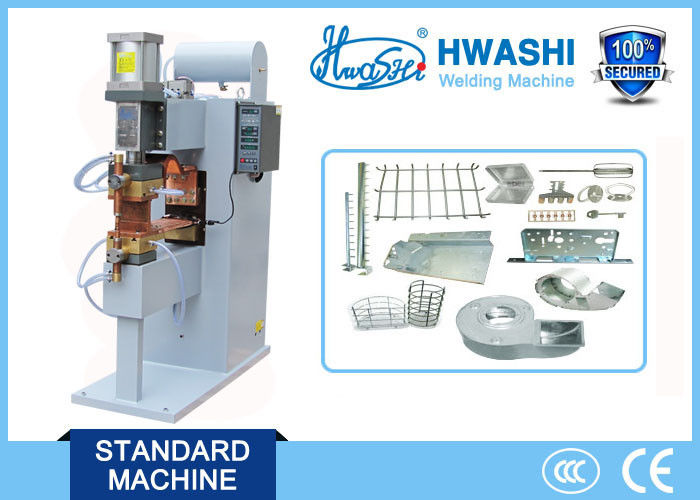

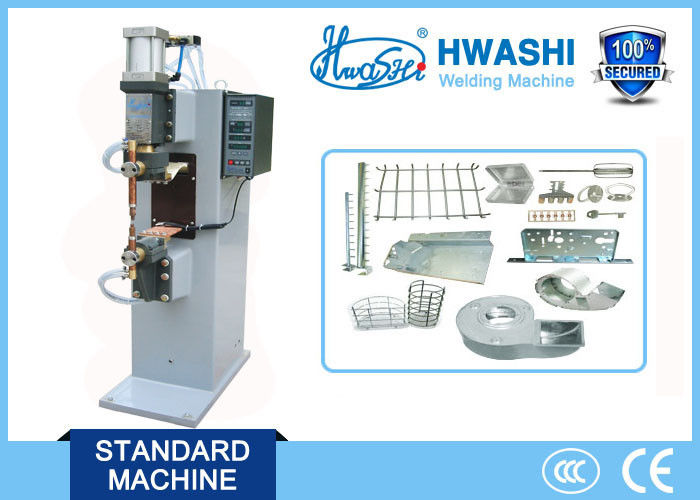

Press-Type and Projection-Type Pneumatic Resistance Spot Welder

Press-Type and Projection-Type Pneumatic Resistance Spot Welder

    • Press-Type and Projection-Type Pneumatic Resistance Spot Welder
    • Press-Type and Projection-Type Pneumatic Resistance Spot Welder
  • Press-Type and Projection-Type Pneumatic Resistance Spot Welder

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-SP-75K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Press-Type & Projection-Type Pneumatic Resistance Spot Welder Application: Welding Iron , Steel Metal Product
    Size: 600x1500x1700mm Weight: 300kg
    Condition: New Warranty: 12 Months
    Standard: CE/CCC/ISO Service Life: 8-10 Years

    Press-Type and Projection-Type Pneumatic Resistance Spot Welder





    SPECIFICATION



    Model

    Voltage

    Power

    Secondary

     Current

    Pressurization

    Electrode

      Stroke

    Closure

    Platform

    Distance

    Electrode

    Distance

    Cooling

    Water



        V

      KVA

           A

            Kg

         mm

        mm

        mm

         mm

     Lit/min

    WL-SP-75K

      380

       75

       24000

          1000

         100

    130-230

        260

     490-540

         6







    APPLICATION

    Welding of all kinds of metal product, wire product, etc.





    FEATURE

    1. Heavy Duty welded Steel Frame.
    2. Air Operated.
    3. Operator selectable Single/Double Stage Footswitch.
    4. Convenient manually operated Tip  Alignment Valve for quick set-up.
    5. Rugged Ram design provides positive alignment and trouble free life.
    6. Solid Copper Arms with Steel End Caps.
    7. Ejector-type water-cooled Electrode Holders with Tips.
    8. Wide range of Standard and Optional Controls.





    DESCRIPTION

    This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.



    The power of the pneumatic AC pulse spot welder that we produce is from 3KVA to 600KVA. It can be used to weld 10mm of iron and metals like stainless steel. Applicable to all kinds of hardware.



    Press-Type and Projection-Type Pneumatic Resistance Spot Welder









    COMPETITIVE ADVANTAGE

    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Quick Delivery: Our company provides just-in-time delivery.

    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







              Press-Type and Projection-Type Pneumatic Resistance Spot Welder





                                                             Press-Type and Projection-Type Pneumatic Resistance Spot Welder



       Press-Type and Projection-Type Pneumatic Resistance Spot Welder
