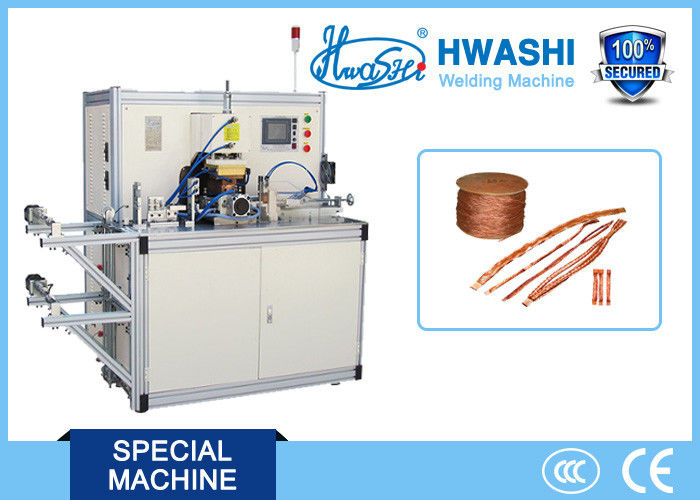

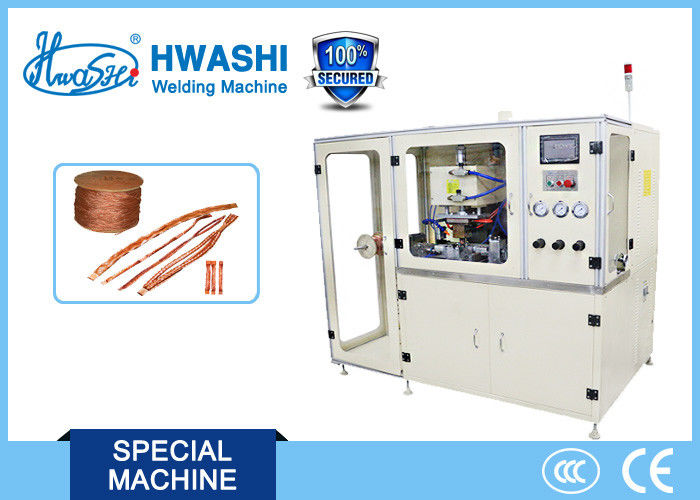

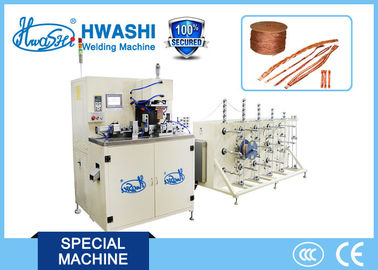

200kva Intermediate Frequency Electric Welder DC Copper Braided Wire Welding And Cutting

200kva Intermediate Frequency Electric Welder DC Copper Braided Wire Welding And Cutting

    • 200kva Intermediate Frequency Electric Welder DC Copper Braided Wire Welding And Cutting
    • 200kva Intermediate Frequency Electric Welder DC Copper Braided Wire Welding And Cutting
    • 200kva Intermediate Frequency Electric Welder DC Copper Braided Wire Welding And Cutting
  • 200kva Intermediate Frequency Electric Welder DC Copper Braided Wire Welding And Cutting

    Product Details:

    Place of Origin: China
    Brand Name: HWASHI
    Certification: CE/CCC/ISO
    Model Number: WL-TP-MF200K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: sea worthy wooden package
    Delivery Time: 7-30 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: 200KVA Intermediate Frequency DC Copper Braided Wire Welding And Cutting Machine Application: Welding And Cutting Copper Braided Wire
    Size: 2500x1300x1700mm Weight: 2000kg
    Condition: New Warranty: 12 Months
    Standard: CE/CCC/ISO Service Life: 8-10 Years



    200kva Intermediate Frequency Electric Welder DC Copper Braided Wire Welding And Cutting



    DESCRIPTION

    This machine is designed to complete the process of welding and cutting automatically as per customer requirement.



    The shape of welding and length of cutting could be adjusted through program. The welding length is 60-100mm (adjustable). It can weld 4- 14 wires. The dimension of welding (width and length) is maximum 8x10mm and minimum 4x4.5mm (adjustable).



    Through the feeding system-wire output wheel, the braid wire enters into the welding center to complete the process of feeding wire. Then the wire output system stop working, the welding forming device start working to press the wire on the preset position. The cylinder will press down to complete the welding. Next, the stay wire cylinder start to output the wire to preset length. When reaching the preset value, the cutting device starts cutting the wire. At last, the stay wire cylinder starts to pull out the completed wire and put it into the discharging box.



    FEATURES

    1. The key point of design is the welding power source. Since area of the wire after welding is large, the three-phase secondary rectifying power source is adopted to ensure the stability of welding. It can output direct current to weld.
    2. The slide way is controlled by the feeding cylinder. The speed of feeding is adjustable while the feeding length could be adjusted randomly through setting the magnet switch.
    3. It contains 14 sets of material feeding plate at most. They could be used randomly according to the requirement of product. The only thing that needs to be done is to adjust the parameter.
    4. Adopt digital PLC control wiring. It is equipped with double functions of automatic protection and correcting. It makes the quality of product stable, reliable and precise in order to ensure the process of full automatic welding.
    5. The max stay wire length is 100mm. The blade adopts cylinder direct drive operation mode.
    6. There is voltage compensation function built-in in the control circuit to ensure the fluctuation of power is within the range of ±15%. It will compensate the current immediately to ensure the stability of welding current.
    7. Good human-machine connector to make the operation interface simple and clear.
    8. There is automatic failure alarming procedure built-in in the system to ensure the percent of pass of product.
    9. Water cooling function can prolong the service life of welding tip so as to guarantee the quality of product.



    TECHNICAL PARAMETERS

    No. Item Parameter
    1 Input Voltage 380V Three-Phase
    2 Input Current 310A
    3 Output Voltage DC11.6V
    4 Max Short Circuit Current 40000A
    5 Welding Models 16 Kinds
    6 Amount Of Material Feeding Plate 14 Sets
    7 Cutting Length 60-100mm
    8 Max Welding Forming Dimension 8x10mm
    9 Min Welding Forming Dimension 4x4.5mm
    10 Feeder Movement Speed 0.5m/Sec
    11 Welding Cylinder 80x2x80mm








    APPLICATION



    Welding of braid wire of electrical parts like distribution switch, disconnector, etc. Be able to weld and cut 1 to 25 mm2 of singlet wire, double wire, and three-wire in one of annealed copper wire.



    The cutting length could be adjusted freely and the cross-section of connecting wire could be designed as different shapes like semi-circle, square, and hexagon, etc.
